NETGEAR WGT624 User Manual

Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
6-14 Advanced Configuration
202-10090-01, April 2005
To reserve an IP address:
1. Click the Add button.

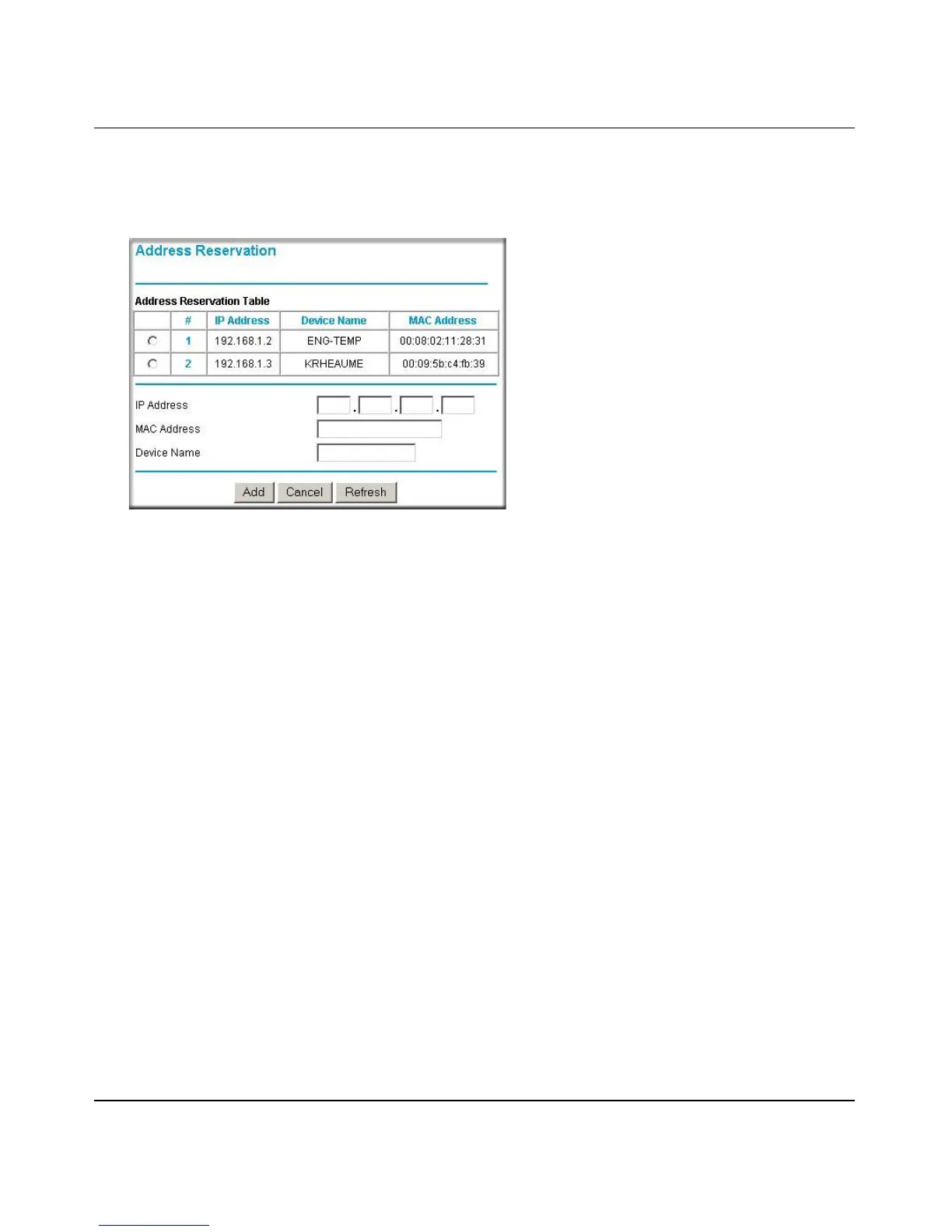

Figure 6-6: Address Reservation screen
2.
In the IP Address box, type the IP address to assign to the PC or server.
(choose an IP address from the router’s LAN subnet, such as 192.168.1.X)
3. Type the MAC Address of the PC or server.
(Tip: If the PC is already present on your network, you can copy its MAC address from the
Attached Devices menu and paste it here.)
4. Click Apply to enter the reserved address into the table.
Note: The reserved address will not be assigned until the next time the PC contacts the router's
DHCP server. Reboot the PC or access its IP configuration and force a DHCP release and renew.
To edit or delete a reserved address entry:
1. Click the button next to the reserved address you want to edit or delete.
2. Click Edit or Delete.

NETGEAR WGT624 Specifications

General

Wireless Standard	802.11g
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x 10/100 Mbps
Standards	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
Wireless Data Rates	Up to 54 Mbps
Security	WPA, WEP
Firewall	SPI Firewall
Weight	270 g
