NETGEAR WGT624 - Page 93

Reference Manual for the 108 Mbps Wireless Firewall Router WGT624 v3
Network, Routing, Firewall, and Basics B-13
202-10090-01, April 2005

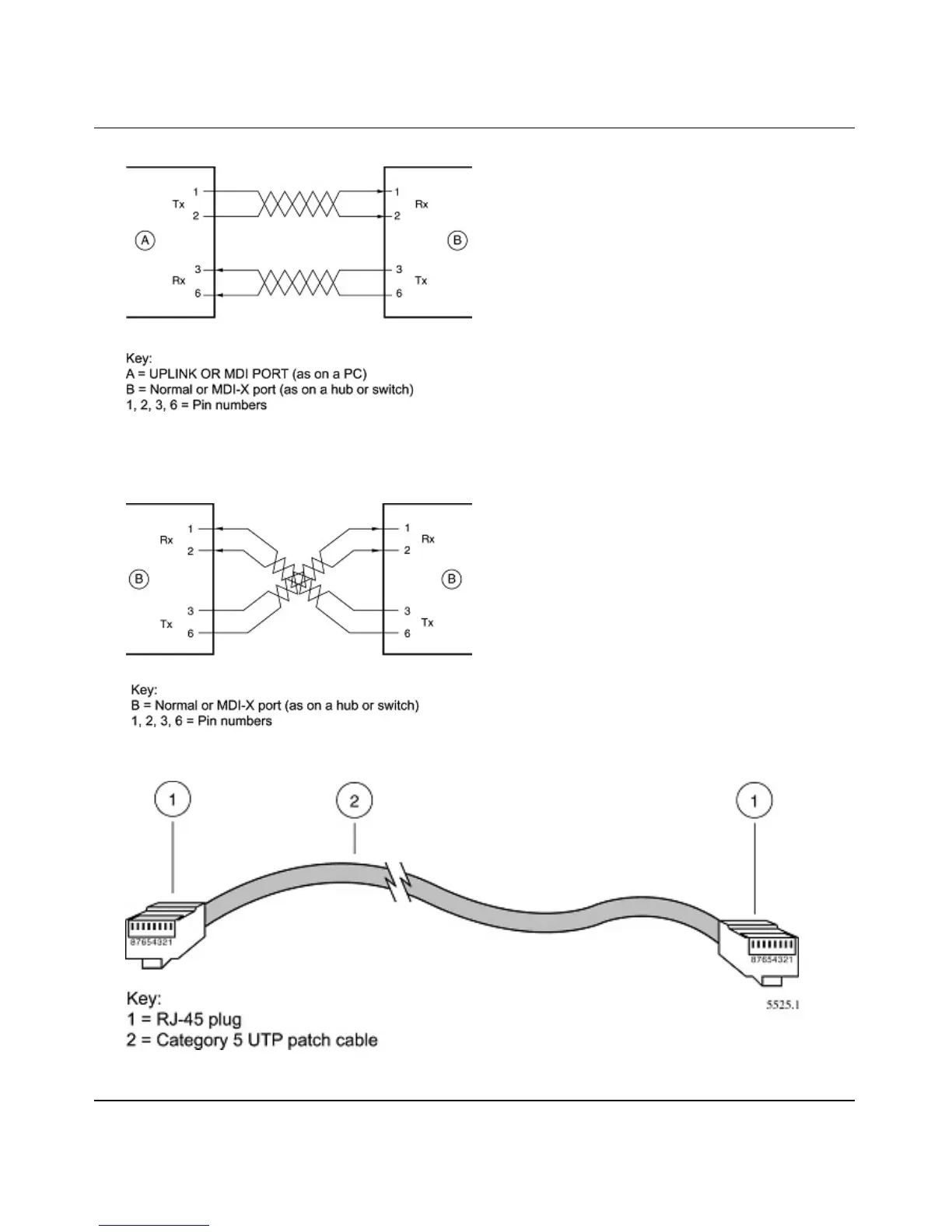

Figure B-1: Straight-Through Twisted-Pair Cable
Figure B-2 illustrates crossover twisted pair cable.
Figure B-2: Crossover Twisted-Pair Cable
Figure B-3: Category 5 UTP Cable with Male RJ-45 Plug at Each End
