NETGEAR WNDR3800 User Manual

Genie Basic Settings
24
N600 Wireless Dual Band Gigabit Router Premium Edition WNDR3800
Attached Devices
You can view all computers or devices that are currently connected to your network here.

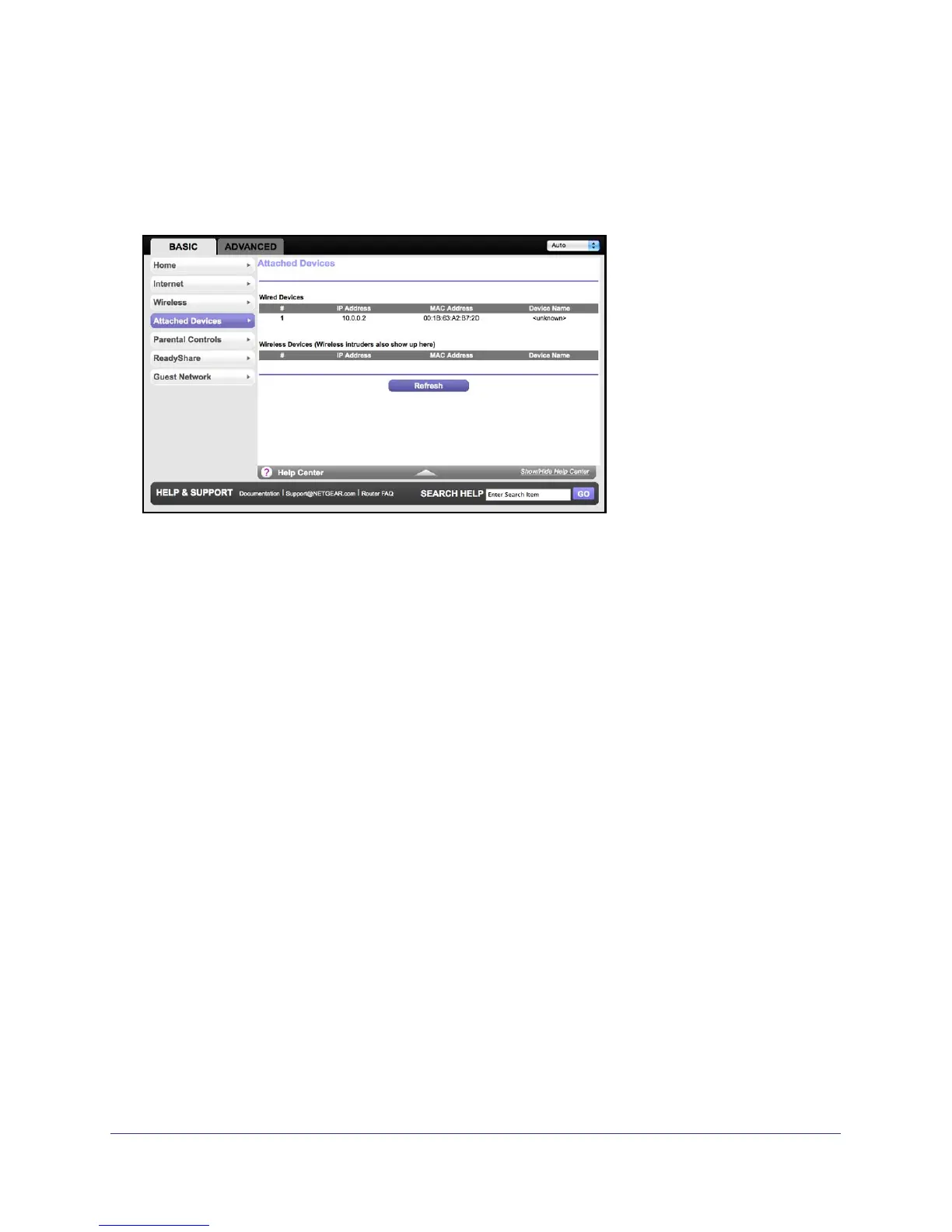

From the Basic Home screen, select Attached Devices to display the following screen:
Wired devices are connected to the router with Ethernet cables. Wireless devices have joined
the wireless network.
• # (number). The order in which the device joined the network.
• IP Address. The IP address that the router assigned to this device when it joined the
network. Note that this number can change if a device is disconnected and rejoins the
network.
• MAC Address. The unique MAC address for each device does not change. The MAC
address is typically shown on the product label.
• Device Name. If the device name is known, it is shown here.
You can click Refresh to update this screen.

NETGEAR WNDR3800 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	5 GHz
Interface	USB
Weight (imperial)	1.2 lbs
Dimensions (WxDxH)	223 x 153 x 31 mm
USB ports quantity	1
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4
Compatible operating systems	- Windows 7, Vista, XP, 2000 - Mac OS - UNIX - Linux
Dimensions (W x D x H) (imperial)	8.8 x 6 x 1.2 \
DHCP client	-
Supported network protocols	IPv6
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Authentication method	WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports	5
Flash memory	16 MB
Certification	RoHS
Internal memory	128 MB
Cables included	LAN (RJ-45)
Product color	Black

Weight and Dimensions

Weight	5000 g
