NETGEAR WNDR3800 User Manual

USB Storage
60
N600 Wireless Dual Band Gigabit Router Premium Edition WNDR3800

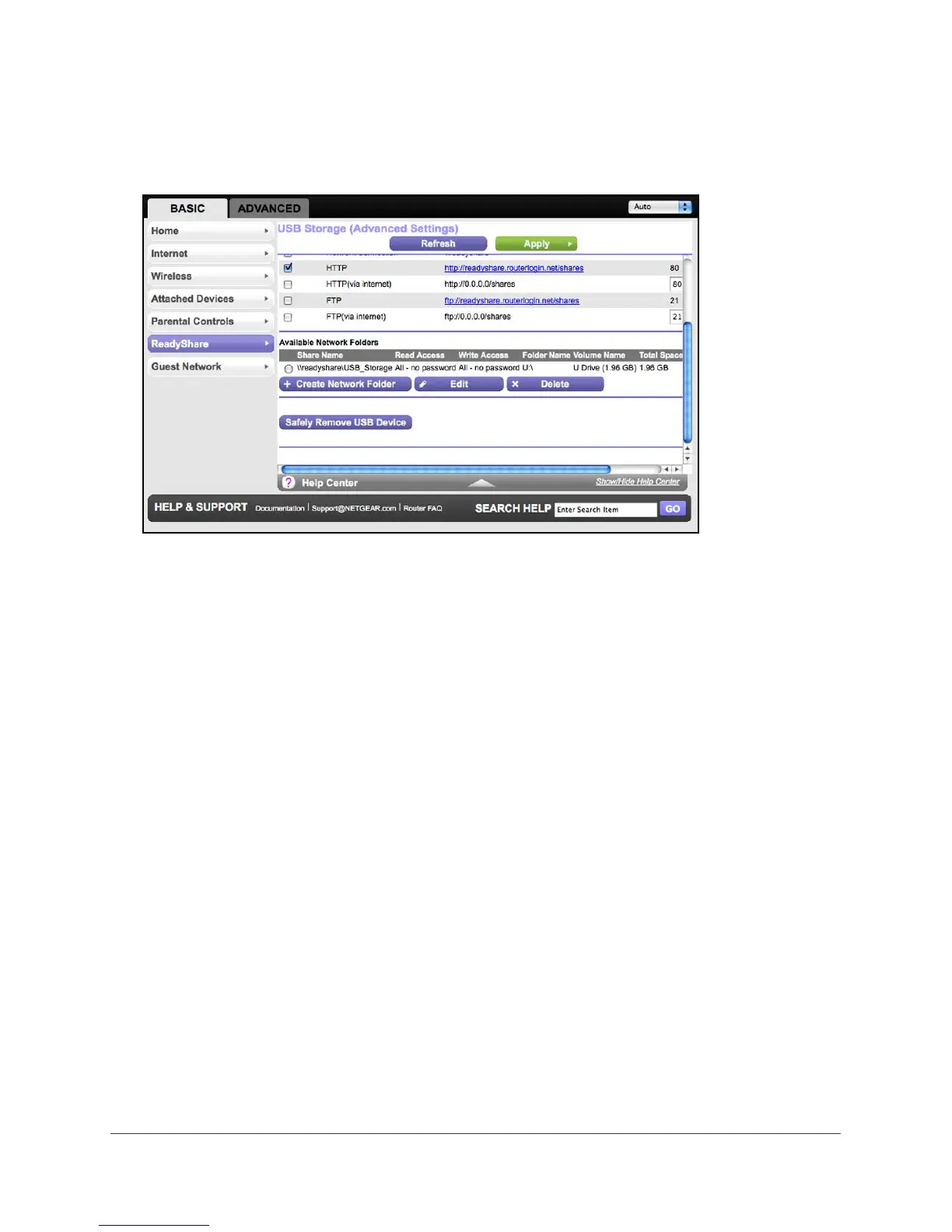

Available Network Folders
You might need to scroll down to view this section of the screen:
• Share Name. If only 1 device is connected, the default share name is USB_Storage. You
can click the name shown or you can type it in the address field of your Web Browser. If
Not Shared is shown, the default share has been deleted and no other share for the root
folder exists. Click the link to change this setting.
• Read/Write Access. Shows the permissions and access controls on the network folder:
All - no password (the default) allows all users to access the network folder. The
password for admin is the same one that you use to log in to the router.
• Folder Name. Full path used by the network folder.
• Volume Name. Volume name from the storage device (either USB drive or HDD).
• Total/Free Space. Shows the current utilization of the storage device.

NETGEAR WNDR3800 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	5 GHz
Interface	USB
Weight (imperial)	1.2 lbs
Dimensions (WxDxH)	223 x 153 x 31 mm
USB ports quantity	1
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4
Compatible operating systems	- Windows 7, Vista, XP, 2000 - Mac OS - UNIX - Linux
Dimensions (W x D x H) (imperial)	8.8 x 6 x 1.2 \
DHCP client	-
Supported network protocols	IPv6
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Authentication method	WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports	5
Flash memory	16 MB
Certification	RoHS
Internal memory	128 MB
Cables included	LAN (RJ-45)
Product color	Black

Weight and Dimensions

Weight	5000 g
