NETGEAR WNDR3800 User Manual

Security
70
N600 Wireless Dual Band Gigabit Router Premium Edition WNDR3800

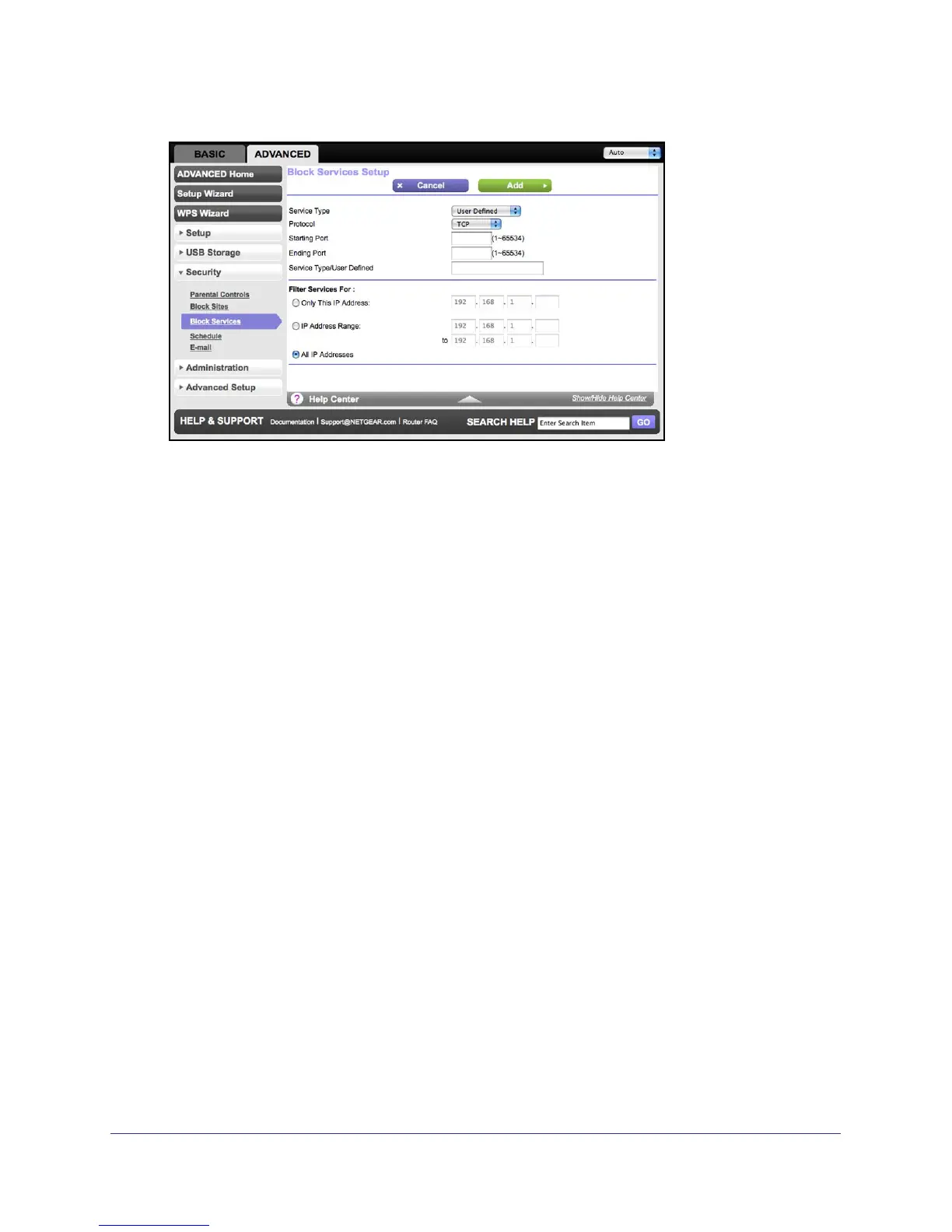

4. From the Service Type list, select the application or service to allow or block. The list already
displays several common services, but you are not limited to these choices. To add any
additional services or applications that do not already appear, select User Defined.
5. If you know that the application uses either TCP or UDP, select the appropriate protocol. If
you are not sure, select Both.
6. Enter the starting and ending port numbers. If the application uses a single port number,
enter that number in both fields.
7. Select the radio button for the IP address configuration you want to block, and enter the IP
addresses. You can block the specified service for a single computer, a range of computers
with consecutive IP addresses, or all computers on your network.
8. Click Add to enable your Block Services Setup selections.

NETGEAR WNDR3800 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	5 GHz
Interface	USB
Weight (imperial)	1.2 lbs
Dimensions (WxDxH)	223 x 153 x 31 mm
USB ports quantity	1
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4
Compatible operating systems	- Windows 7, Vista, XP, 2000 - Mac OS - UNIX - Linux
Dimensions (W x D x H) (imperial)	8.8 x 6 x 1.2 \
DHCP client	-
Supported network protocols	IPv6
Security algorithms	WEP, WPA-PSK, WPA2-PSK
Authentication method	WEP, WPA, WPA2
Ethernet LAN (RJ-45) ports	5
Flash memory	16 MB
Certification	RoHS
Internal memory	128 MB
Cables included	LAN (RJ-45)
Product color	Black

Weight and Dimensions

Weight	5000 g
