C70 Digital Readout System

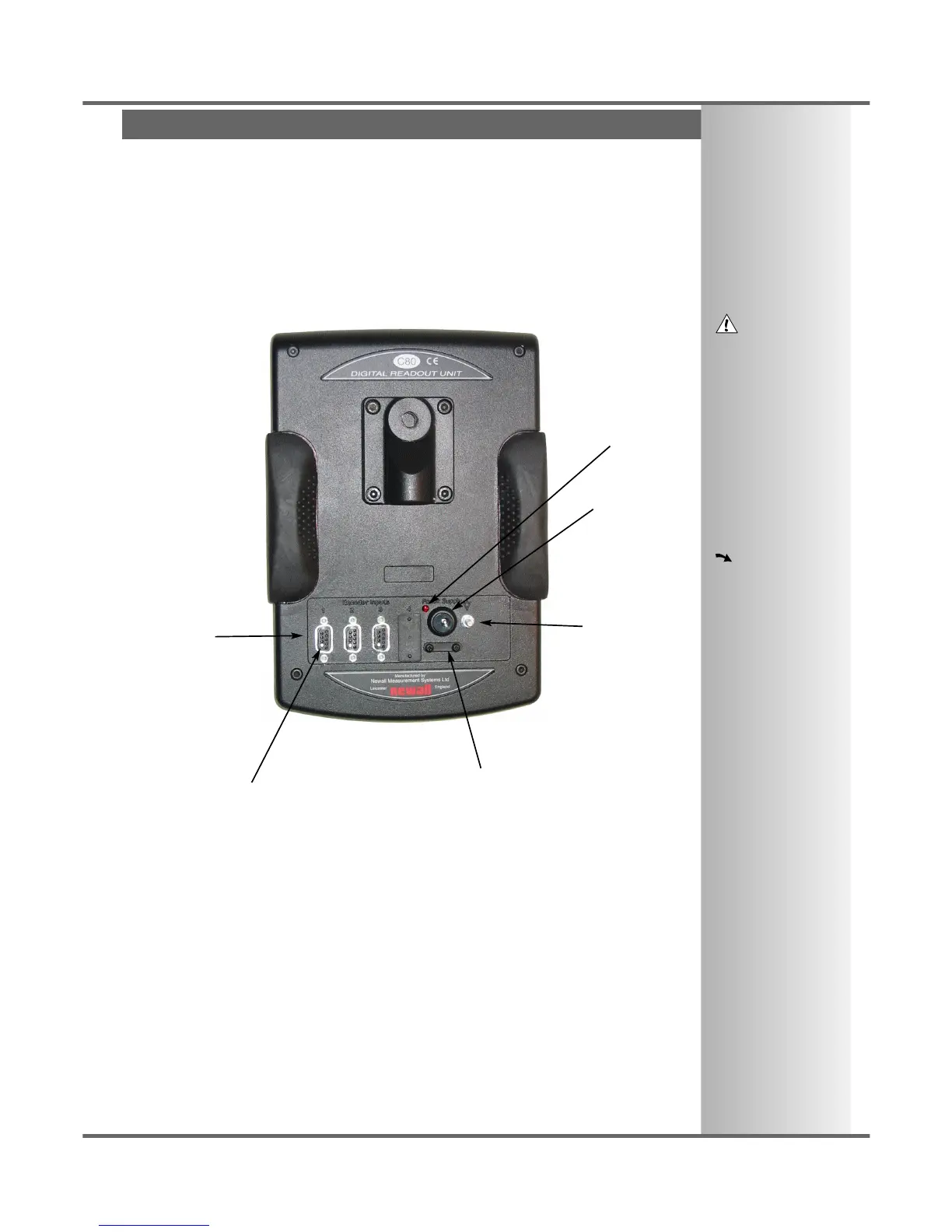

CONNECTIONS
Newall Measurement Systems Ltd 3
NOTES
DO NOT CONNECT
THIS UNIT DIRECTLY
TO THE MAINS SUPPLY.
If you have a Newall
encoder which is not
fitted with D-type
connector, an adaptor
cable is available.
Part No. 307-80980
Contact your supplier for
details.
2.5mm
Power Inlet
19 Vdc ±10%
@0.25A
Power
Indicator
Lamp
Encoder Inputs
9-way ‘D’
(All plugs should be
screwed finger tight)
Equipotential
Terminal
(Should be
grounded to
machine)
Cable Anchor
(The power cable
should be secured)
• The C70 is suitable for use only with Newall Spherosyn and Microsyn analogue encoders.
• Ensure that all cables are secured to prevent the connectors from dropping into hazardous
positions when unplugged, for example the floor or coolant tray.
• Ensure that all cables are routed to prevent them from being caught on moving parts.
• Turn off the power before connecting the encoder, by disconnecting the power supply connector.
• Ensure that the C70 is grounded to the machine before turning on the machine supply.
CONNECTIONS
Blanking Plug
(Do not remove
blanking plugs,
Which are used to
prevent accidental
connection of
incorrect encoders)
