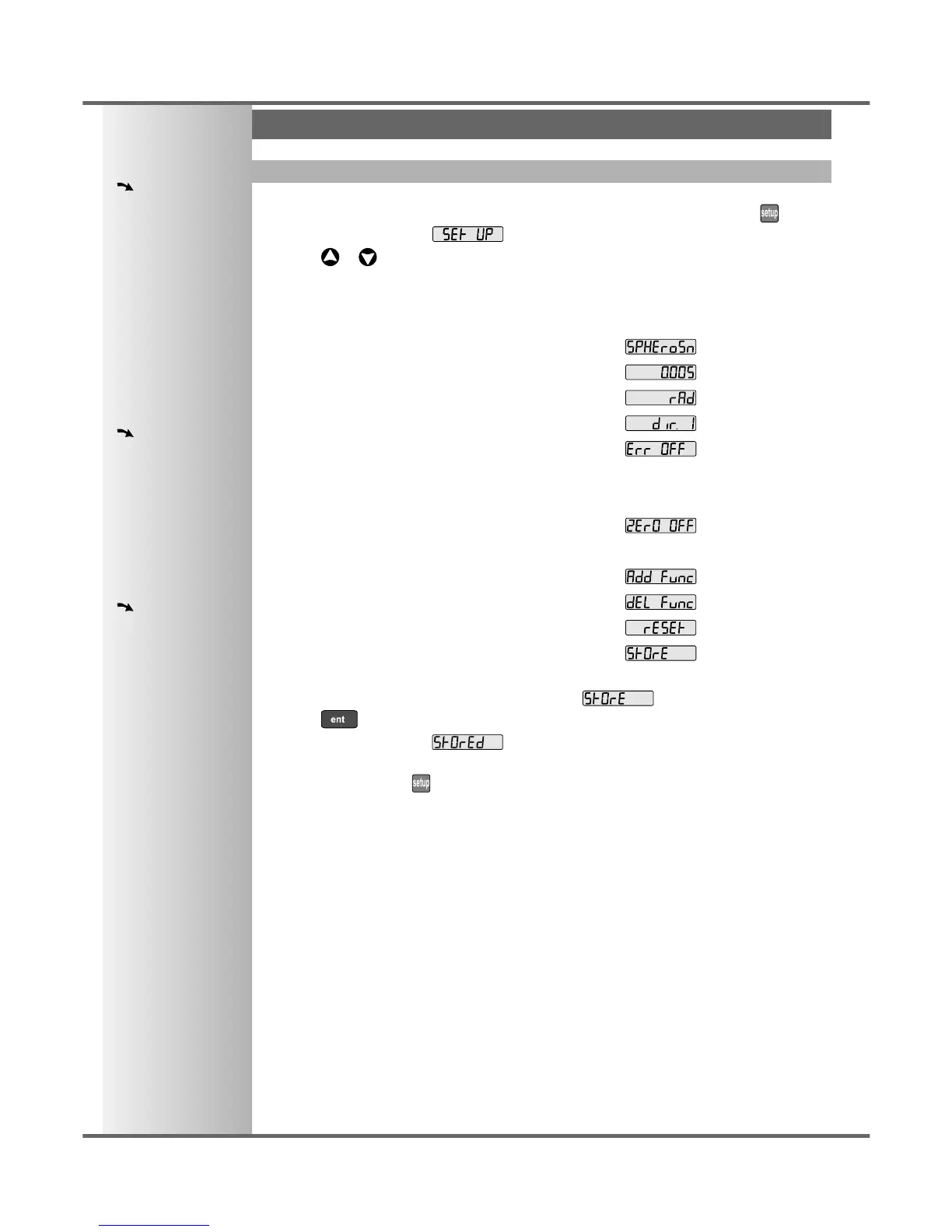

SETUP
Using Setup Mode
SETUP, Using Setup Mode C70 Digital Readout System
NOTES
Normally, Setup needs to
be done only once, and it
is possible that the
factory default settings
will be suitable and will
not require change.
1
Not all options will be
present, depending on
the setting of other
options.
For example, the Zero
Approach Limit option
will not be present if
Zero Approach is turned
off.
2
The Add Function and
Delete Function options
allow for the download
of programmable
functions from a PC,
connected to the C70 via
a serial lead connected to
Axis 1. The serail lead is
an option and can be
ordered seperately, if
required using Part No.
307-80990. Please
contact Newall for
pricing information
Newall Measurement Systems Ltd8
• To enter Setup Mode, first exit from any Special Function that is running, then press .
The centre display shows .
• Press or to cycle up and down the list of options.
The options are listed below, and each is described in detail on the following pages.
Option Default Display
Encoder Type all axes: Spherosyn
Encoder Resolution all axes: 0.005mm
Radius / Diameter all axes: Radius
Direction all axes: 1
Error Compensation all axes: Off
Linear Compensation see note 1
Segmented Compensation see note 1
Zero Approach On / Off all axes: Off
Zero Approach Limit see note 1
Add Function see note 2
Delete Function see note 2
Reset
Store
• When you have finished setting all the options, select .
Press to store any changes made.
The middle display shows for a few seconds, as your settings are stored.
The C70 exits from Setup Mode.
• Alternatively, pressing at any time will exit from Setup Mode and abandon any changes.
