Mill Functions

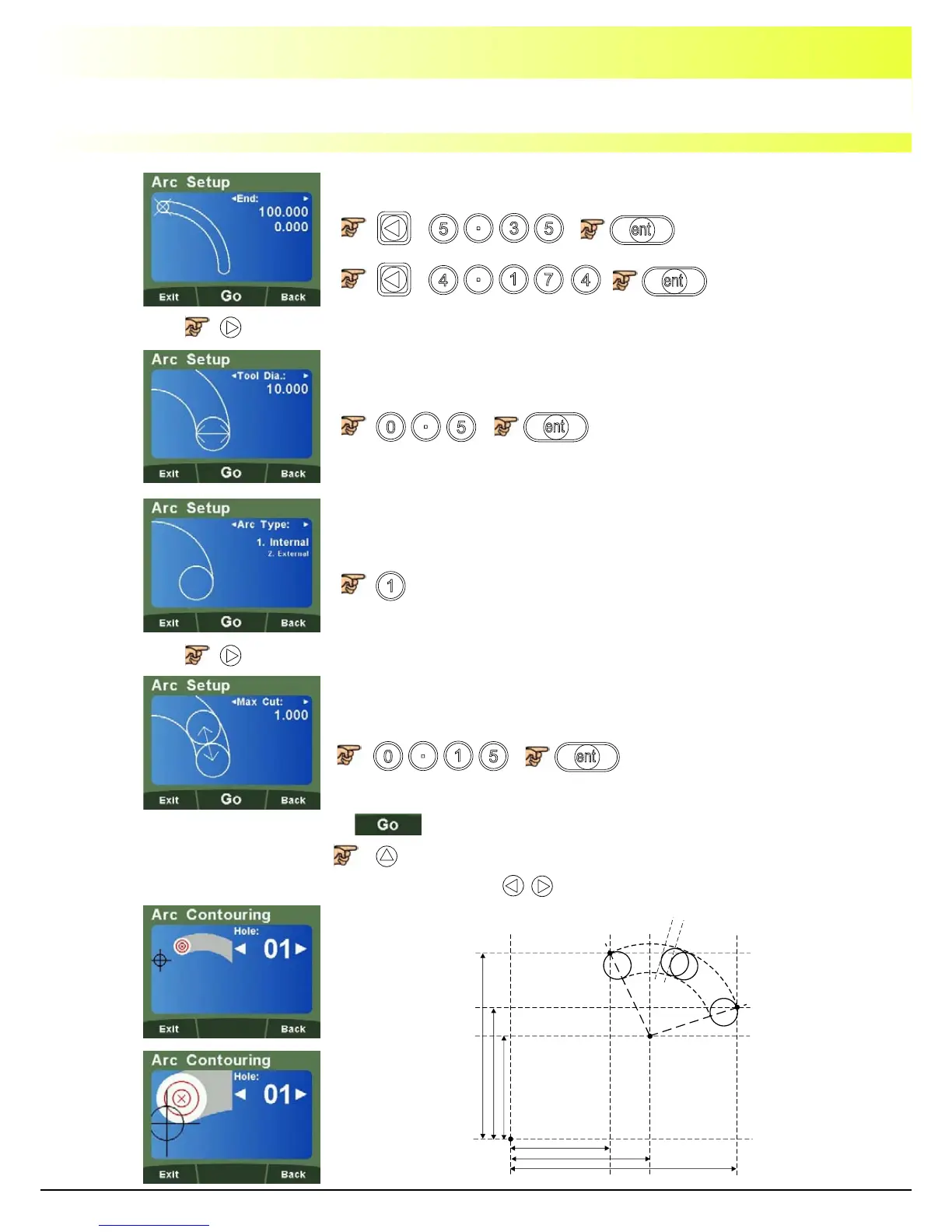

Arc Contouring (Continued)
40
Enter coordinates for ending point of arc.
Enter the tool diameter to be used.
Select the appropriate arc type. For this example, we will select internal.
Enter the maximum cut required.
To start the arc feature;
Y axis
Starting Point
Ending
Point
Datum
X axis
Arc
Centre
Radius
0.5” Tool
Diameter
Internal
Cut
Maximum
Cut
0.15”
4.826”
4.174”
2.36”
2.7”
2.25”
3.35”
5.35”
Navigate through the sequence of points using the keys.
