Lathe Functions
Taper Angle
47

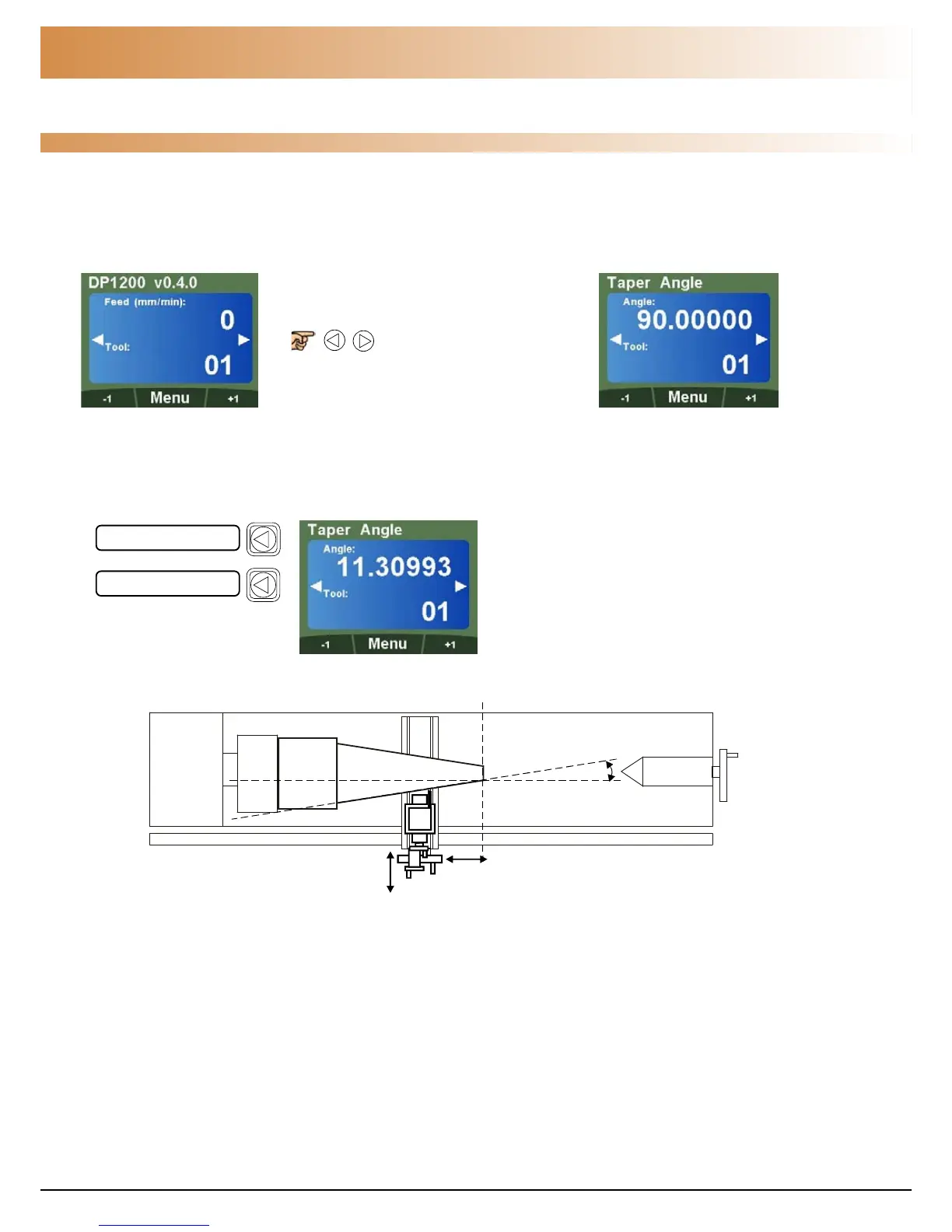

The Taper Function shows the angular displacement of the displayed position. Axis 1 and 2 are used
for this function. The taper function ignores the parameter setting for the plane.
The example below demonstrates its operation.
until the display shows
Touch the tool to one end of the taper and zero both axes, then touch the tool at the other end of the
taper. The message window will now display the taper angle, as shown below;
50.00mm
10.00mm
10.000
50.000
