Mill Functions
Arc Contouring
39
The DP1200 calculates positions for rough machining of an arc or radius. The message display
prompts the user for parameters needed to complete the calculations.
Once parameters are entered, the DP1200 shows the co-ordinates, which are point to point positions
along the arc. The operator works to zero for each hole location. See example below.
The arc feature is dependant on the Plane setting for the axes it will operate in (See Page 24 - Plane
Setup).

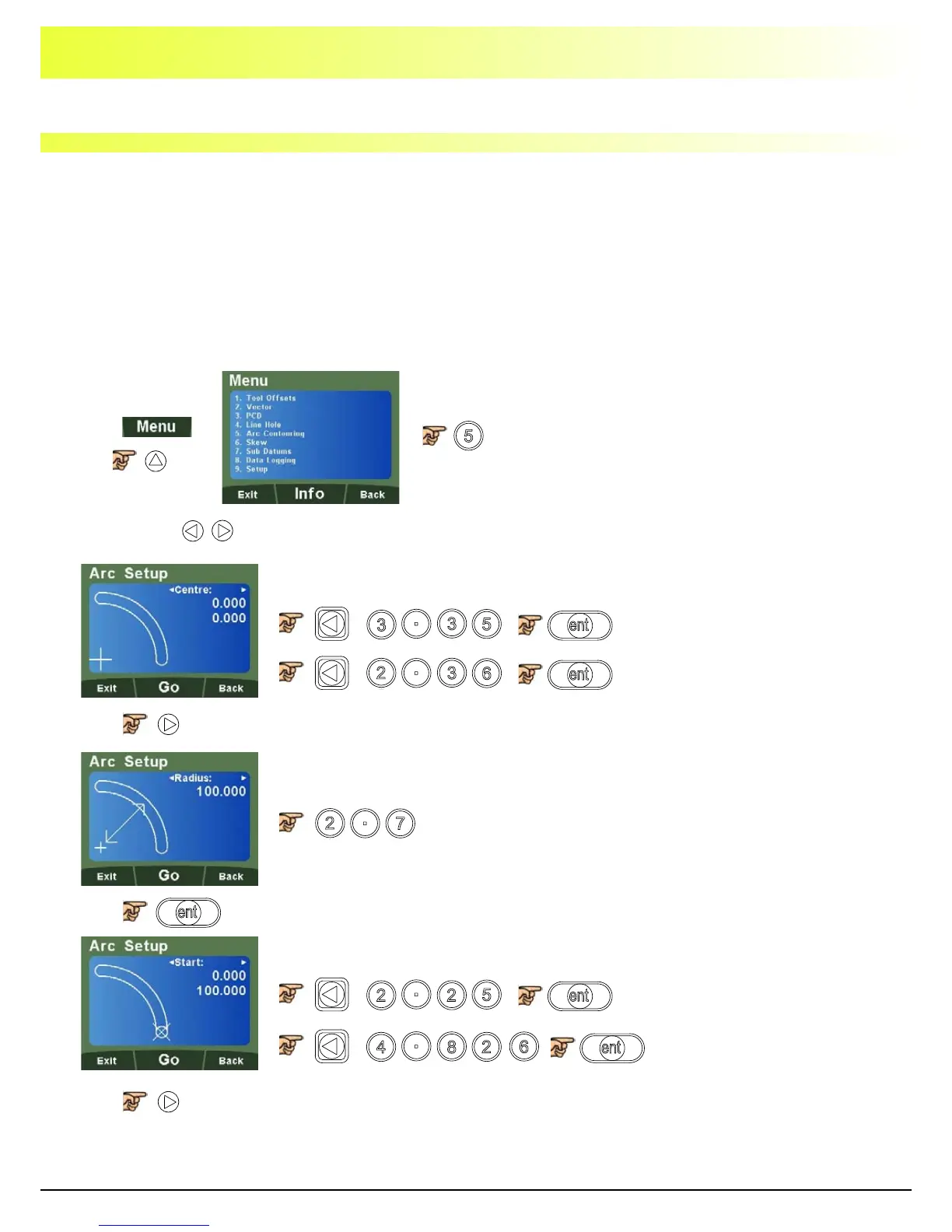

To select Arc Contouring
Note: Use the keys to navigate through the parameters.
Enter coordinates for the center of the arc.
Enter the radius dimension.
Enter coordinates for starting point of arc.
