Newall dp1200 - Axis Summing

Lathe Functions
Axis Summing
48

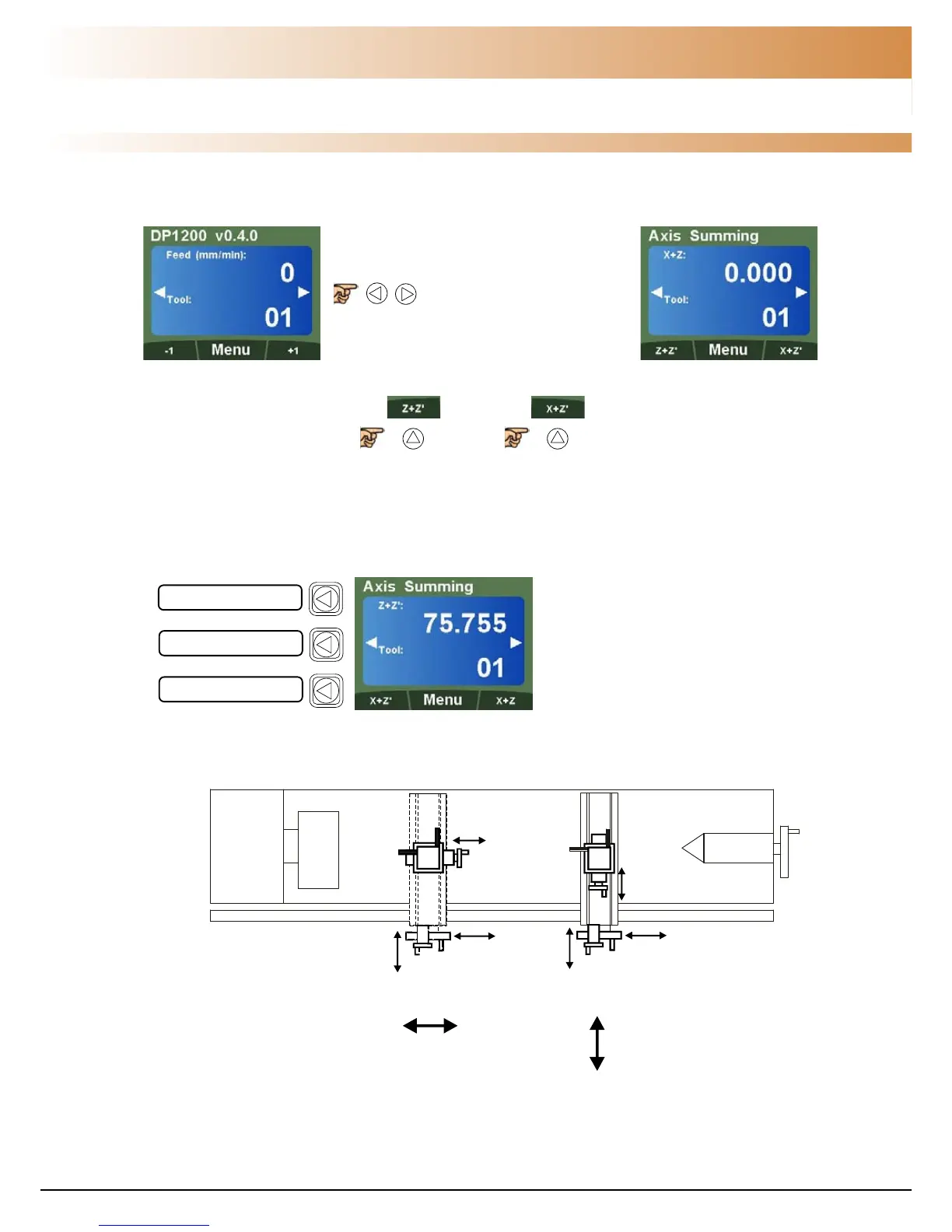

The Summing Function allows the sum of the two selected axes to be displayed. Axis 4 is not used
with this function. See Axis Coupling Setup (Page 24) for details on using Axis 4.
until the display shows
Select the required plane
The un-summed position data will be shown in the axis window.
The summed position will be shown in the LCD display.
102.225
50.000
25.755
Combined Movement
Z + Z
1
Combined Movement
X + Z
1
