31

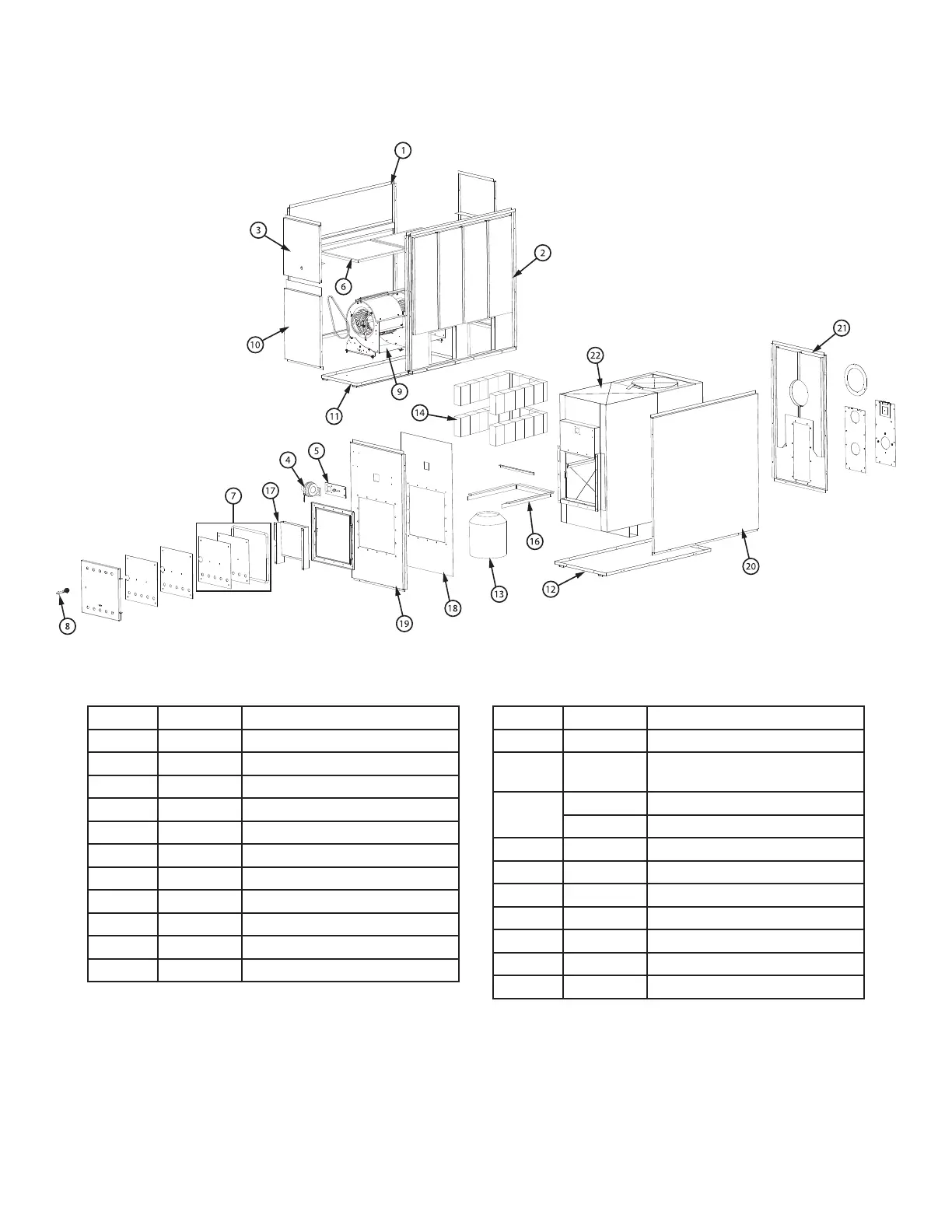

Figure 18-1A - CL115-170C WOOD/OIL COMBINATION FURNACE ASSEMBLY
Figure 18-1B - PARTS LIST – CL115-170C
ITEM NO
PART NO DESCRIPTION
1
610589 Blower Section Side Panel
2 610590 Fan Partition Panel
3 610592 Blower Section Small Panel
4 D2040001 50 CFM Draft Fan
5 D5300012 Slide Plate Assembly
6 D2180003 Filter 20" X 25" X 1"
7 D5300007 Firedoor Gasket Set
8 D5300009 Firedoor Handle Complete
9 D2040104 10” Air Circulating Twin Blower
10 28105 Blower Section Access Panel
11 610591 Blower Section Base Panel
12 D4120409 Furnace Section Base Panel
13 D2030001 Corbel Combustion Chamber
14 D5110003
Straight Brick 2 - 1/2” X 4 - 1/2”
X 9”
15
D5400047 Aero Burner (not shown)
D2110128 Beckett Burner (not shown)
16 D4060101 Brick Loc
17 D4060114 Firedoor Air Chute
18 D2080009 Front Gasket
19 D4120116 Furnace Section Front Panel
20 D4120213 Furnace Section Side Panel
21 D4120103 Furnace Section Back Panel
22 D4060134 Heat Exchanger
