ITEM F3 & F5
PART NUMBER
BURNER MODEL
DESCRIPTION
RIELLO NEWMAC
F3 F5
10 C7010002 D2090043 X X O-ring - pump cover
20 3002279 X X Solenoid Coil
21 3007802 D2060007 X X Pump
23 3005843 X X Motor
25 3002280 D2010045 X X Photo cell
26 C7001029 D2010048 X X Primary control 530 SE/C
28 3005855 X X Universal mounting ange
29 3005856 D2080058 X X Mounting gasket
33 3007204 X X Manual Air Shutter
35 3005844 D2090041 X X Capacitor 12.5 Uf
36 3005708 X X Fan
40
C3948874 D2090051 X Blast Tube Assembly
C3948974 D2090046 X Blast Tube Assembly
49
C7001033 D2030016 X X Blast Tube Protector
3007568 X X Bleeder
3006925 X X Valve Stem
C7001013 X X Parts Bag
D2010034 X X 24V Relay, Switching (for Riello)

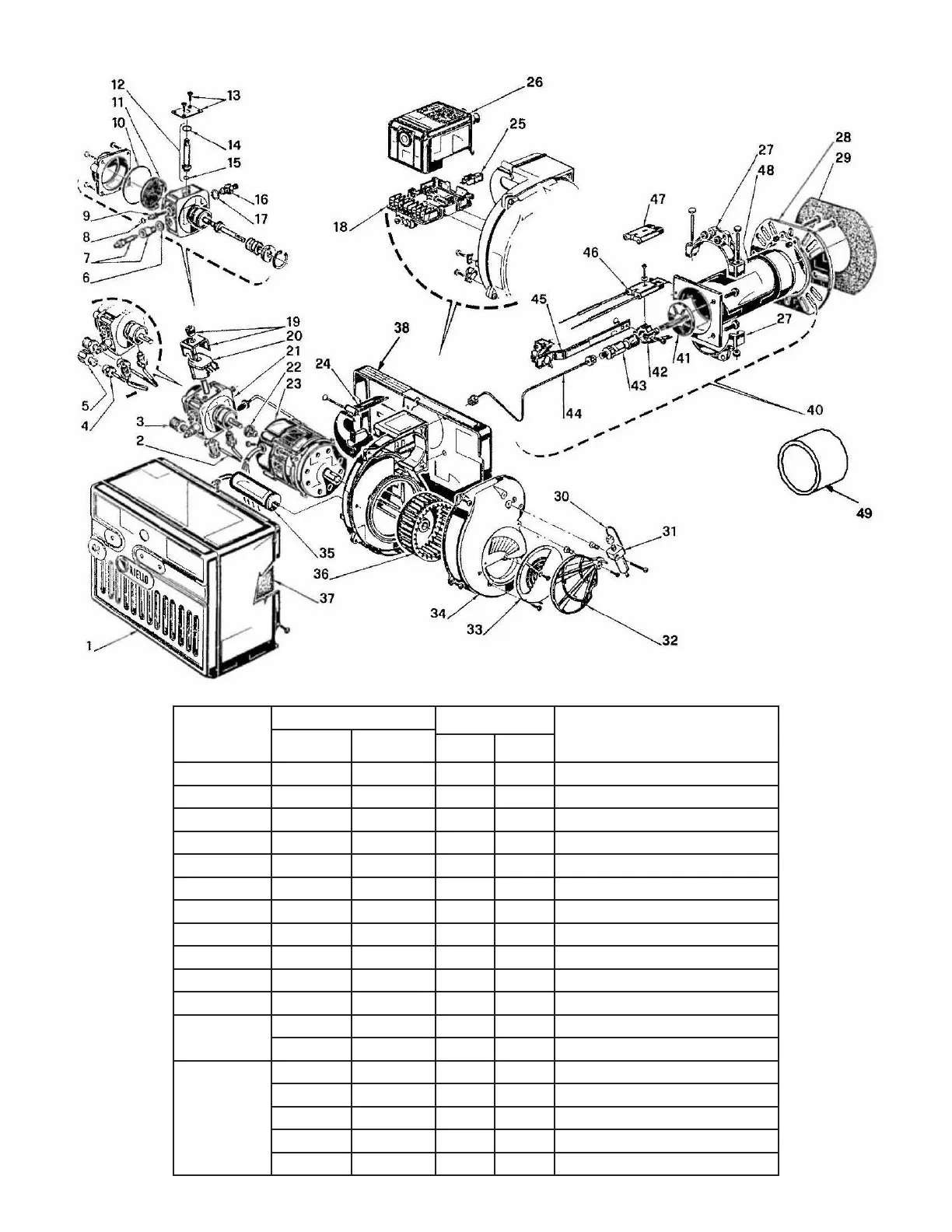

Figure 17-4A - RIELLO F3 & F5 EXPLODED ASSEMBLY
Figure 17-4B - AERO PGB 220-370 GAS BURNER PARTS LIST
