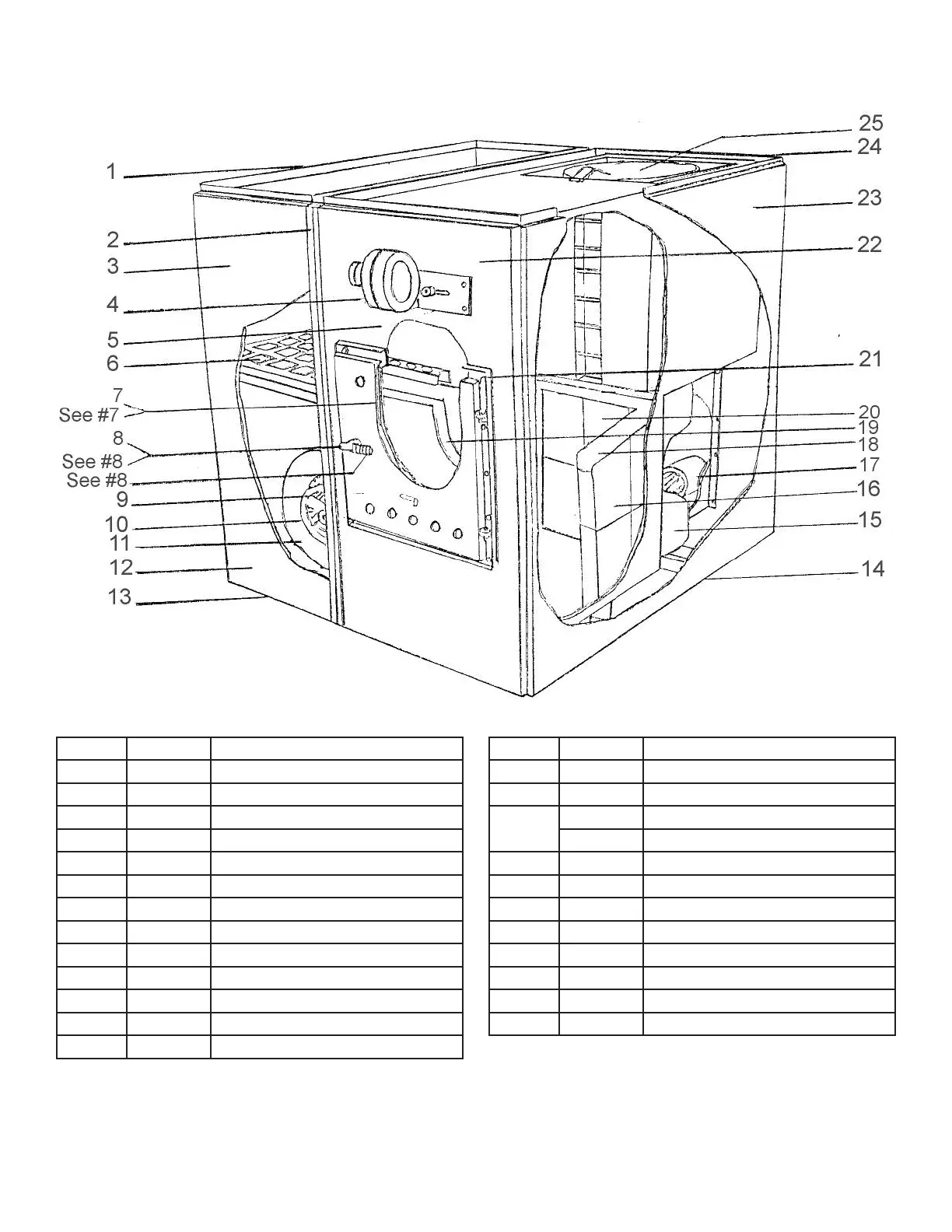

Figure 18-2A - CL86-96C WOOD/OIL COMBINATION FURNACE ASSEMBLY
Figure 18-2B - PARTS LIST – CL86-96C
ITEM NO PART NO DESCRIPTION
1 610594 Blower Section Side Panel
2 610595 Fan Partition Panel
3 28117 Blower Section Small Panel
4 D2040001 50 CFM Draft Fan
5 D5300012 Slide Plate Assembly
6 D2180002 Filter 16" X 25" X 1"
7 D5300005 Firedoor Gasket Set
8 D5300009 Firedoor Handle Complete
9 D5300001 Firedoor Set Complete
10 D2240003 Blower Pulley 8” X 3/4”
11 D2040105 9” Air Circulating Twin Blower
12 28118 Blower Section Access Panel
13 610597 Blower Section Base Panel
14 D4120414 Furnace Section Base Panel
15 D2030004 Corbel Combustion Chamber
16 D5110003 Straight Brick 2 - 1/2” X 4 - 1/2” X 9”
17
D5400048 Aero Burner
D2110126 Beckett Burner
18 D4060106 Brick Loc
19 D4060171 Firedoor Air Chute
20 D5110006 Split Brick 1 - 1/4” X 4 - 1/2” X 9”
21 D2080001 Front Gasket
22 D4120120 Furnace Section Front Panel
23 D4120218 Furnace Section Side Panel
24 D4120104 Furnace Section Back Panel
25 D4060143 Heat Exchanger
