34

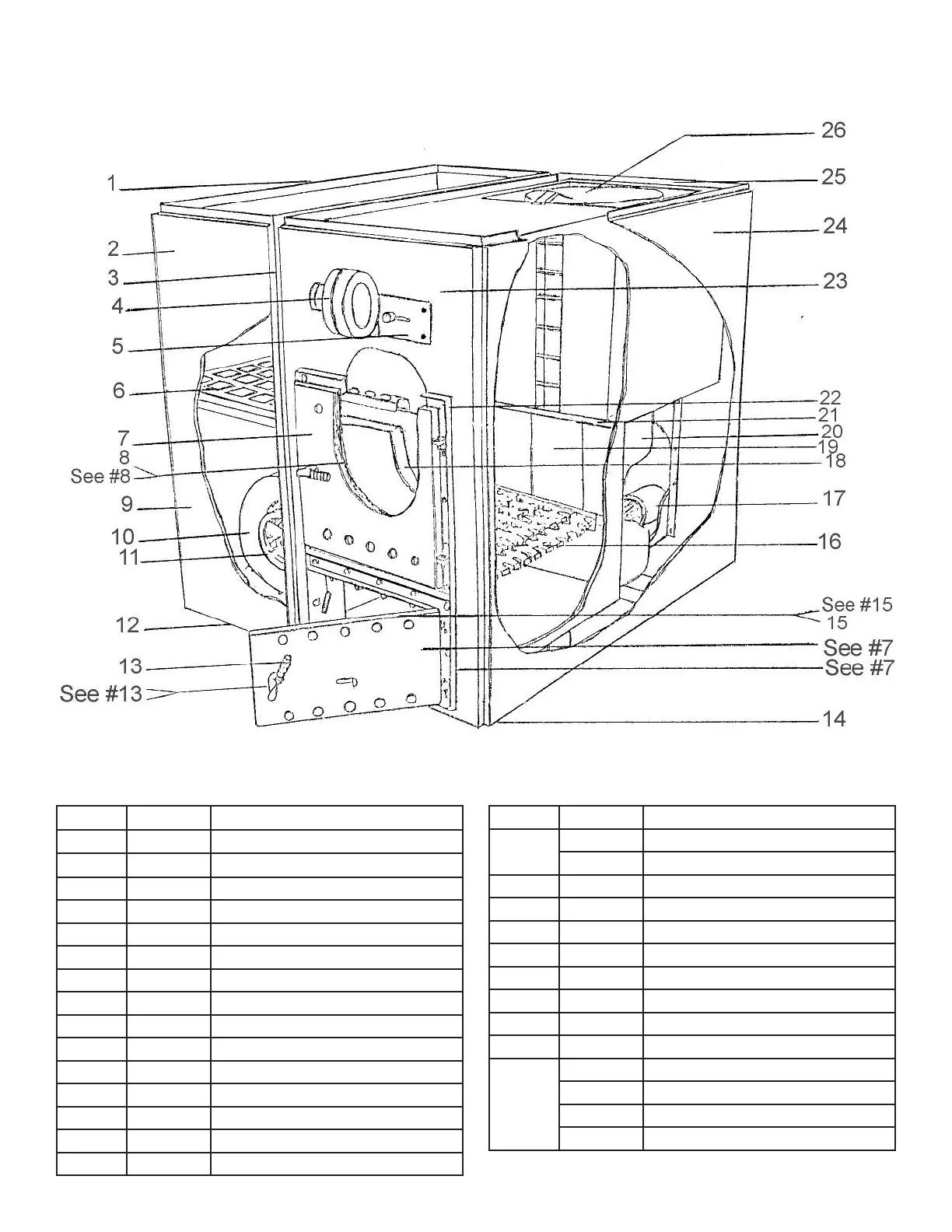

Figure 18-4A - CL86-96G WOOD/OIL COMBINATION FURNACE ASSEMBLY
Figure 18-4B - PARTS LIST – CL86-96G
ITEM NO
PART NO
DESCRIPTION
1
610594
Blower Section Side Panel
2
28117
Blower Section Small Panel
3 610595 Fan Partition Panel
4 D2040001 50 CFM Draft Fan
5 D5300012 Slide Plate Assembly
6 D2180002 Filter 16" X 25" X 1"
7 D5300004 Firedoor/Ashdoor Set Complete
8 D5300005 Firedoor Gasket Set Complete
9 28118 Blower Section Access Panel
10 D2040105 9” Air Circulating Twin Blower
11 D2240003 Blower Pulley 8” X 3/4”
12 610597 Blower Section Base Panel
13 D5300009 Firedoor Handle Complete
14 D4120414 Furnace Section Base Panel
15 D5300006 Ashdoor Gasket Set Complete
16 D2170007 Cast Grate
17
D5400048 Aero Burner
D2110126 Beckett Burner
18 D4060118 Firedoor Air Chute
19 D5110006 Split Brick 1-1/4” X 4 -1/2” X 9”
20 D2030004 Corbel Combustion Chamber
21 D4060106 Brick Loc
22 D2080016 Front Gasket
23 D4120119 Furnace Section Front Panel
24 D4120218 Furnace Section Side Panel
25 D4120104 Furnace Section Back Panel
26
D4060142 Heat Exchanger
D4060127 Ash Pan
D5110003 Straight Brick 2 - 1/2” X 4 - 1/2” X 9”
D3090182 Grate Plate
To Next Page
