Newmac CL 86C - Page 9

9
GRATES
Shipping retainer should be removed to
allow grates to turn and shake freely.
TO REMOVE A GRATE
1. Remove front casting
2. Slide grate as far forward as possible
3. Lift rear end of grate approximately
6 inches
4. Slide grate back toward rear of
rebox and up
TO INSTALL A GRATE
1. With rear end of grate higher than
front end slide grate forward so shaft
is through grate retaining hole at
front of rebox.
2. Lower rear end of grate and slide
rear shaft of grate into rear retaining
hole.
3. Replace front casting if coal is to be
burned.
FRONT CASTING
Use for coal burning only.
Installation in CL86-96G
1. Remove top brick lock
2. Put casting through redoor and
hold tight to inside front of rebox
above the brick. Square pattern on
casting should be facing into the
rebox.
3. Lower casting so it rests on round
shaft of grates.
FRONT CASTING
Use for coal burning only.
Installation in CL115-170G
1. Put casting through redoor and
hold tight to inside front of rebox
above top of liners. Square pattern
on casting should be facing into the
rebox.
2. Lower casting so it rests on round
shaft of grate.
CAST LINERS
In CL115-170G - Hook liner pieces in
retainers as shown. Install on sequence
shown by numbers 1 to 6. The other 3
pieces are installed on opposite side
from 4, 5, 6 beginning at back corner.
NOTE: This front casting is not required
when burning wood. However, this
casting or provided grate plate should
be placed on top of the grates for more
efcient wood burning and to prevent
wood coals from falling through and
warping grates.

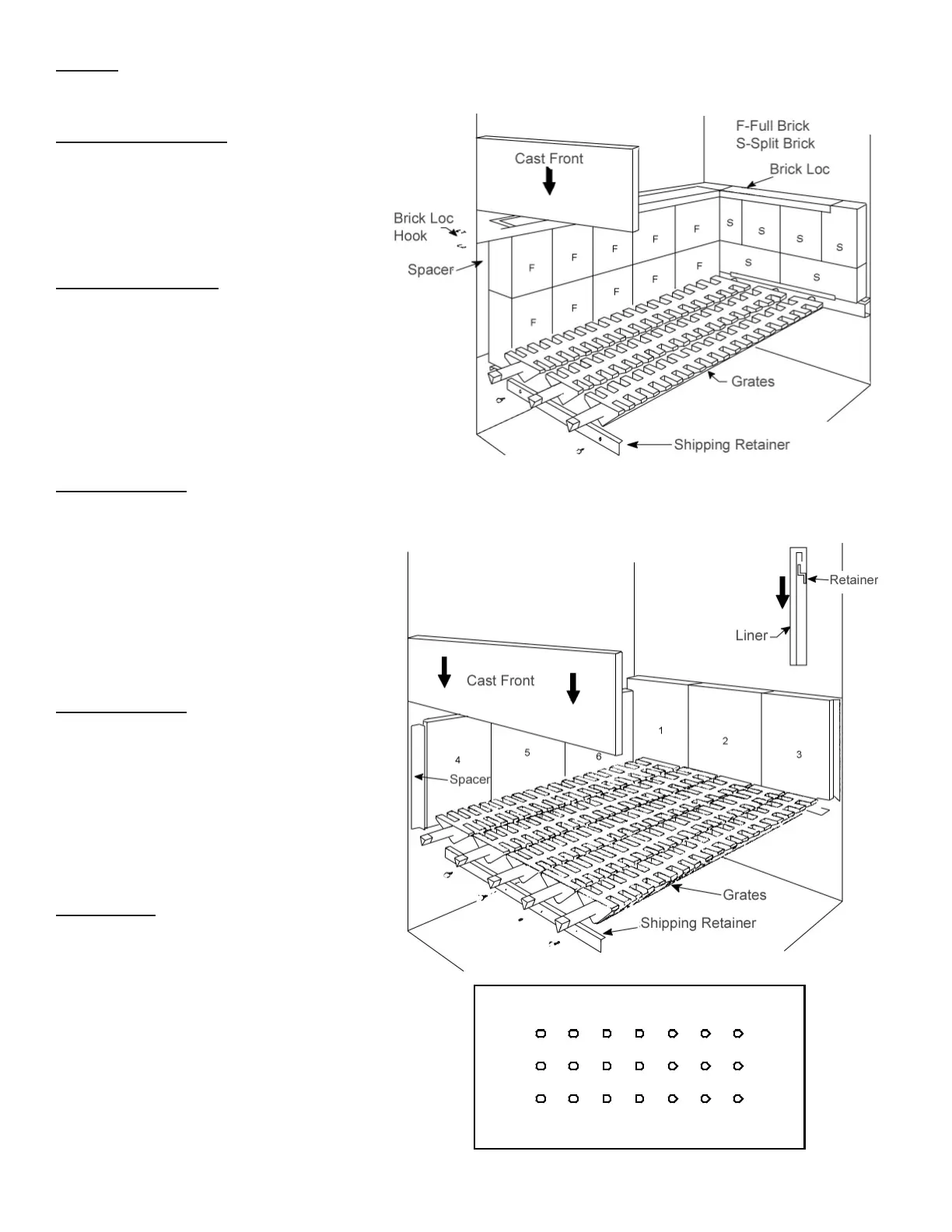

CL86G-96G FIREBOX
CL115G-170G FIREBOX
Grate Cover
Figure 10A
Figure 10B
Figure 10C
