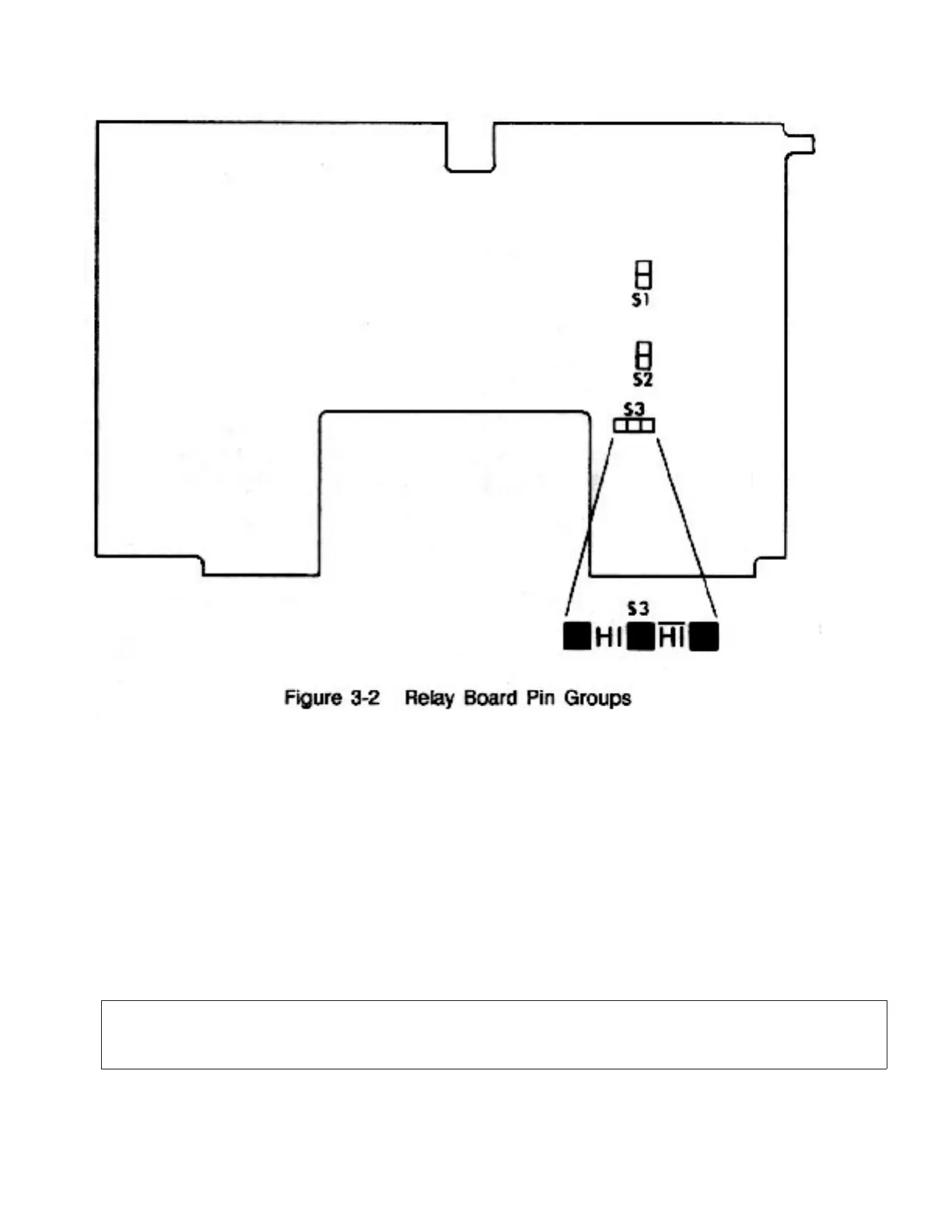

Newport Electronics P6000A - Figure 3-2 Relay Board Pin Groups; S3 of the Relay Board

To Next Page

To Previous Page

3.2 S3 OF THE RELAY BOARD

If a jumper is installed on the HI position, high relay is energized when high alarm

is active.

If a jumper is installed on HI, the relay is energized when high alarm is not active

(LO or GO active). Also, with the jumper on HI, the high setpoint should be higher

than the low setpoint.

NOTE: Refer to the P6000A/P5000 main board owner's manual for low alarm

polarity reversal.
