17
NOTE: Unless otherwise specified, the unit is shipped in the default condition
with 0 - 1M = 0 - 10 V or 1 mV/100 counts.
3.0 ELECTRICAL CONNECTIONS AND ADJUSTMENT LOCATIONS

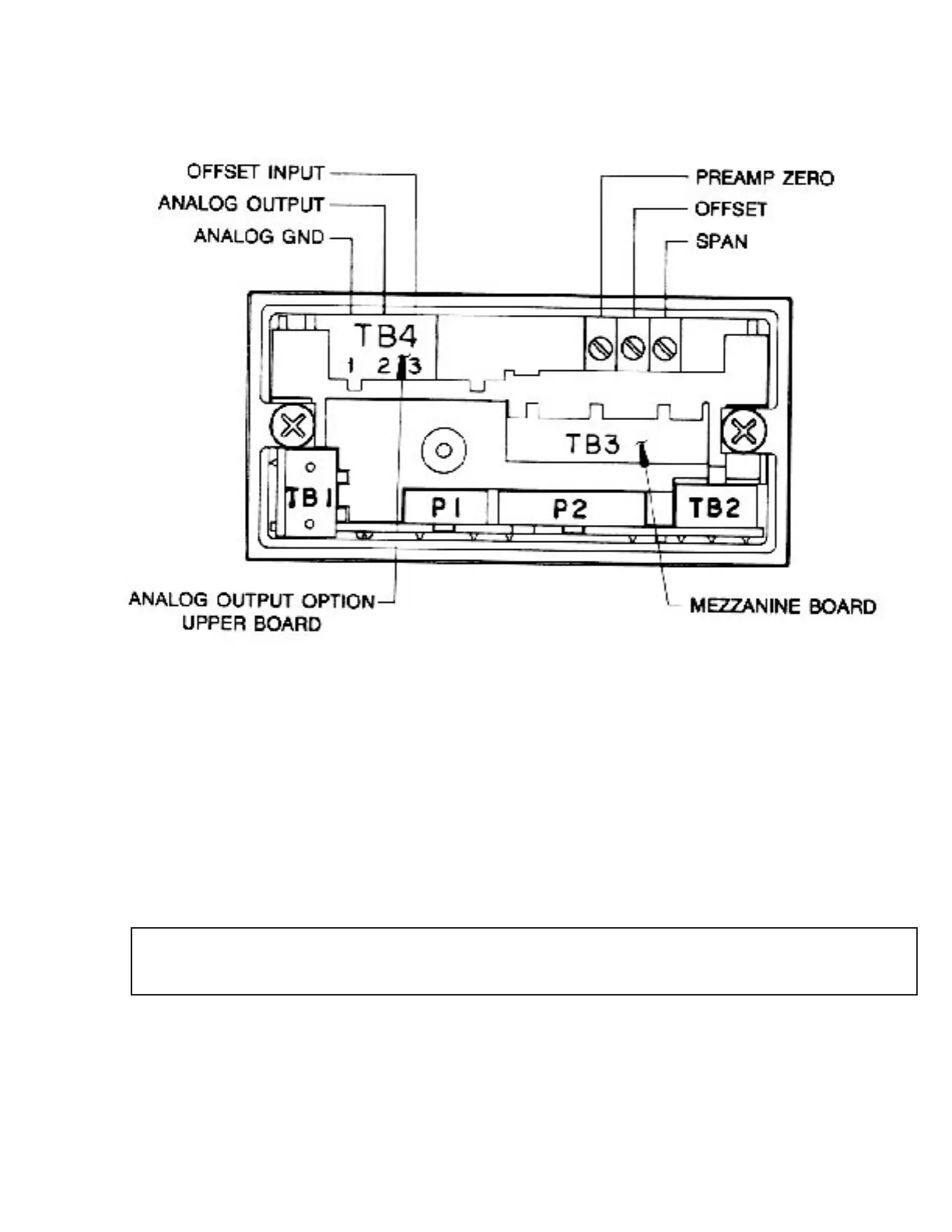

Figure 3-1 Isolated Analog Output Option Rear View
4.0 CONFIGURATION PROCEDURE
Use this procedure to determine the configuration of the isolated analog
output option. If reconfiguring is required, first remove all push-on jumpers.
