CONEX-AGAP Agilis-D Controller with Strain Gages Feedback

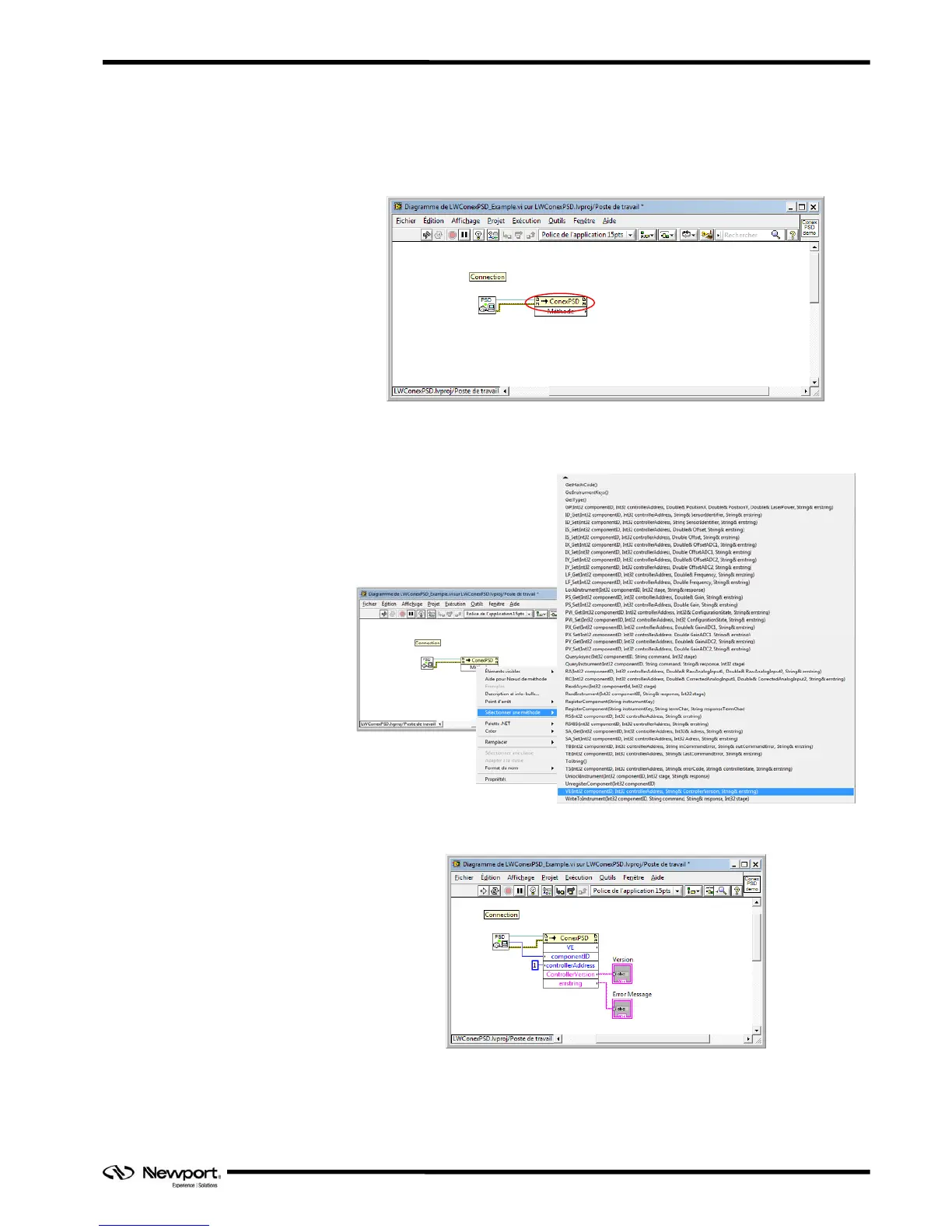

Link the ‘Instrument Reference’ output from LWInstrument_Connect to the
‘reference’ input from the node of method.
For CONEX-AGP: ‘ConexAGP Reference’. After the link, the node of method header
becomes “ConexAGP”.
Now, a list of functions for the selected instrument is accessible. Right click on the
node of method and select the menu “select a method”: a list of functions is displayed.
This list contains all the functions of the instrument.
In our example, the selected function is “VE” to get the version of the selected
instrument.
Page 9 EDH0293En1020 — 09/12
