2.3 Menu Contents for Newport Instrument

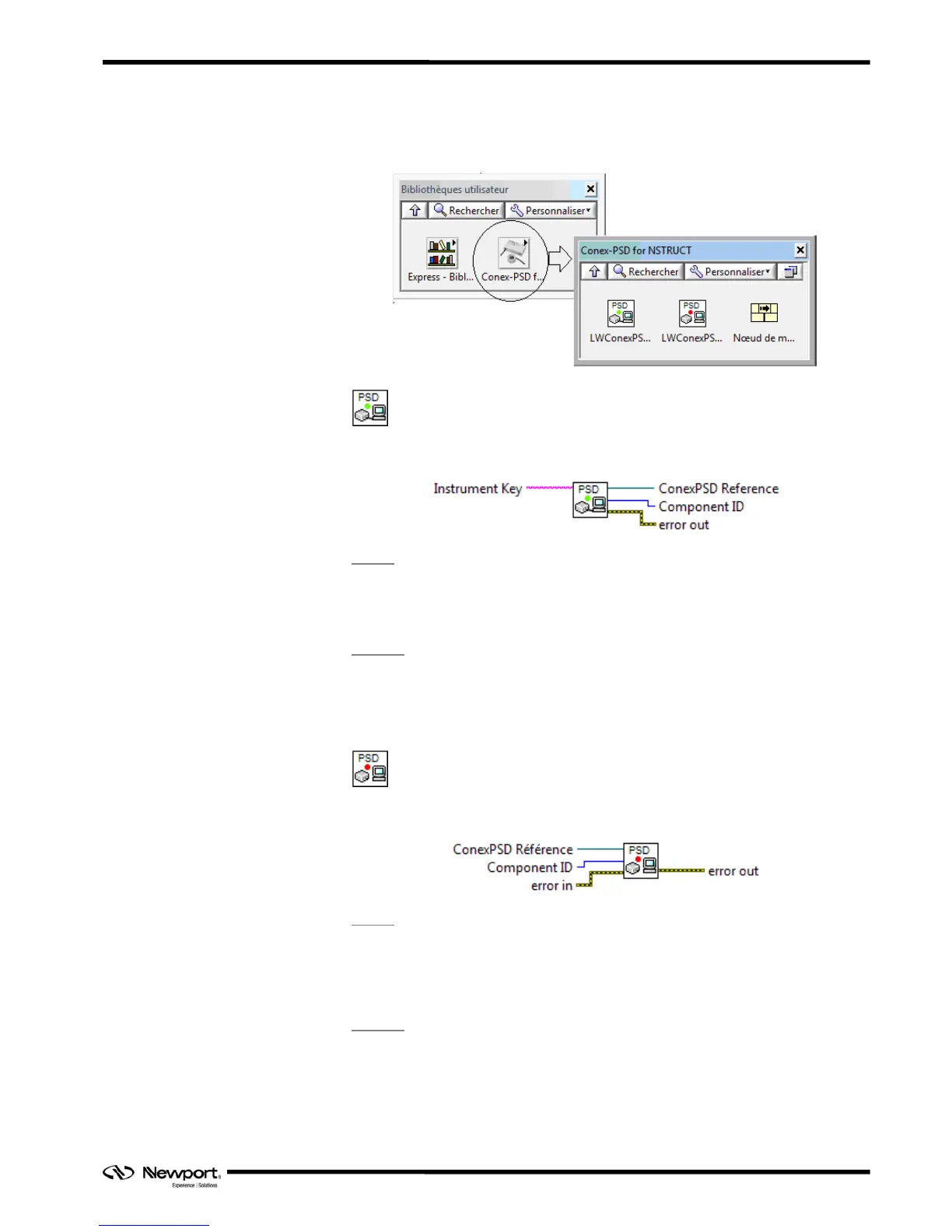

LWConexPSD_Connect
This VI creates an instance of the selected instrument. The instrument is registered to
the NSTRUCT server and the communication is ready.
Inputs
 Instrument Key: represents the instrument key from the NSTRUCT server. If it’s
empty, a dialog box is displayed to purpose a device list. Then the user can
selected one instrument from this list.
Outputs
 ConexPSD Reference: represents the instrument instance.
 Component ID: the identifier of the instrument from the NSTRUCT server.
 error out: contains LabVIEW error information.
LWConexPSD_Disconnect
This VI is used to remove the instance of the selected instrument. The instrument is
unregistered from the NSTRUCT server and the communication is closed.
Inputs
 ConexPSD Reference: represents the instrument instance.
 Component ID: the identifier of the instrument from the NSTRUCT server.
 error in: describes LabVIEW error conditions that occur before this node runs.
Outputs
 error out: contains LabVIEW error information.
