IEEE 488.2 Common Commands
The IEEE 488.2 Common Commands and Queries are distinguished by the “*” which begins each
mnemonic. The diagrams below show the syntax structure for common commands, common
command queries, and common commands with numeric data required.

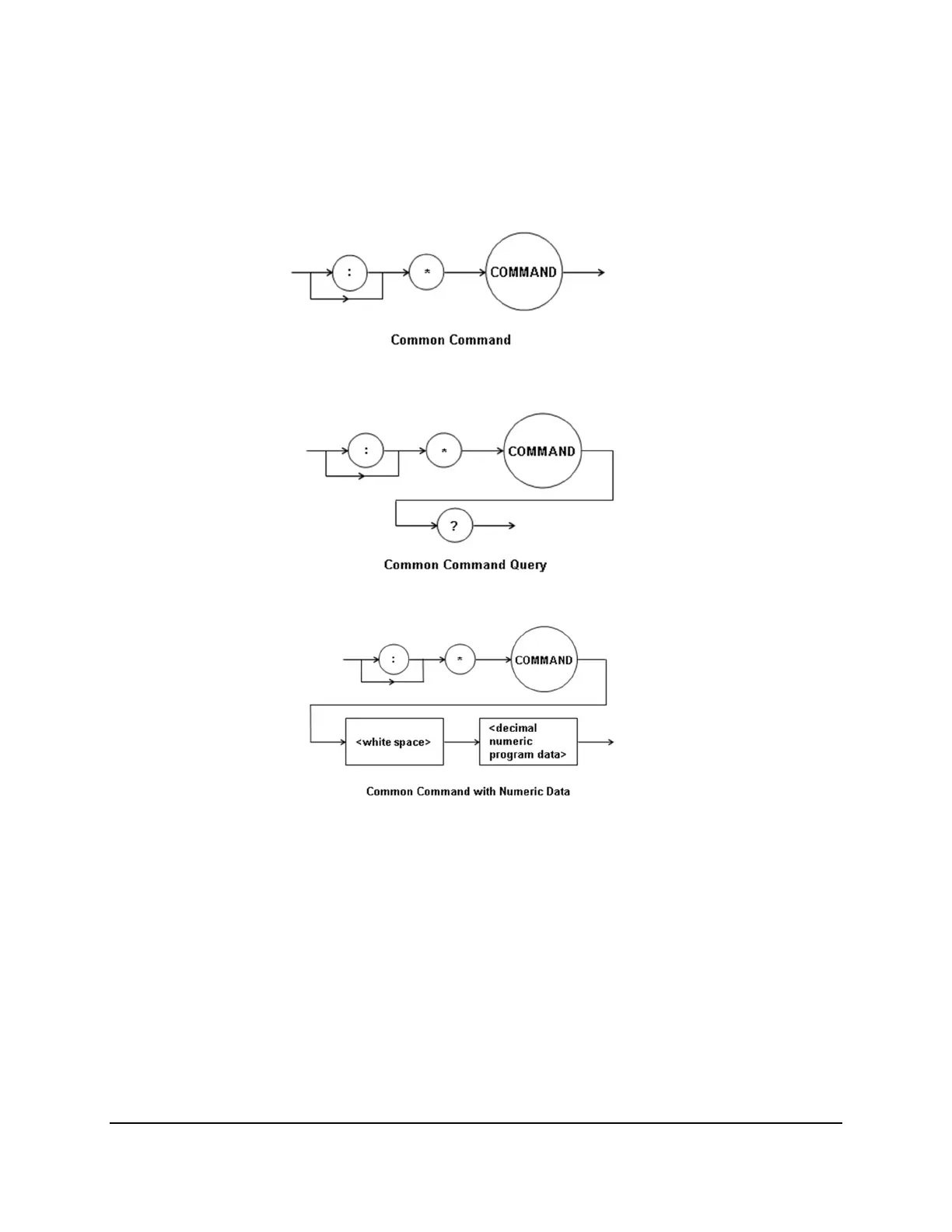

Figure 3.3 – Common Command Diagrams
Numeric data is required with *RCL (0 – 10, see front panel RECALL function), *SAV (1 – 10, see
front panel STORE function), and *ESE (0 – 255, see Figure 3.4 – Status Reporting Scheme).
