3. DESIGN OF NE620T
3.1. Product image NE620T – biological microscope
3
DESIGN OF NE620T

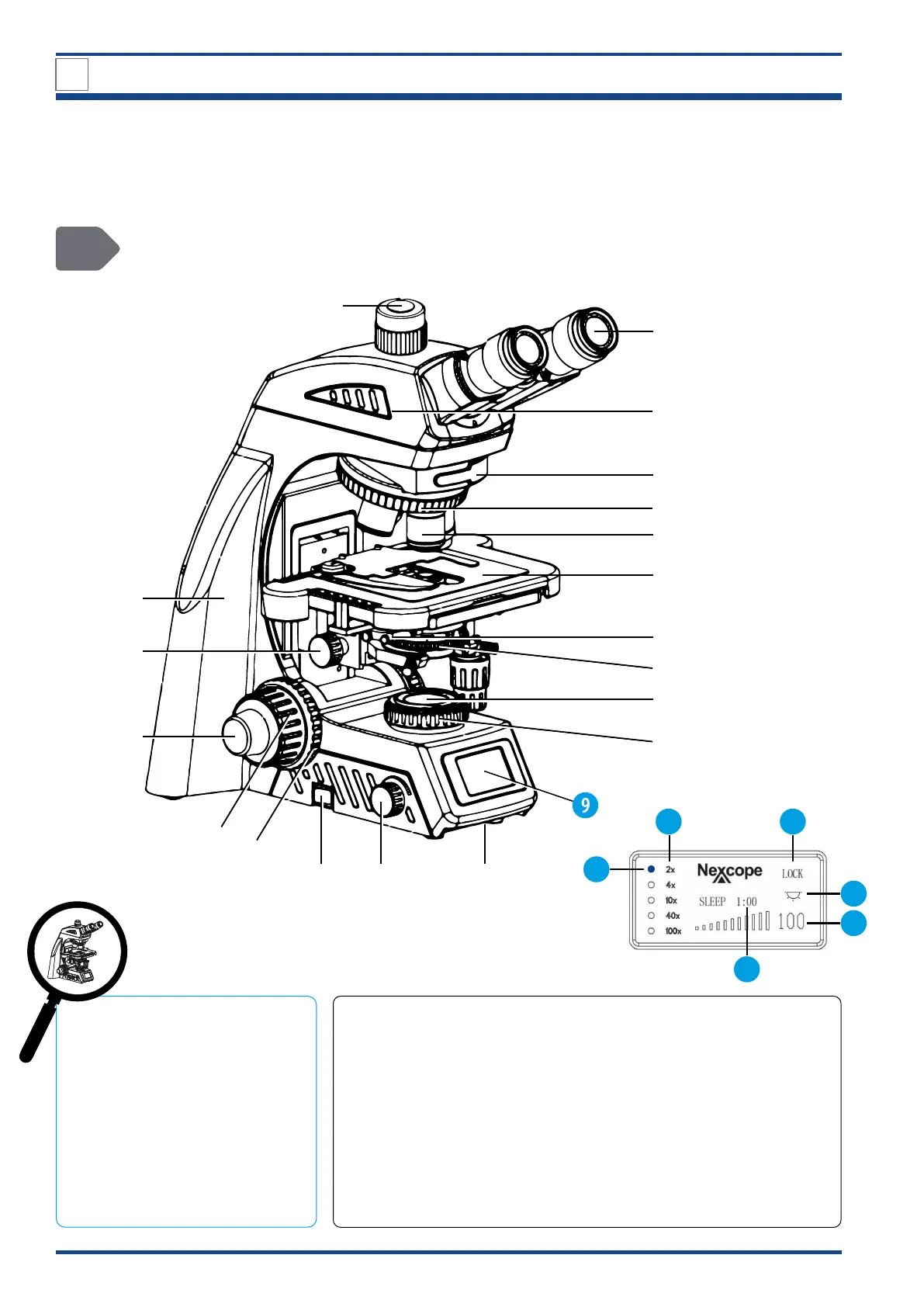

Illustration 001: Product image of NE620T front/side view.
A
NE620T front/side view
















 

BASIC DESIGN
1. Main body
2. Condenser up-down knob
3. Left fine focusing knob
4. Coarse focusing knob
5. Tension adjustment ring
6. On/Off switch
7. Brightness control knob
8. Carrying handle 1
10. Field diaphragm ring
11. Field diaphragm
12. Condenser with aperture diaphragm
13. Slider for different observation
methods/placeholder
14. Cross stage with specimen clamp
15. Objective
16. Encoded quintuple nosepiece
17. External filter slider/placeholder
18. Trinocular viewing head
19. Eyepiece
20. Photo adapter
9a
9b
9e
9d
9c
9f
AUTOMATIC DESIGN
9. Liquid Crystal Display (LCD)
9a. Selected objective
9b. Blue dot
9c. Adjustable time for SLEEP mode
9d. Light intensity (%)
9e. Transmitted light ON/OFF
9f. Light blocking or unblocking
