VARIOUS OBSERVATION METHODS
5
IV
VII
C

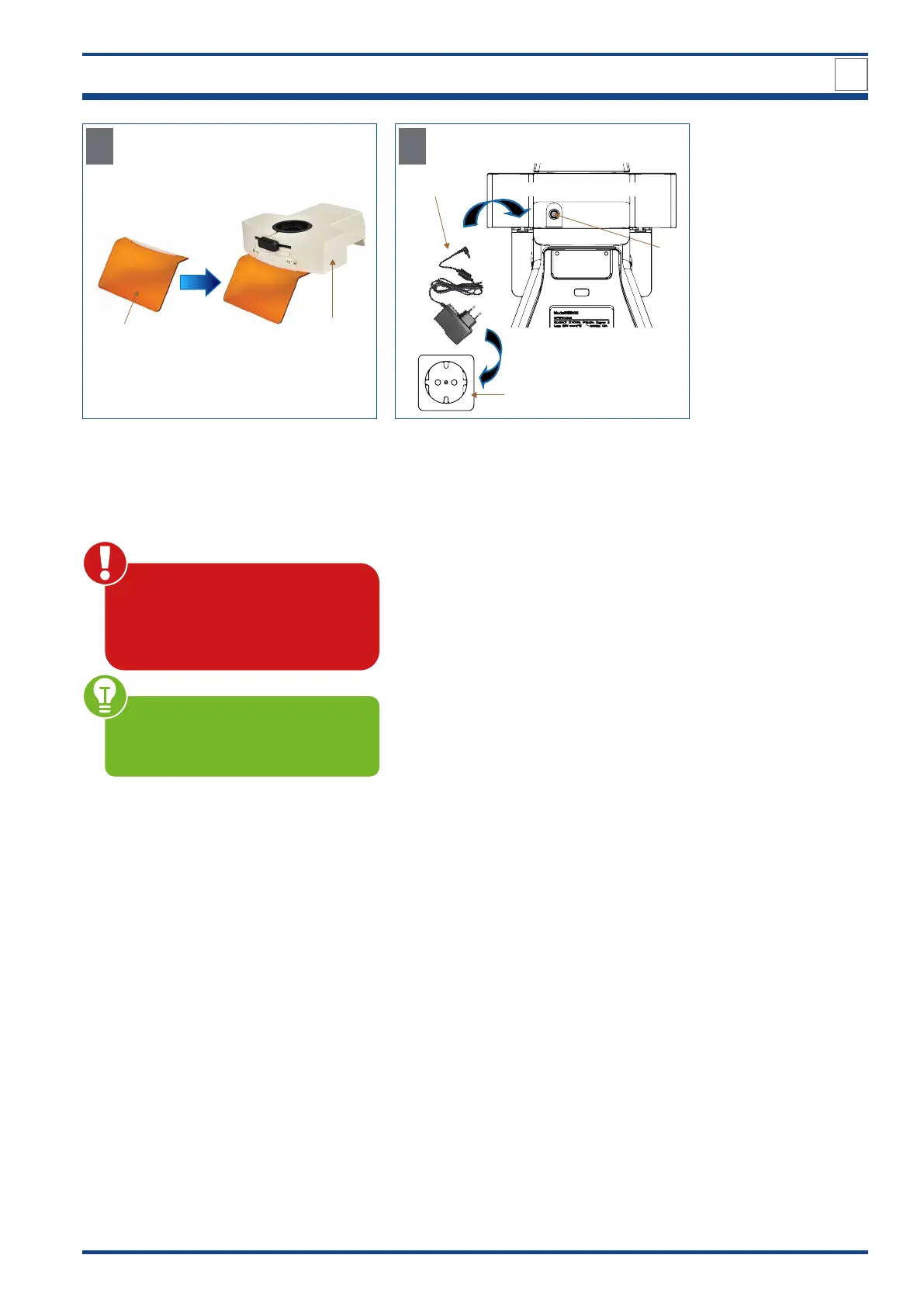

Illustration 036: Installation of the LED fluorescent attachment.
Slide the orange protective shield (VII)
into the two fixtures at the bottom of the LED
fluorescent attachment (IV).
Before each fluorescent observa-
tion, check that the orange radiation
shield is properly attached to the LED
fluorescent attachment to protect your
eyes from stray light.
The protective shield is only pushed
into the device. It can easily come out
of the anchorage.
VIII
IV
DC 5V
IX
D
ROUND PLUG CONNECTION
Connect the adapter (VIII) to the round
plug connection of the LED fluorescent at-
tachment (IV). Insert the main power plug of
the adapter into the power socket (IX).
