Assembly Instructions

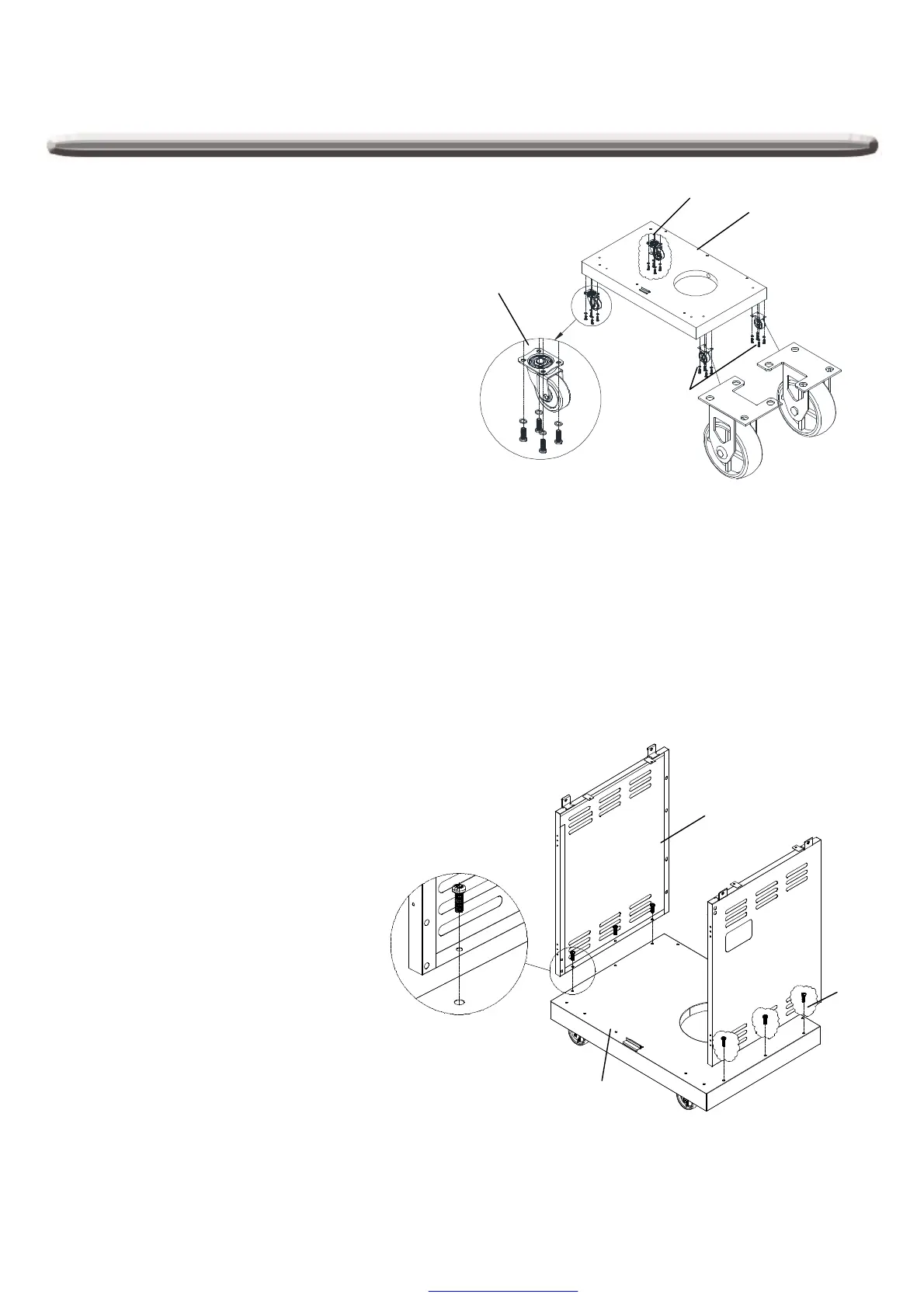

1. Caster Assembly
Mount the casters onto the bottom panel (L) using
sixteen 1/4-in. x 15-mm truss head screws with
locking washers (AA).
The swivel caster with brake(Q)should be
positioned under the left rear of the cart bottom and
the swivel caster (P) should be positioned under
left front as shown in Fig. 1.
The two stationary casters (R) should be
positioned under the rightside.
Note: The gap of the two stationary casters should
be facing the inside bottom panel.
Turn over the bottom panel for assembling casters.
2. Side Panel Assembly
Use three 1/4-in. x 15-mm truss head
screws with locking washers (AA) to
connect the bottom of the left side panel (I)
to the bottom panel (L). Make the left side
panel flush with the rear of bottom panel
and tighten the screws as shown in Fig. 2.
Repeat for the right side panel (H).
Fig. 2
L
16 x AA
R
P
Q
Fig. 1
I
6 x AA
L
H
