Nexgrill 720 - Page 14

14

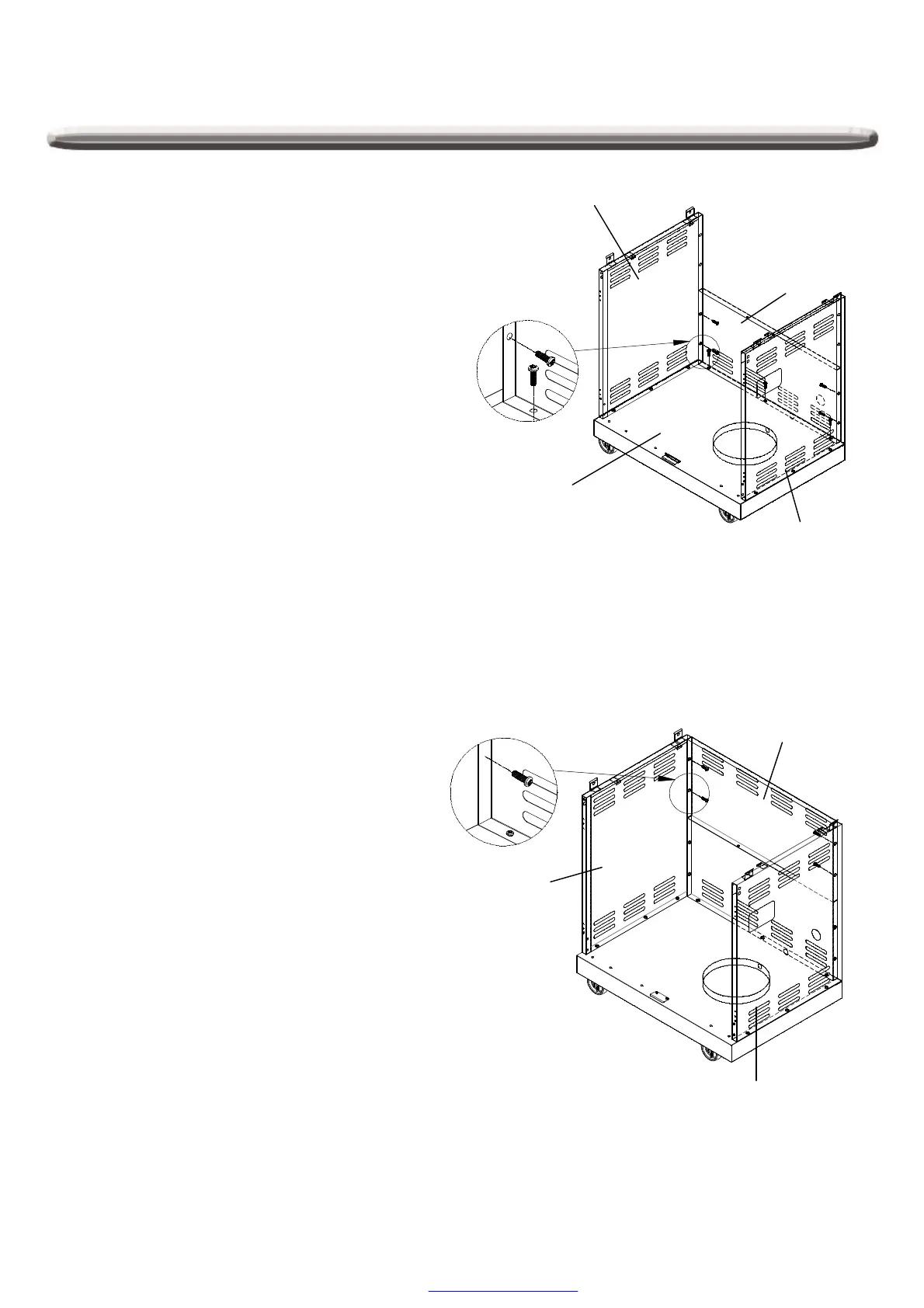

3. Back Panel, bottom Assembly
a). Position the back panel, bottom (G) with the flat
side facing outward. Attach the back panel, bottom
(G)to the bottom panel (L) with three1/4-in. x 15-
mm truss head screws with locking washers (AA)
as shown in Fig. 3.
Fig. 3
Assembly Instructions
G
L
AA7X
b). Use four 1/4-in. x 15-mm truss head screws
with locking washers (AA)to connect the back
panel, bottom(G) to the rightand left side
panels(H/I)as shown in Fig. 3
Fig. 4
4. Back Panel, middle Assembly
a). Use four 1/4-in. x 15-mm truss head screws
with locking washers (AA)to connect back
panel, middle (F) to the right and left side
panels (H / I )as shown in Fig. 4
F
4 x AA
I
H
I
H
