Fig. 5
Fig.6
Assembly Instructions

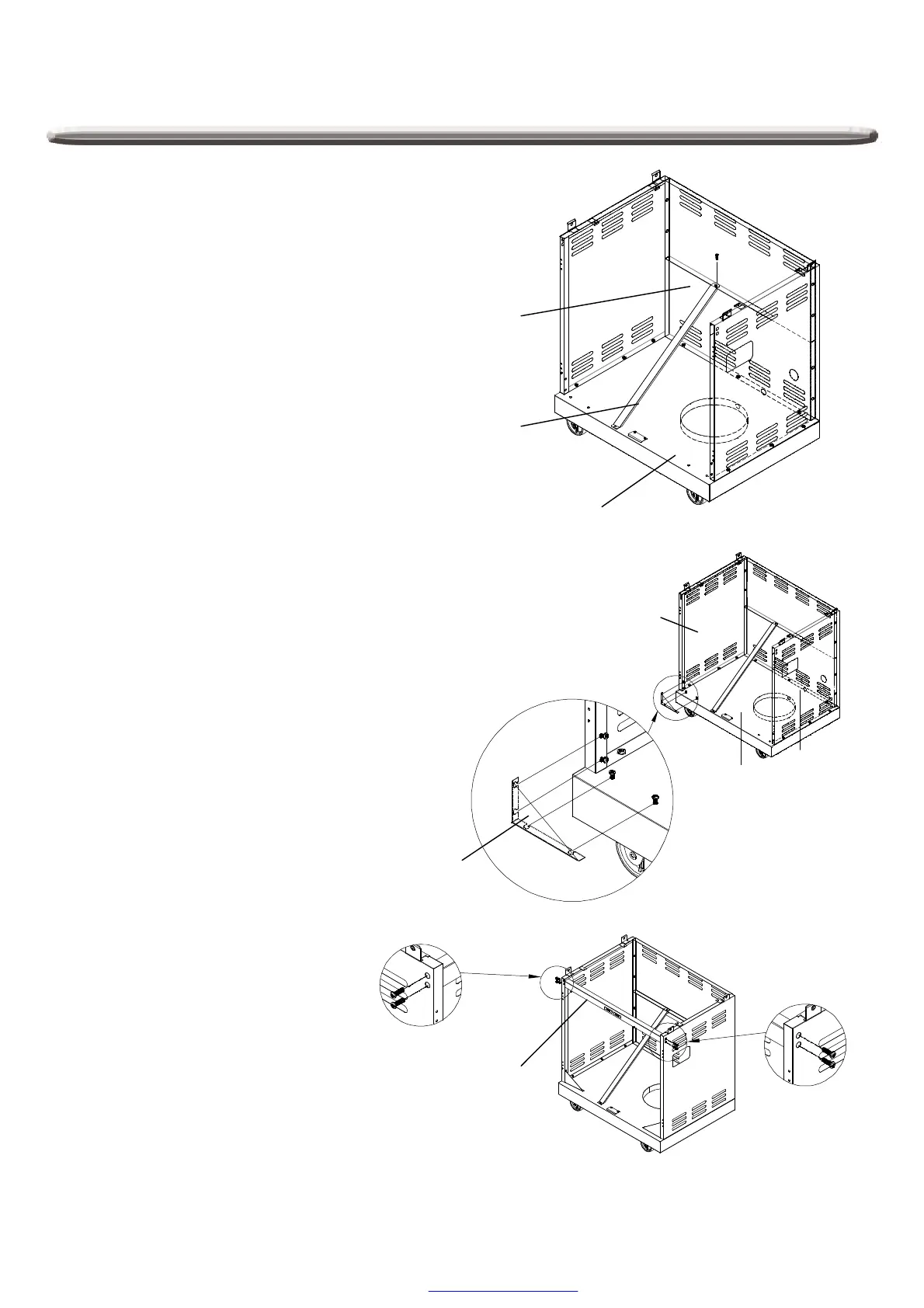

5. Diagonal Bar Barrier Assembly
Use two 5/32-in. x 10-mm truss head screws (BB) to
attach Diagonal Bar Barrier (K) to the bottom panel (L)
and upside of the Back panel, bottom (G). As shown
in Fig. 5.
L
K
G
2 x BB
Fig.7
6. Door Triangle Bracket Assembly
a)Loosen but do not remove four 5/32-in. x
10-mm truss head screws (BB) mount the
Left Side Panel (I) and Bottom Panel (L),
two screws on cart Right Side Panel (H)
and two on the Bottom Panel (L). Align the
holes of the triangle bracket with screws on
Left Side Panel (I) and Bottom Panel (L).
Then tighten the screws as shown in Fig. 6.
b)Repeat the steps a) for attaching the
triangle bracket to the Right Panel (H) and
bottom Panel (L)
O
7. Cart frame Assembly
Use four 1/4-in. x 15-mm truss head
screws with locking washers (AA) to
add the cart frame (J) to the right and
left side panels, as shown in Fig. 7.
J
4 x BB
