S
16

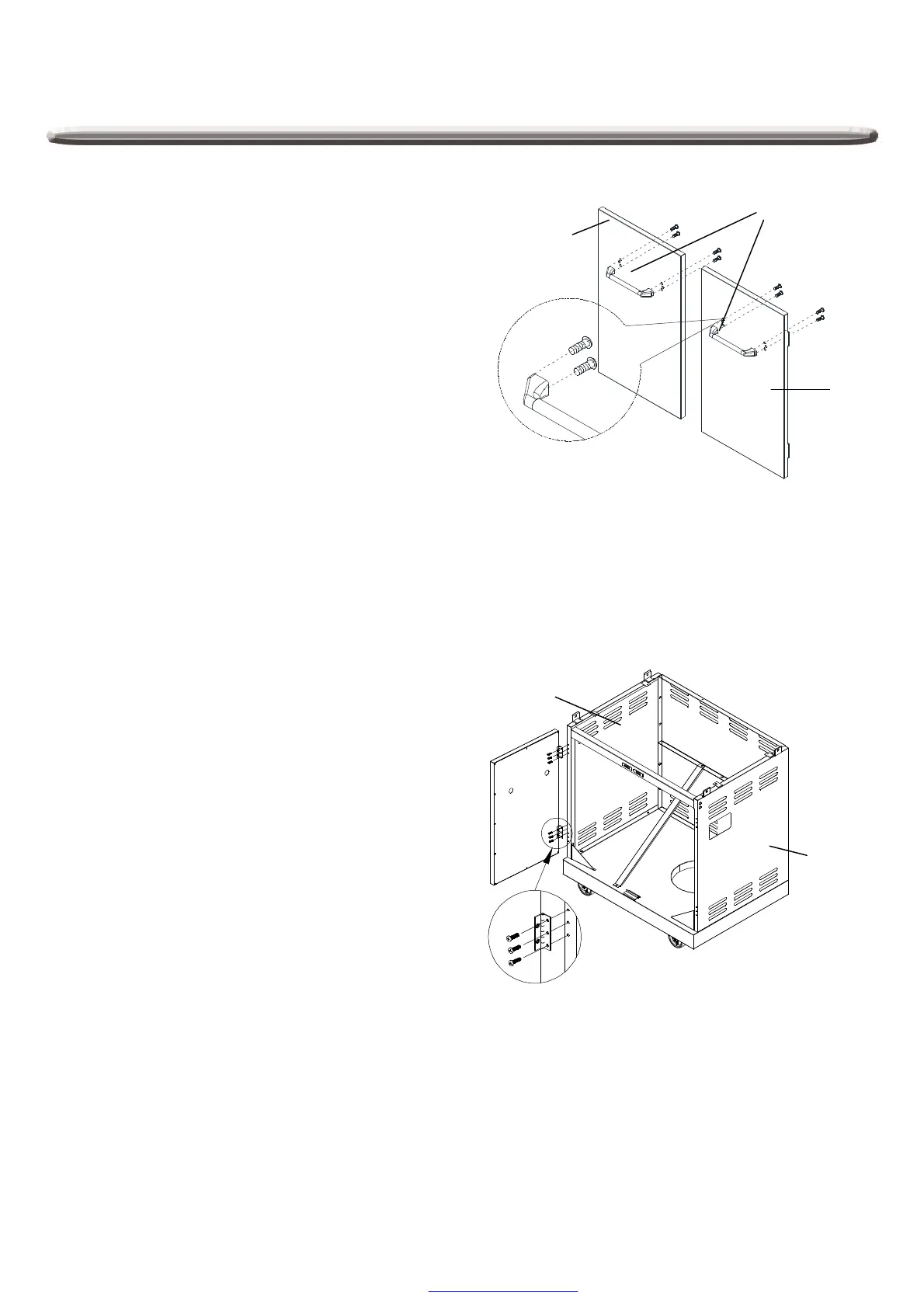

Fig. 8
Assembly Instructions
Fig.9
a) Attached the door handle assembly (U) to the
each door (S/T) using eight 5/32-in. x 10-mm
truss head screws (BB), as shown in Fig. 8.
HINT: Six screws for each door.
HINT: Four screws for each door.
12XCC
8.Door Assembly
8X
T
U
BB
I
H
b). Attach the two door’s hinges to the right
and left side panels (I/H) using twelve 5/32-
in. x 10-mm flat head screws (CC) as
shown in Fig. 9.
