17

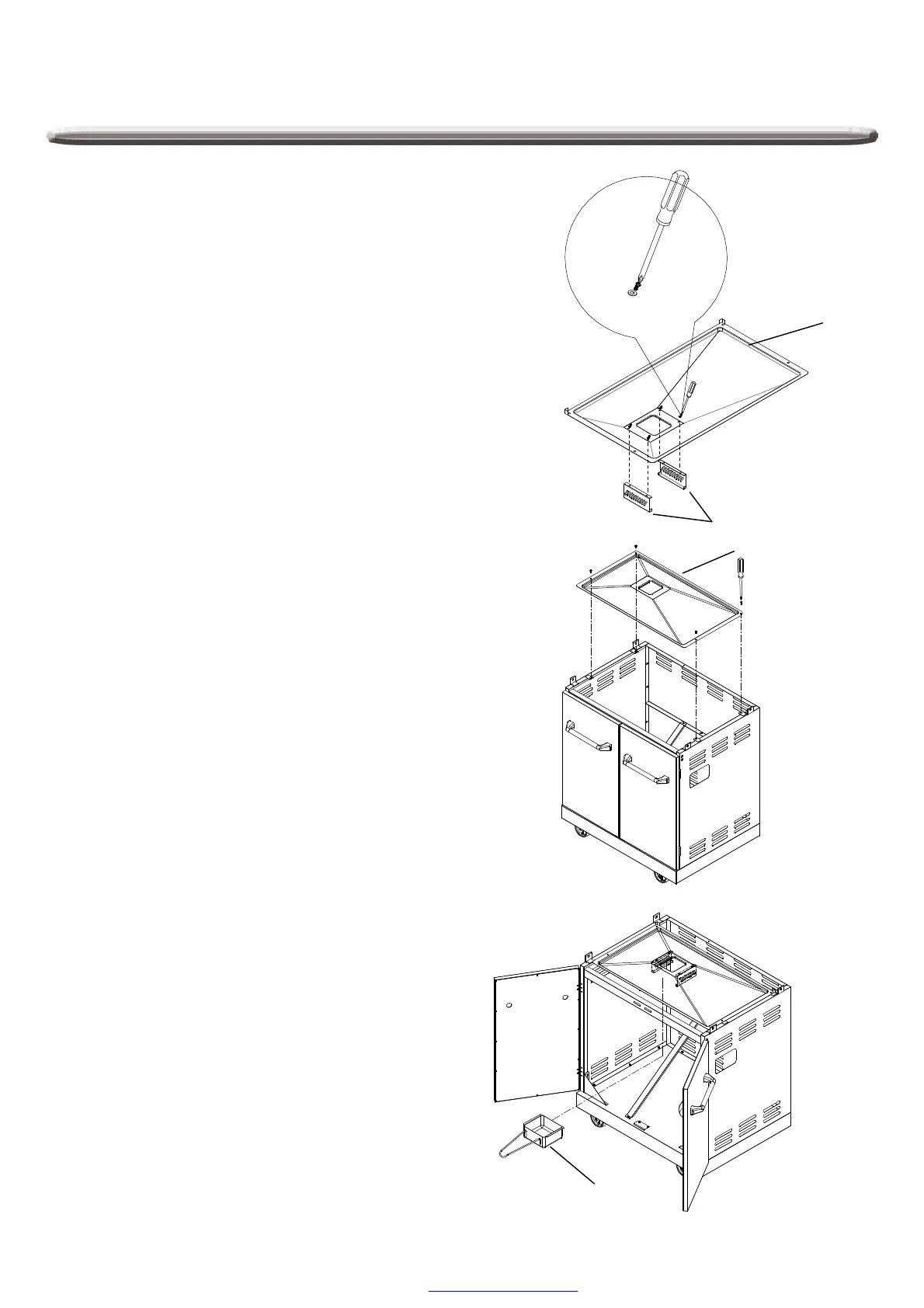

Fig.10
Assembly Instructions
9. Install the Grease pan
a). Attach the grease cup brackets (Z) to the
grease pan (D) by using four 5/32-in. x 10-mm
truss head screws with locking washer (BB.) and four
5/32-in flat washer（DD) as shown in Fig.10.
b). Install the grease pan (D) onto the cart by using
four 5/32” x10mm truss head screws (BB). As
shown in Fig. 11.
c). Install the grease cup (E) under the grease tray
(D). As shown in Fig. 12.
D
Fig.12
E
4 x BB
4 x BB
Z
D
4 x DD
Fig. 11
