Fig.13
Assembly Instructions
Fig.14
10. FireboxAssembly

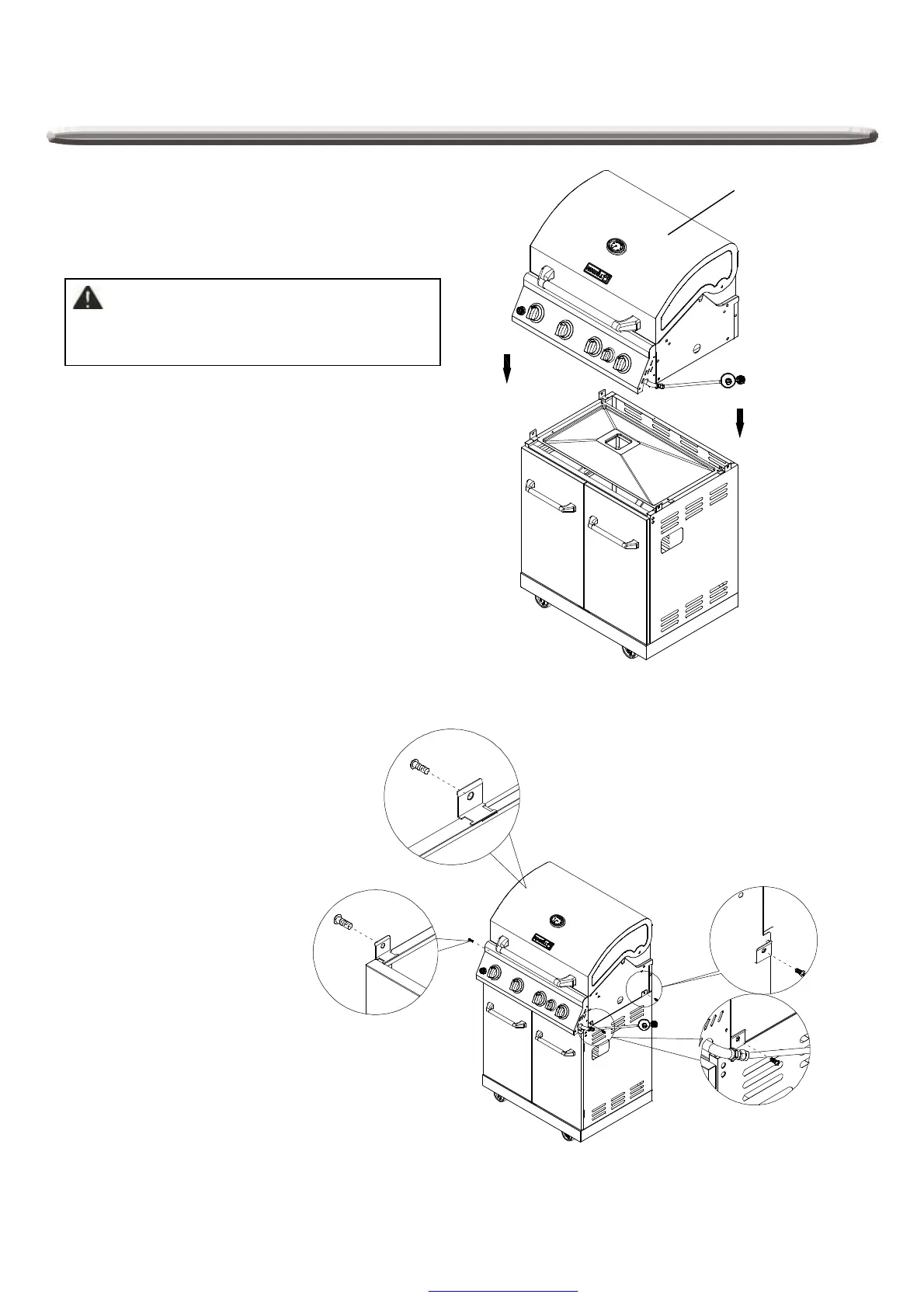

a). Remove the firebox assembly (A) from the
cartonand carefully place onto the grill cart. As
shown in Fig. 13.
A
b) Attach firebox to the left and right side
panels by using four ¼-in. x 15-mm truss
head screws with locking washers (AA).
As shown in Fig. 14.
1 x AA
CAUTIONThe firebox assembly is heavy
and will require two or more people to lift and
position onto grill cart. Failure to do so may
result in injury.
1 x AA
1 x AA
1 x AA
