2 x BB
19

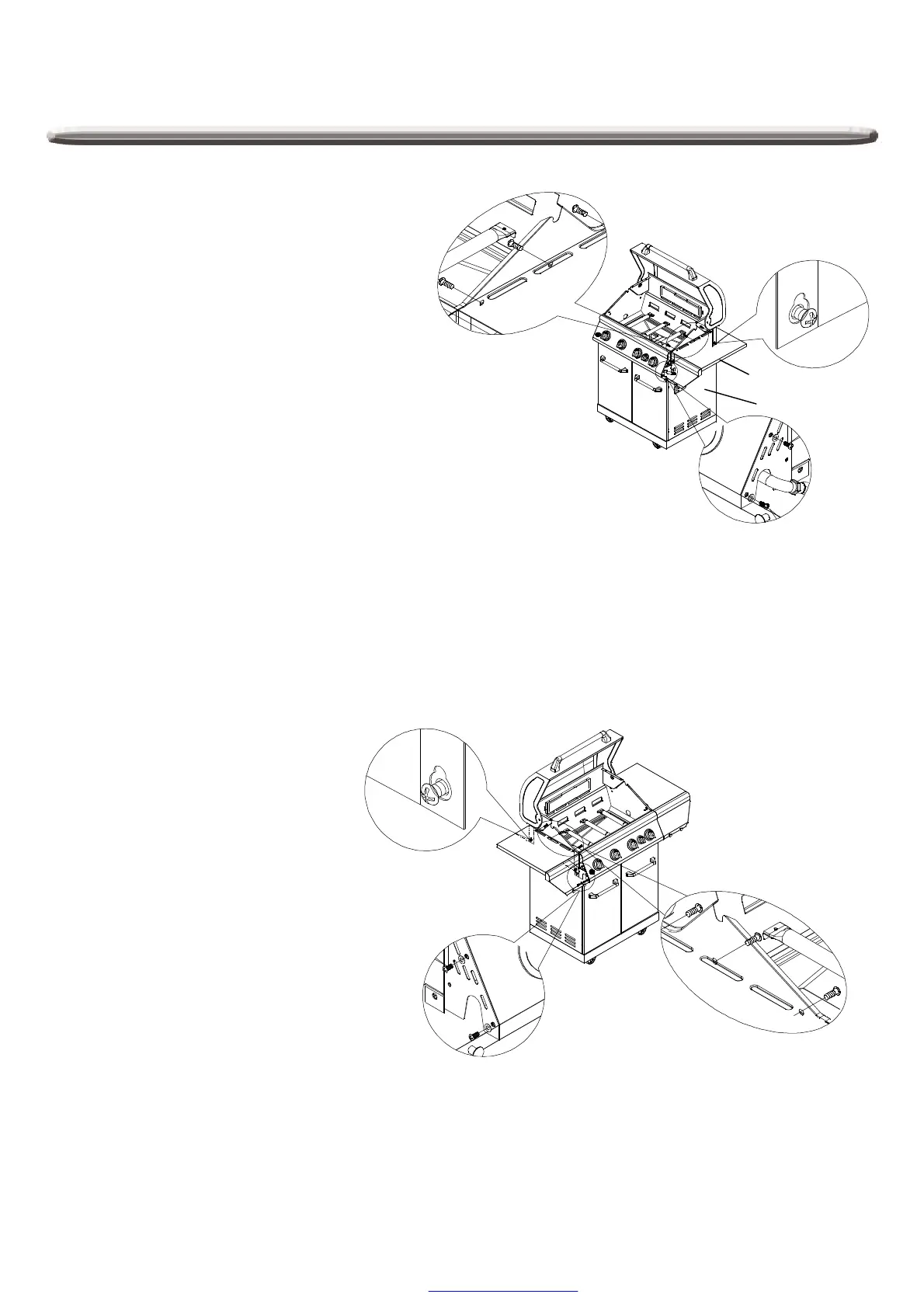

11. Side Shelves Assembly
a). Loosen the two screws which pre-assembled
onto firebox right side panel (H) but do not
remove Completely. Align the bottom key holes
on side shelf (C) with the two loosened screws as
show in Fig. 15, and then tighten. .
b). Use three ¼-in x15-mm truss head screws with
locking washer (AA) to keep the right side shelf
in place (These two ¼-in screws are screwed
through the front and the rear screw holes which
are located on the top of the right shelf). As
shown in Fig. 15.
Note: The top 2 screws of the firebox should be
screwed from the inside to outside for right side
burner shelf. But the bottom 2 screws should be
tightened from outside to inside.
c). Secure the right side shelf control panel and
main control panel by using two 5/32-in x 10-mm
truss head screws (BB) and two 5/32-in flat
washers (DD). As shown in Fig. 15.
Fig.15
Fig 16
Assembly Instructions
C
3 x AA
2 x DD
2 x DD
2 x BB
3 x AA
d) Repeat step 11 to assemble left side shelf.
As shown in Fig. 16.
H
