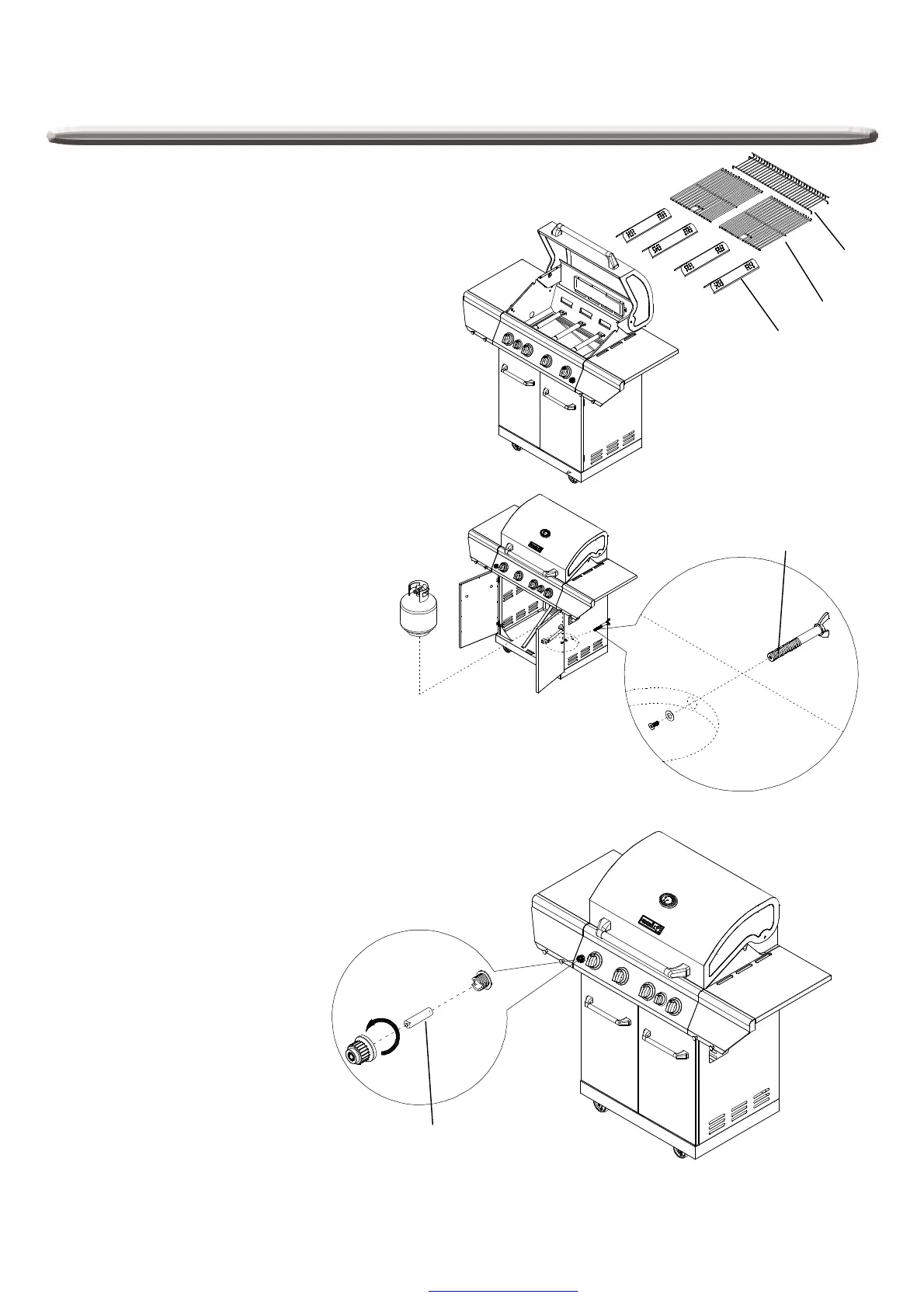

Fig.17
V
W
X
12. Flame Tamers, Cooking Grids Installation
Place the flame tamers (X), main cooking grids (W), and
warming rack (V) into the grill as shown in Fig. 17.
13. Liquid Propane TankInstallation
Place the liquid propane tankinto the hole
in the bottom panel and tighten the tank
bolt (M) at the back of the grill tosecure as
shown in Fig. 18
Fig.18
M
14. Battery Assembly
Unscrew the electronic igniter button and place the
battery (Y) into the housing with the positive terminal
(+) facing outward. Replace the ignition button after
the battery has been installed as shown in Fig. 19.
Fig.19
Y
20
Assembly Instructions
