mk2 powered TDControllers.
This device is intended to automatically set up the power outputs of an NXAMP Powered TDController to
the correct pins on speakON 4 and speakON 8 connectors. Thus, connecting any of the NEXO speakers is
very straight forward. Moreover, it is easy to connect several DPU together in case multiple amplifiers are
needed to feed a unique speaker system.

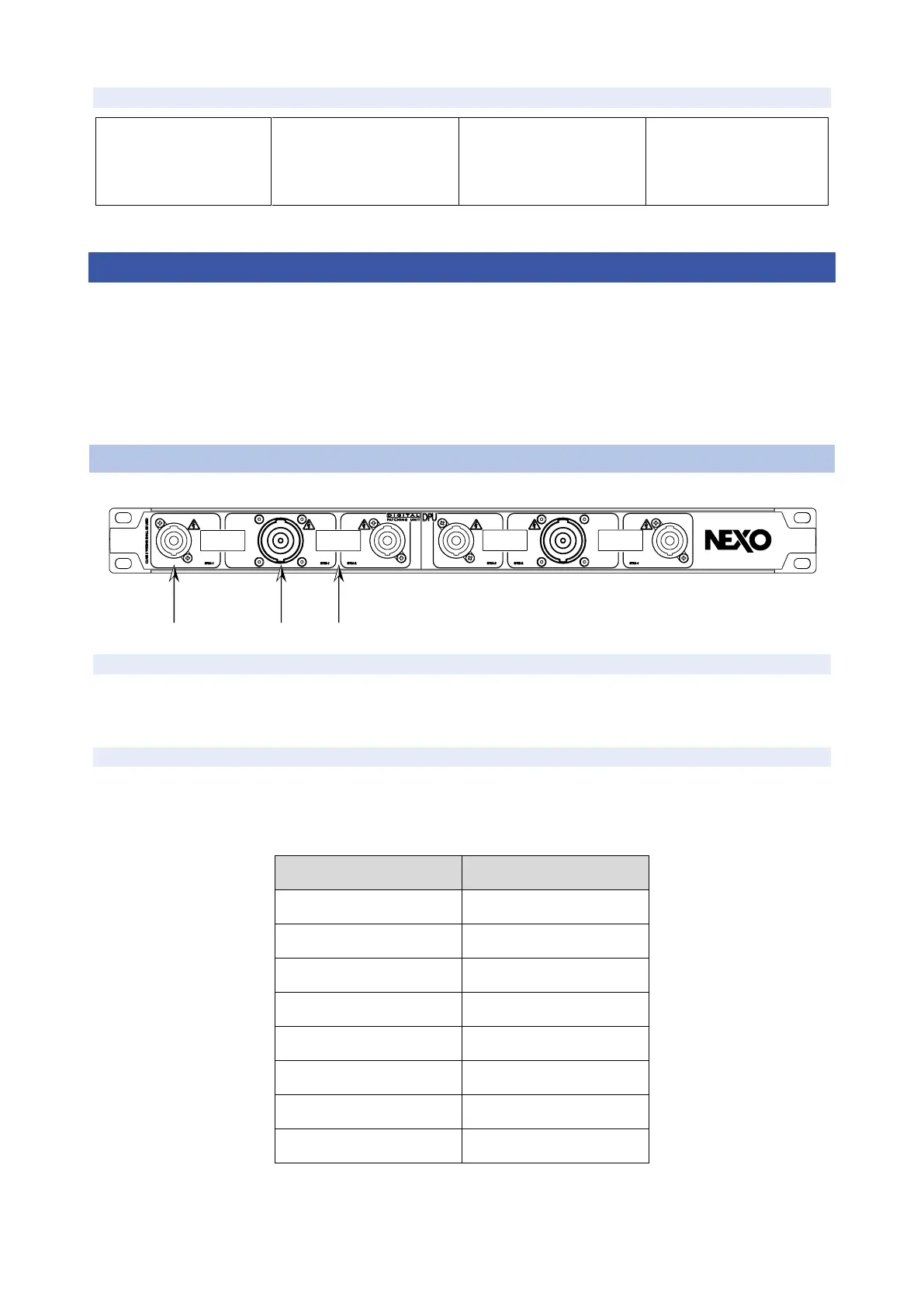

FRONT PANEL DESCRIPTION
A: SPEAKON 4 POLES OUTPUT
There are four connectors like this on the front panel. These connectors will be used to connect any NEXO
speaker that uses the same type of connector.
B: SPEAKON 8 POLES OUTPUT
There are two connectors like this on the front panel. These connectors will be used to connect the NEXO
speaker of your choice, if it uses the same type of connector of it is uses EP6 connector. The use of speakers
with EP6 connectors means the use of external pin to pin adaptor from speakON 8 to Amphenol EP6 with
the following arrangement.
