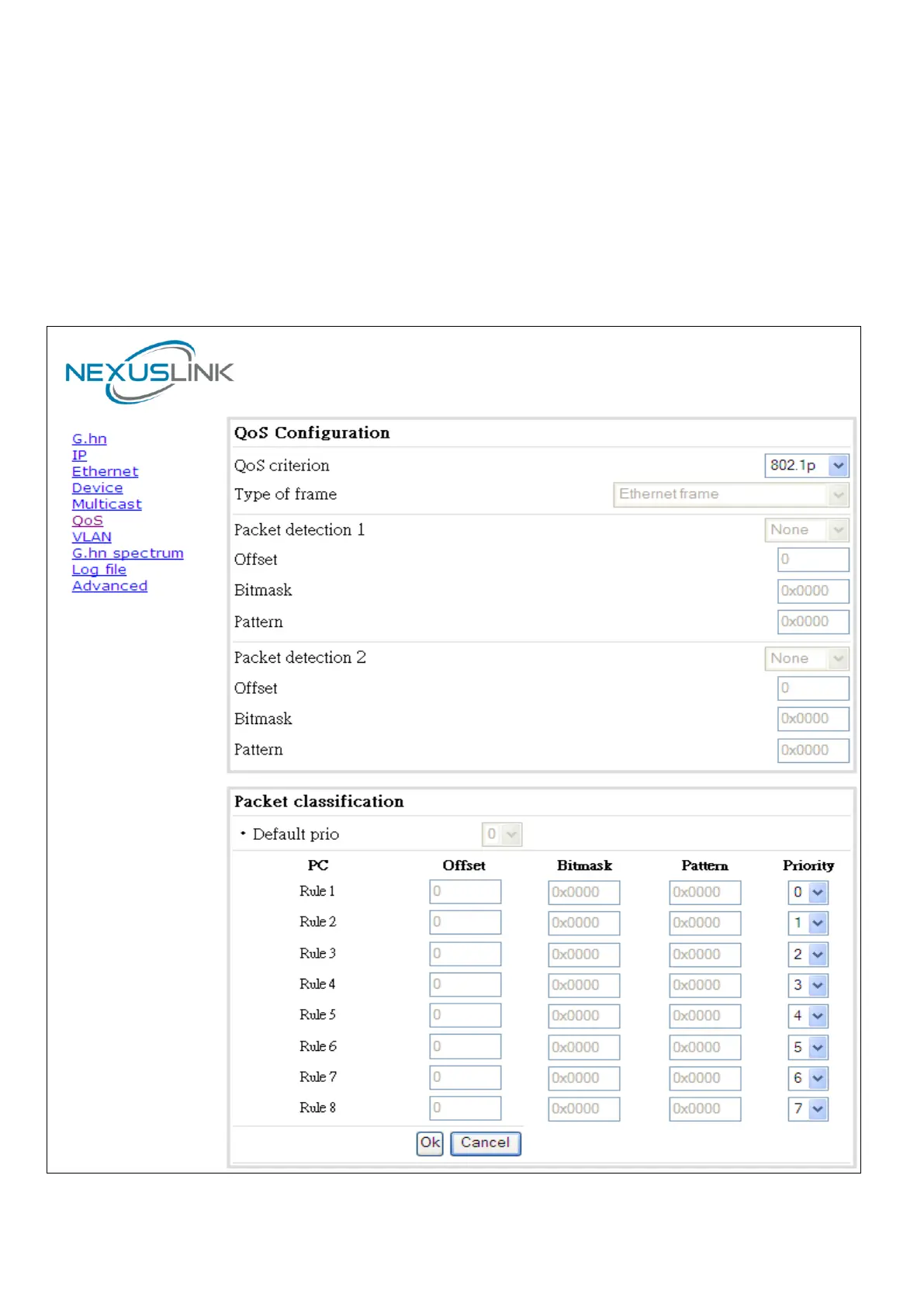

• Packet detection 2: if second packet detection is also enabled, both, first and second detection
criteria must be accomplished to pass packets to the classification module.
• Packet classification: up to 8 classification rules can be defined in this section for packets which
have previously been correctly detected. For 802.1p only priorities can be managed, offset, bitmask
and pattern are predefined to sniff the PCP field.
• Default priority: select default priority; which will be applied to non classified incoming packets.
Priority 7 is the highest. Priority 0 is the lowest.
Example 1
