Chapter 1 Product Information

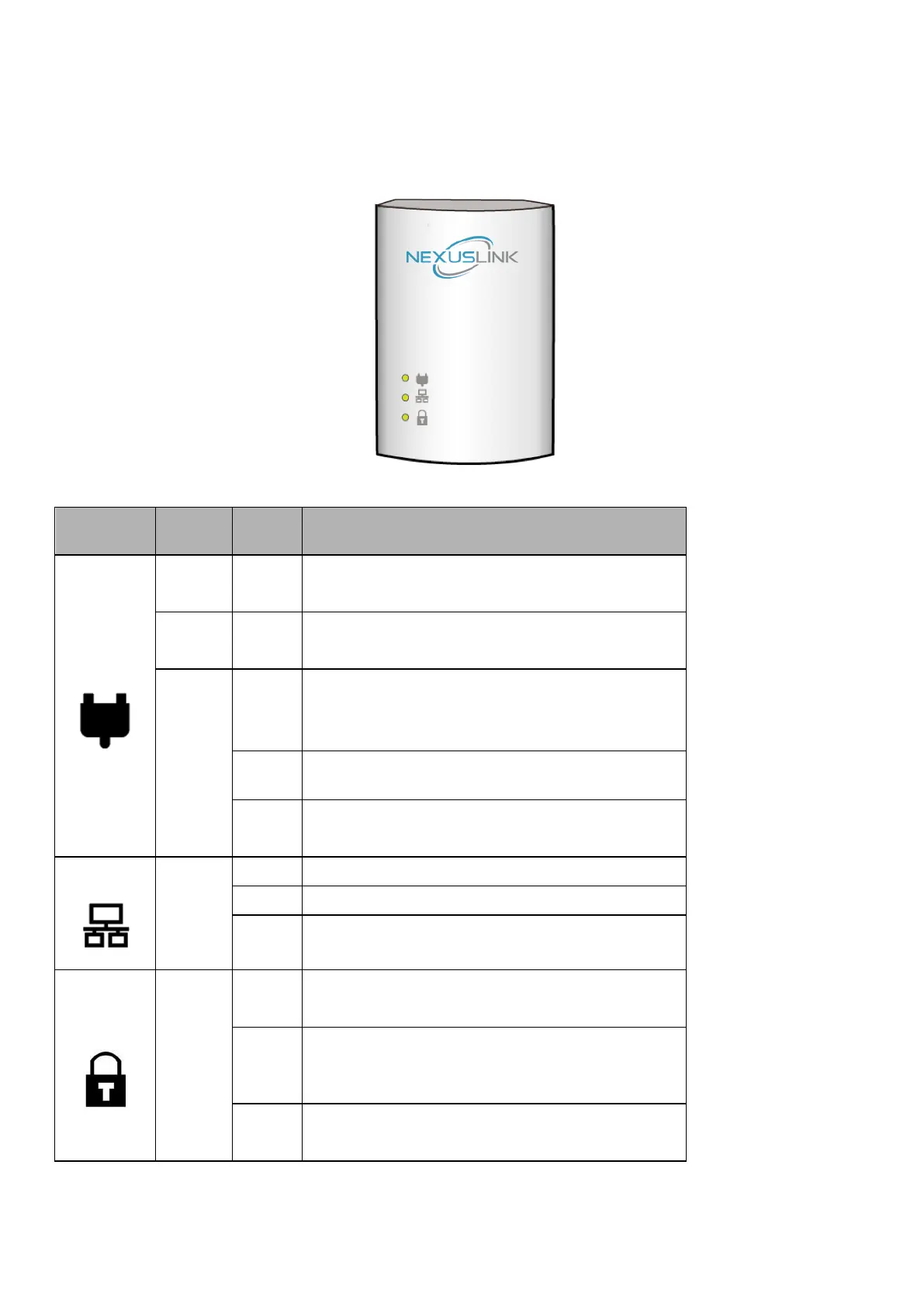

1.1 Front Panel and LED indicators
LED
COLOR
MODE
Description
Coverage
Green
On
The current connection (line rate) is greater
than 40 Mbps
Orange
On
The current connection (line rate) is greater
than 20 Mbps and less than 40 Mbps
Red
On
The current connection (line rate) is between 1
and 20 Mbps per second)
Off
No PLC connection exists
Blink
Adapter in power saving mode (blinks twice
every 5 seconds)
Ethernet
Green
On
LAN connection established
Off
LAN connection is not established
Blink
Data transmitting/receiving
Security
Green
On
Node is secure (it has either received or
generated network keys)
Off
Node is not secure, it has neither received nor
generated network key parameters (domain
name and encryption key)
Blink
Node is in configuration mode (able to
exchange network keys)
