Chapter 12 Advanced Interface

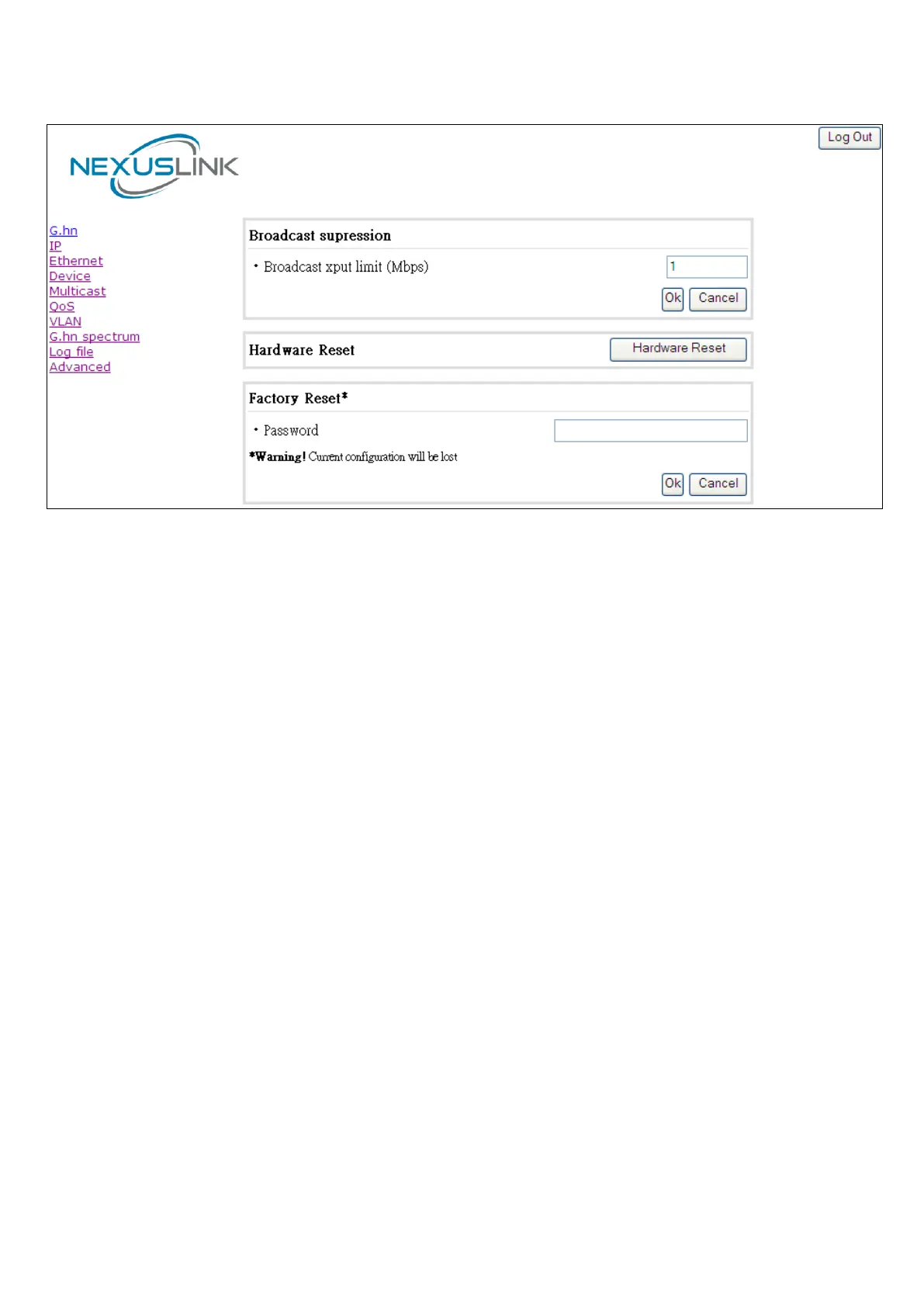

12.1 Traffic filtering
In this tab the broadcast suppression feature can be managed. Broadcast traffic higher than the selected
value will be dropped. To disable, set the value to 0.
Reboot: click on this button to perform a reset in the node.
Factory reset: click on this button to order a factory reset of the node.
Chapter 13 G.hn Profiles
• 50MHz: Using 50Mhz spectrum but in SISO setting
• 1000MHz: Using the whole 100MHz spectrum but using SISO
• 100MHz MIMO: Using MIMO at 100Mhz not using the boost option
• 50MHz MIMO boost: Power has been increased to overcome some line noise. Because of the increased
power the throughput is better as line attenuation increases (compared to non-boost profile).
• 50MHz MIMO: Standard power default setting. The throughput is inversely proportionate to the
attenuation.
• 100MHz Boost: Power has been increased but only using SISO setting.
• 50MHz vs 100Mhz Boost Profile: The 50MHz boost is more robust as you increase attenuation.
Example: In a 40db attenuation point of the line with 50Mhz MIMO boost you will have about 2.2x
more throughput compared to a 50MHz MIMO line. In a 100MHz boost, you will probably get about
