1.4 Point-to-Point Network

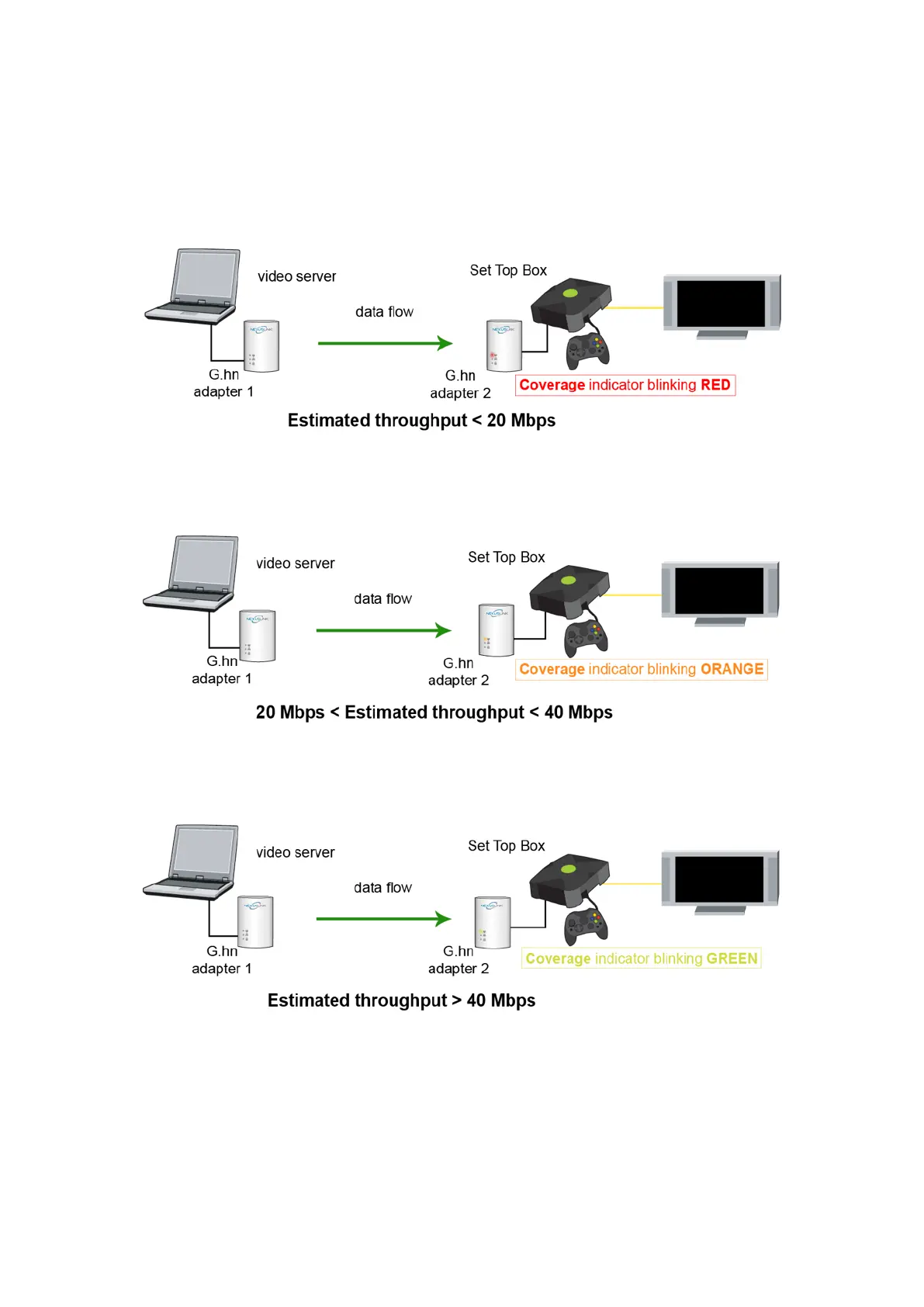

• CASE 1: Estimated throughput is less than 20 Mbps. The COVERAGE LED will be RED as shown in the
following figure:
• CASE 2: Estimated throughput is greater than 20 Mbps but less than 40 Mbps. The COVERAGE LED
will be ORANGE as shown in the following figure:
• CASE 3: Estimated throughput is greater than 40 Mbps. The COVERAGE LED will be GREEN as shown
here:
1.5 Point to Multipoint Network
In the case where the PLC network is composed of three or more adapters, similar situations could arise as
