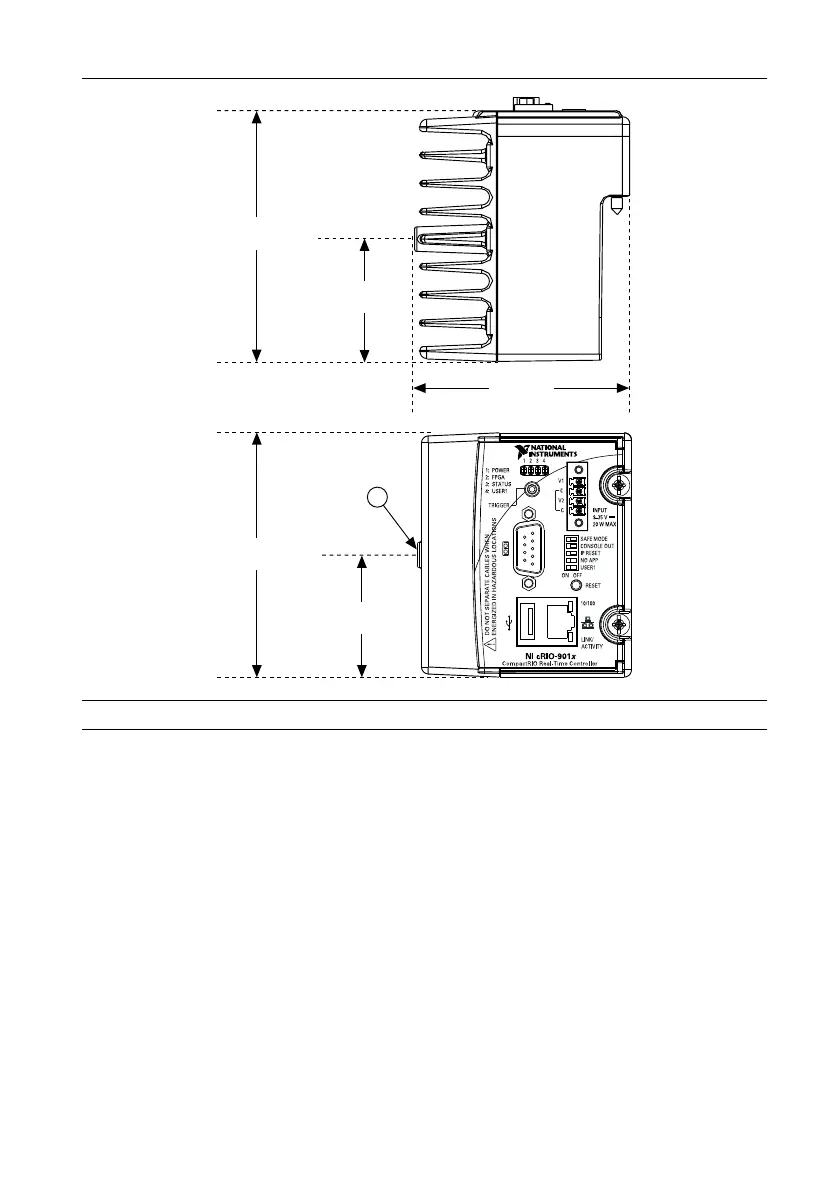

Figure 2. cRIO-9012/9014, Front and Bottom View with Dimensions
77.3 mm
(3.04 in.)
90.2 mm
(3.55 in.)
44.2 mm
(1.74 in.)
88.1 mm
(3.47 in.)
44.2 mm
(1.74 in.)
1
1. M4 Thread
Complete the following steps to install the controller on the chassis.
1. Make sure that no power is connected to the controller or the chassis.
2. Align the controller with the chassis as shown in the following figure.
