Nibe F1245 Service Manual

Other components
DescriptionComponent
1x230 V and 3x400 VImmersion heater (EB1)
White coil (1/3 kW), internal resistance: 55 ohm
Brown coils (3 x 2 kW), internal resistance: 27 ohm
3x230 V
White coil (3 kW), internal resistance 18 ohm
Red coil (2 kW), internal resistance 27 ohm
Brown coil (2 kW), internal resistance 27 ohm
Black coil (2 kW), internal resistance 27 ohm

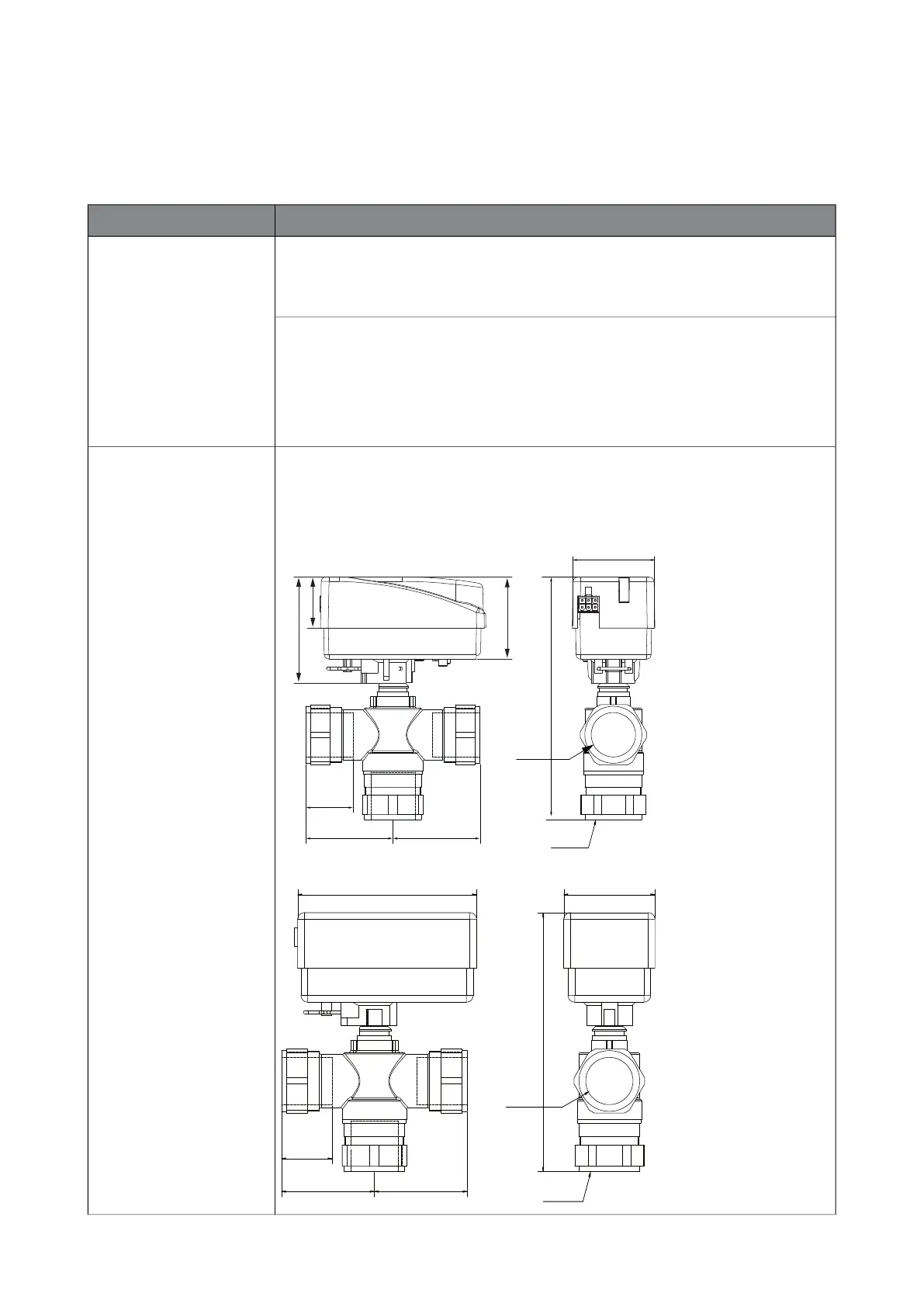

Actuator motor: 7 VA, 230/24 VAC, 50 Hz, IP 40. Running time approx 8 secondsReversing valve (QN10)
Max. operating pressure: 1.0 MPa
Operating temperature: 5 - 80 °C (90 °C briefly)
From September 2012
56 56
Ø28
30
54
142
Ø28
33
53,2
68,7
Before September 2012
56 56
Ø28
30
54
106
142
Ø28
21Chapter 5 | Component descriptionF1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
