Main components
Compressor (GQ10)

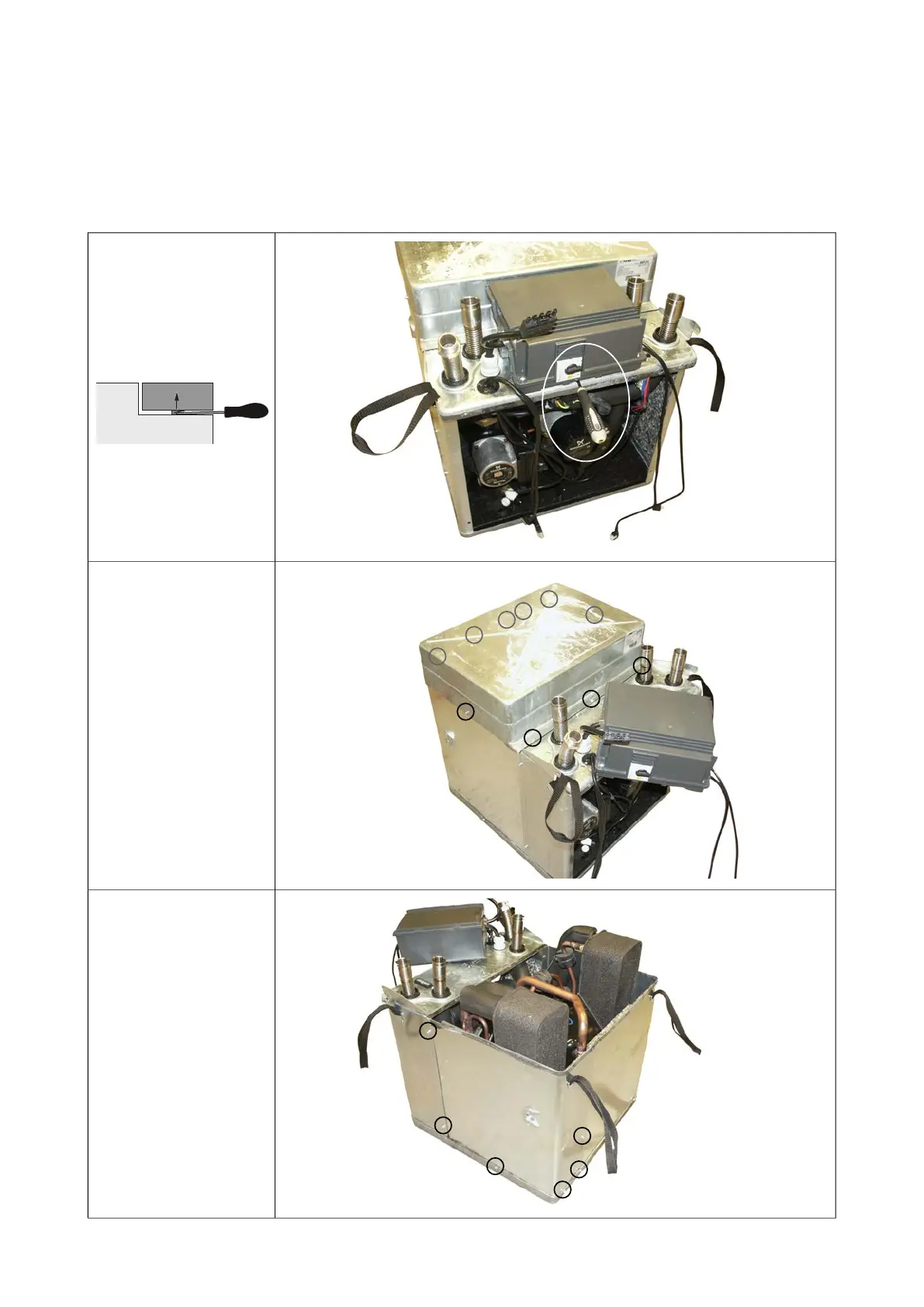

1 Remove the cooling mod-
ule according to the instruc-
tion on page 51.
2 Remove the motor module
by inserting a screwdriver
and carefully lifting the catch
as illustrated.
3 Slacken off 10 screws.
4 Remove the cover on the
cooling module.
5 Slacken off 6 screws.
6 Remove the right/rear side
panel on the cooling mod-
ule.
F1245Chapter 7 | Component replacement54
