Nibe F1245 Service Manual

Accessibility, electrical connection
The plastic cap of the electrical boxes is opened using a
screwdriver.
NOTE
The cover for the input card is opened without
a tool.

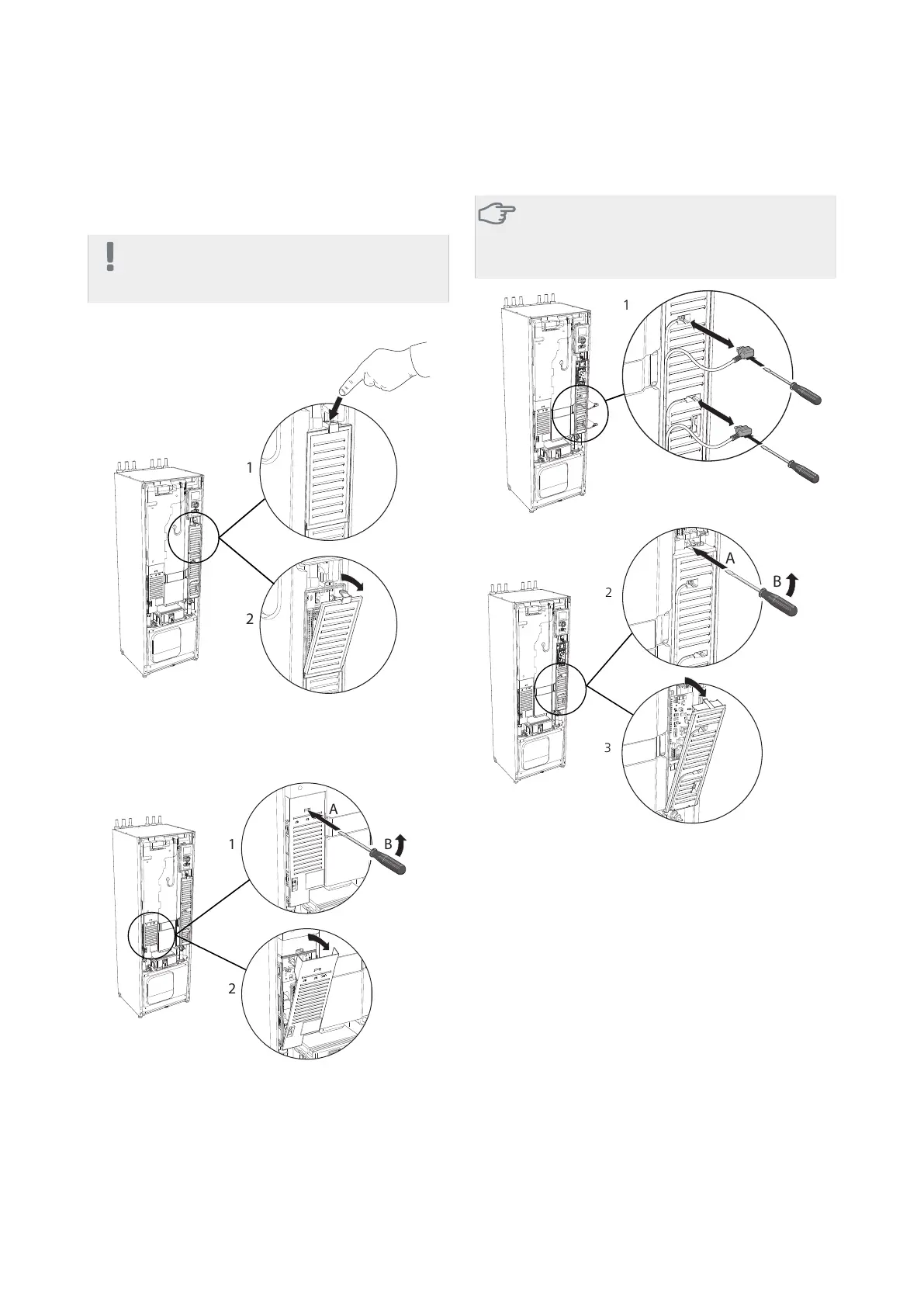

Removing the cover, input circuit board
LEK
1
2
1. Push the catch down.
2. Angle out the cover and remove it.
Removing the cover, immersion heater circuit board
LEK
1
2
A
B
1. Insert the screwdriver (A) and pry the catch carefully
downwards (B).
2. Angle out the cover and remove it.
Removing the cover, base board
Caution
To remove the cover for the base board, the
cover for the input circuit board must first be
removed.
LEK
1
LEK
1
A
B
2
2
3
1. Disconnect the switches using a screwdriver.
2. Insert the screwdriver (A) and pry the catch carefully
downwards (B).
3. Angle out the cover and remove it.
53Chapter 7 | Component replacementF1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
