Nibe F1245 Service Manual

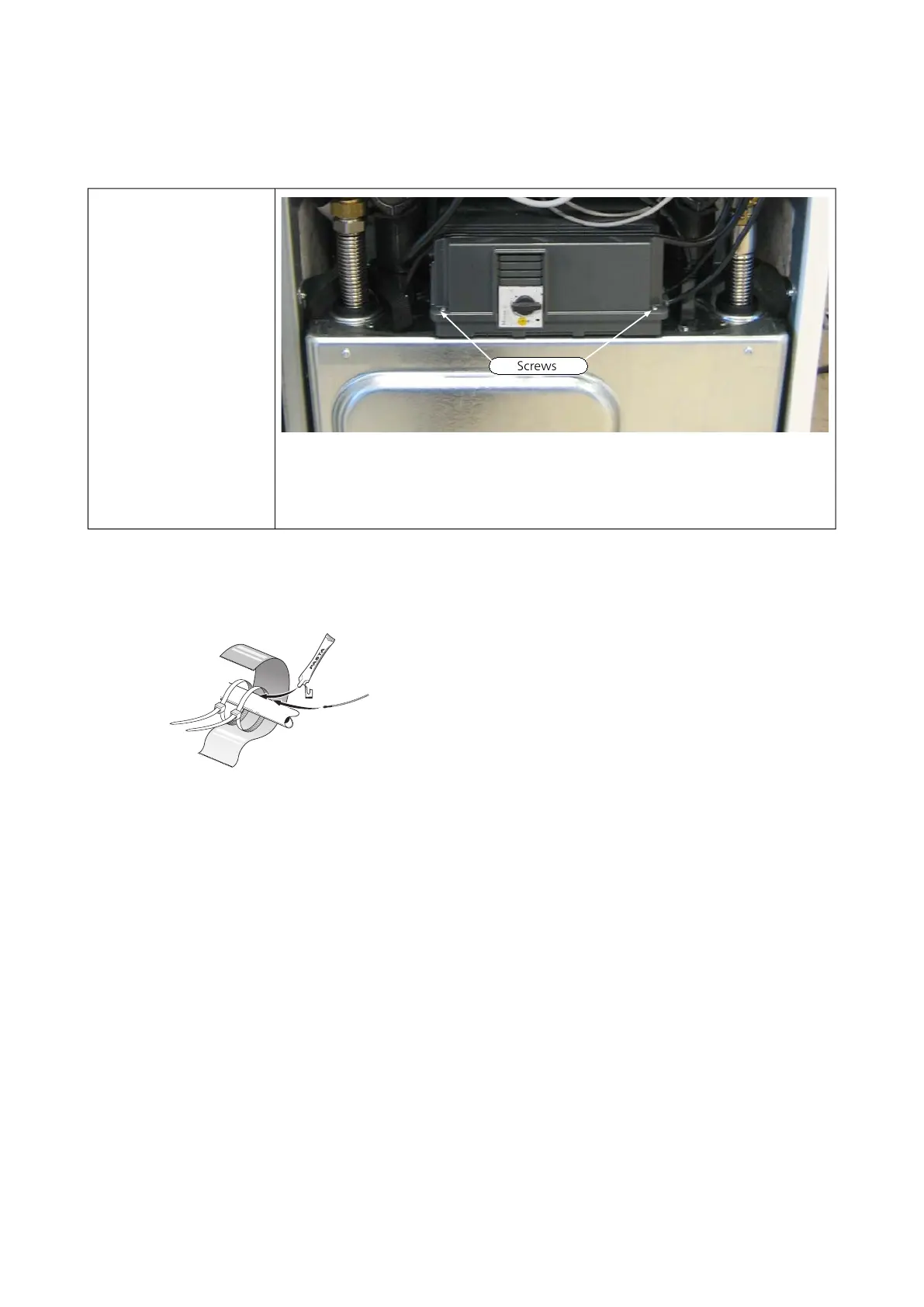

Soft-start card (QA30)
Screws
1 Remove the two screws in
the motor module.
2 Open the motor module.
3 Disconnect all cables.
4 Remove the soft-starter.
Temperature sensor
Mounting
LEK
LEK
E
Install the temperature sensor with cable ties with the
heat conducting paste and aluminium tape.
Then insulate with supplied insulation tape.
69Chapter 7 | Component replacementF1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
