Nibe F1245 - Technical Specifications; Dimensions and Setting-Out Coordinates

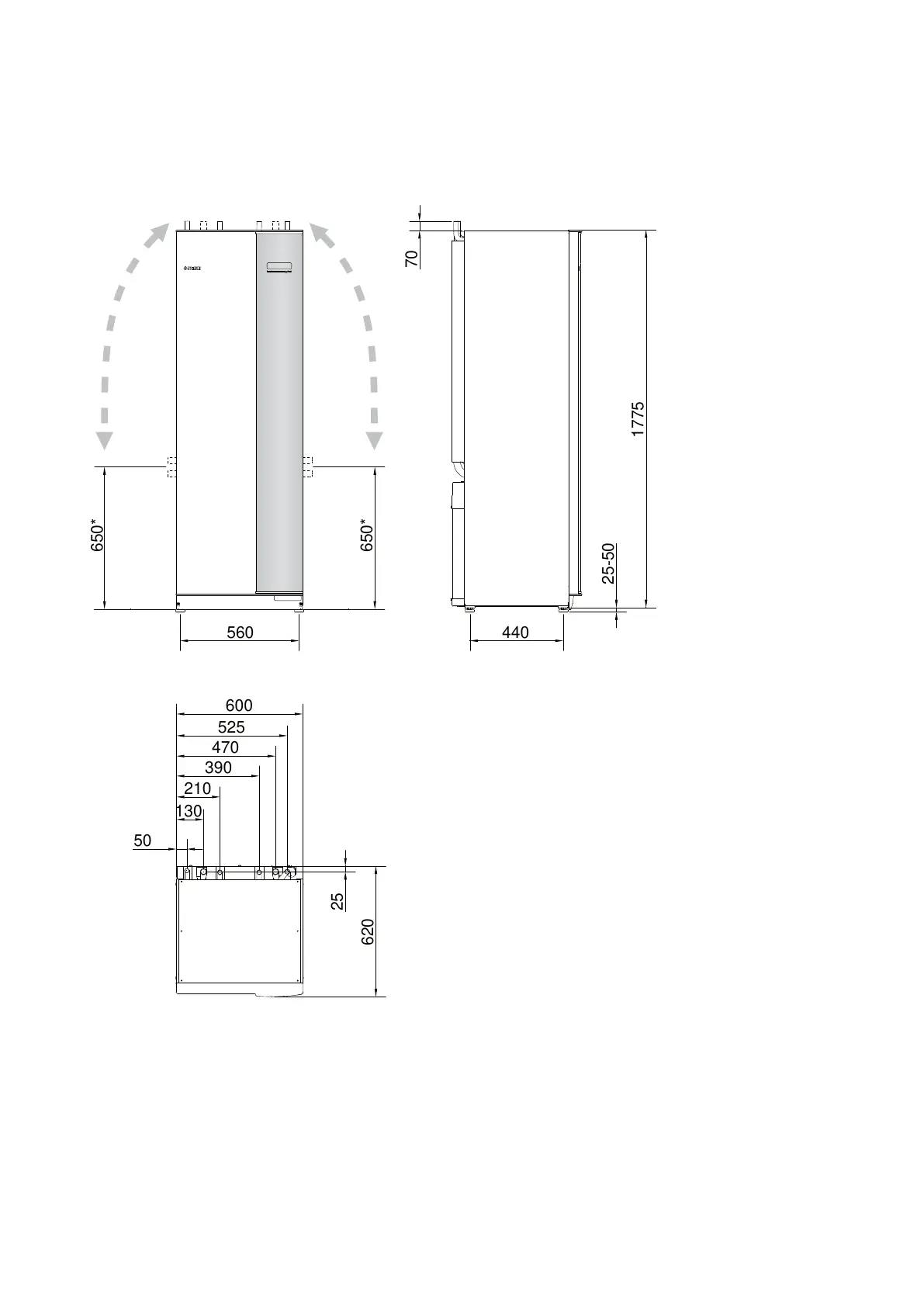

Dimensions and setting-out coordinates
620
600
560 440
70
1775
650*
25-50
25
50
130
210
390
470
525
650*
* This dimension applies at 90° angle on the brine pipes (side connection). The dimension can vary approx. ±100 mm in height as the
brine pipes partially consist of flexible pipes.
F1245Chapter 8 | Technical specifications70
8 Technical specifications
