Nibe F1245 Service Manual

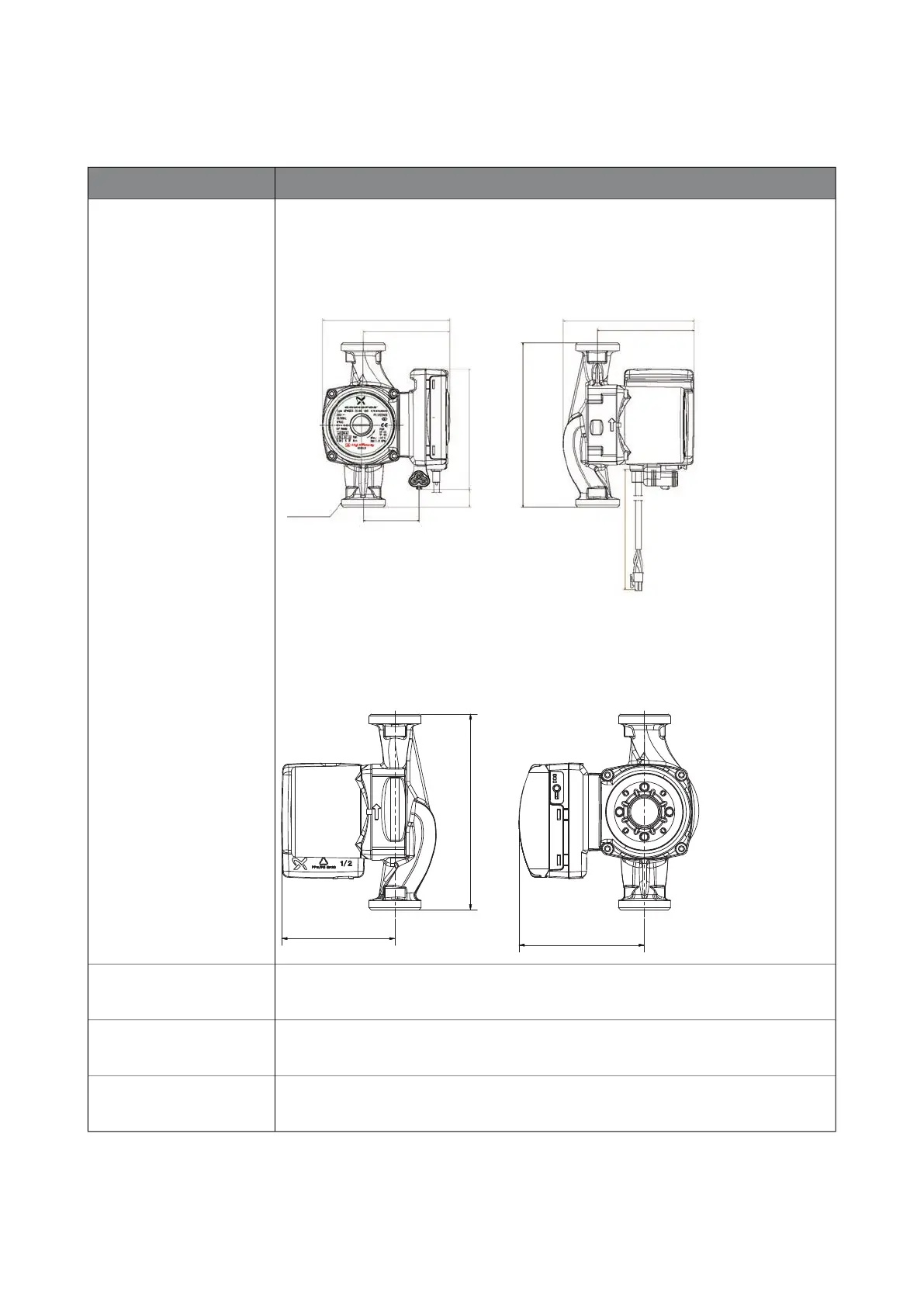

DescriptionComponent
5 - 8 kWBrine pump (GP2)
Grundfos UPM GEO
Max lift height: 8.5 m
Control signal: PWM 0-10 V DC (max-min speed)
94
138
19 132
61
800
106
143
180
G1 1/2
10 - 12 kW
Grundfos UPM XL
Max. lift height: 12 m
Control signal: PWM 0-10 V DC (max-min speed)
1
8
0
115
104
Breaking value: 29 barHigh pressure switch (BP1)
Reconnection differential: -7 bar
Breaking value: 1.5 barLow pressure switch (BP2)
Reconnection differential: 1.5 bar
Output (5-10): 30 WCompressor heater
Output (12-17): 40 W
23Chapter 5 | Component descriptionF1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
