Nibe F1245 Service Manual

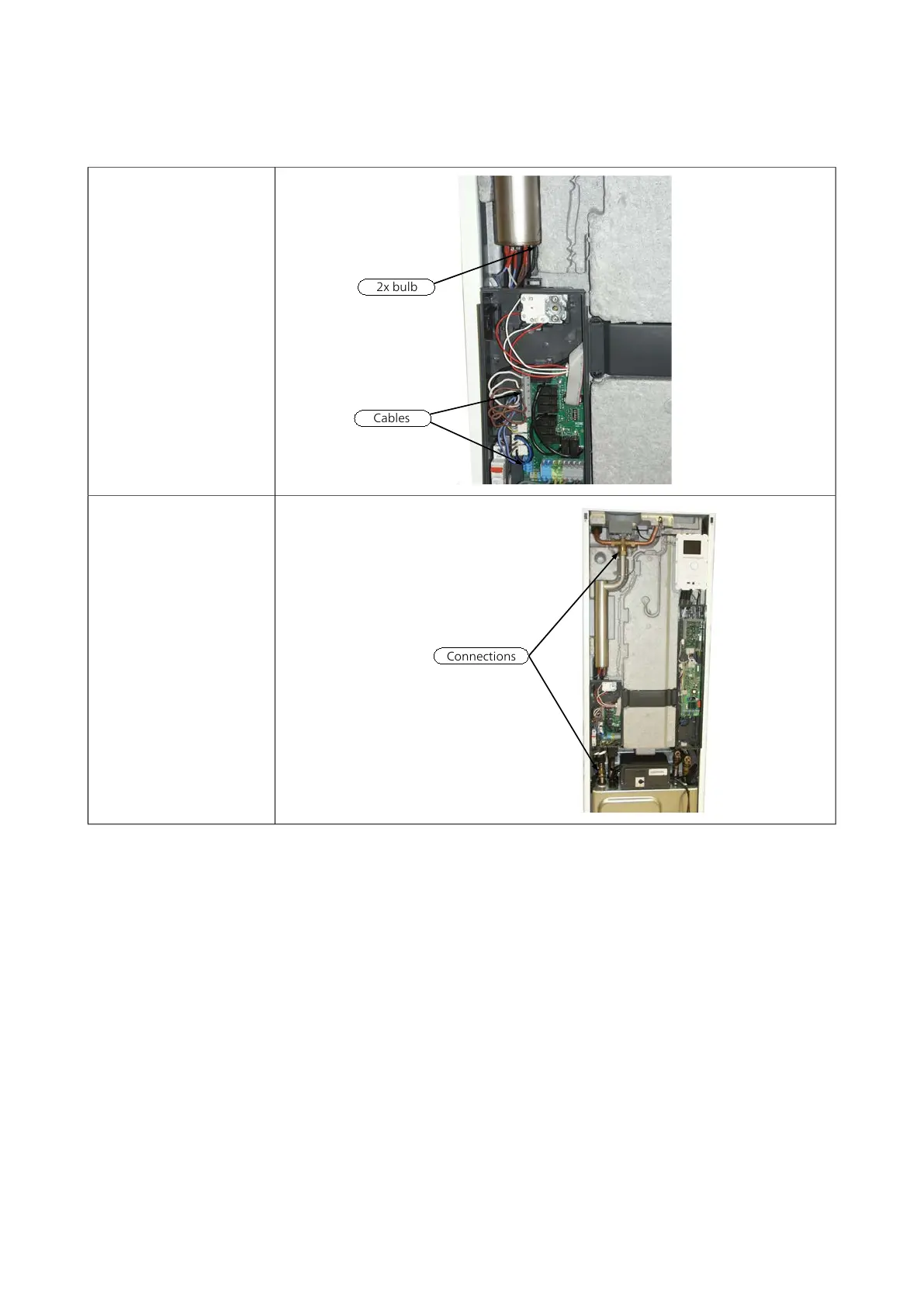

2x bulb
Cables
4 Ensure that the heat
pump is unpowered before
continuing.
5 Disconnect the 2 blue
cables, the 2 white and the
3 brown cables from the ter-
minal block X3 and X7 on
(AA1).
6 Pull out the two bulbs from
the immersion heater.
Connections
7 Disconnect the immersion
heater at the marked coup-
lings.
8 Remove the box for the
immersion heater circuit
board (AA1).
9 Remove the immersion
heater.
F1245Chapter 7 | Component replacement60

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
