Nibe F1245 Service Manual

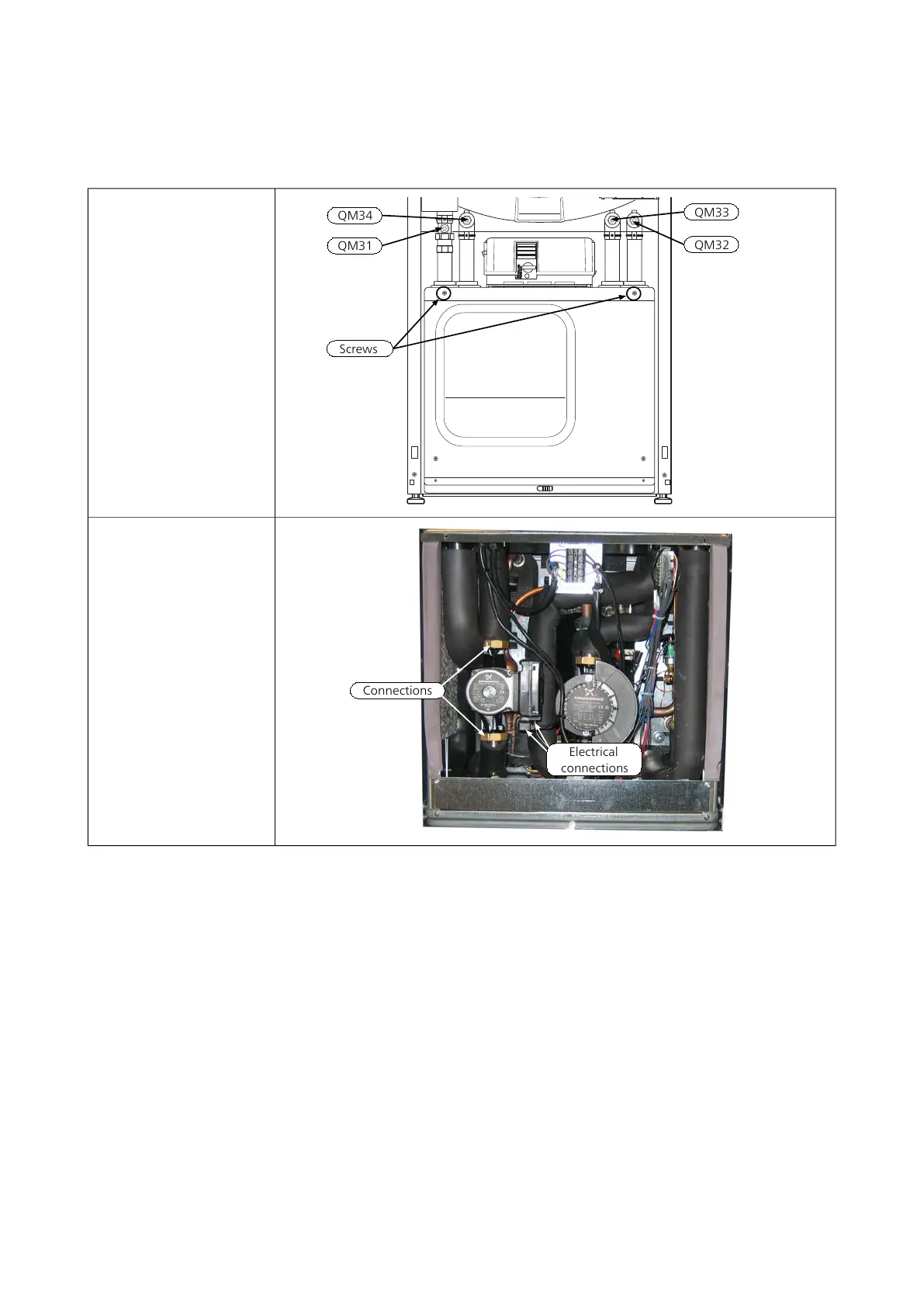

Heating medium pump (GP1)
F1245
QM31
QM34
QM33
QM32
Screws
1 Close the valves QM31,
QM32, QM33 and QM34.
2 Slacken off 2 x screws.
3 Remove the front hatch on
the cooling module.
4 Close the shut-off valves.
Electrical
connections
Connections
5 Remove the switch on the
circulation pump.
6 Disconnect the electrical
connector for the control
cable on the circulation
pump.
7 Release the pressure by
carefully opening the connec-
tions to the circulation
pump.
8 Disconnect and remove the
circulation pump.
63Chapter 7 | Component replacementF1245

Nibe F1245 Specifications

General

Refrigerant	R410A
Control System	NIBE SMO 40
Dimensions (HxWxD)	1800 x 600 x 620 mm
Energy Efficiency Class Heating 35°C	A++
Energy Efficiency Class Heating 55°C	A++
Heating Capacity	5-12 kW
COP Heating	4.5
Integrated Hot Water Tank	180 liters
Power Input Heating	1.0 - 3.0 kW
