47NIBE F1330
Installation / Adjustment
Description of functions – Expansion card 12
Quick guide – menu settings
cooling/heating modes with accumulators
Menu 9.1.10 Cooling [S]
The type of cooling system is set here. Selectable modes
are: ”PCAC 4pipes” “Off”, ”HPAC base card”, ”HPAC
expansion card 11”, ”Cooling accumulator”, “PKM 2
pipes” and “PKM 4 pipes”. The factory setting is “Off”.
Select “PCAC 4pipe”.
Menu 6.7.1 Cooling [N]
On/Off. Can also be switched on and off using the oper-
ating mode button.
Menu 6.7.7 Cooling curve [U]
The selected curve slope (cooling curve) is shown here.
The cooling curve can be set to 0 and calculated cooling
flow is then (independent of outdoor temp): min cool-
ing temp + offset cooling curve. The value is adjustable
between 0 and 3. Default values: 2
Menu 6.7.8 Offset cooling curve [U]
The selected cooling curve offset is shown here. The value
is adjustable between -10 and +10. Default values: 0.
Menu 6.7.9 Min. calc flow temp. [U]
The lowest cooling flow temperature in cooling mode is
set here. The value is adjustable between 0 and 30°C.
Default values: 25°C.
Menu 6.7.10 Starttemp. heating [U]
Outdoor temperature at which heating operation is
permitted. Can be crossed with start temp. cooling. The
value is adjustable between: -30°C and +40°C. Default
values: 20
Menu 6.7.11 Starttemp cooling [U]
Outdoor temperature at which cooling operation is
permitted. The value is adjustable between: -30°C and
+40°C. Default values: 25
Menu 6.7.22 Brinepump cont. cool [U]
Select if the Master’s brine pump is to be run intermit-
tently (3 of 15 min) in check mode. Default values: No.
Menu 6.7.23 Max compr. AC [U]
Select maximum number of compressors that may be
used to produce cooling. The value is adjustable be-
tween: 1 and all. Default values: all
Menu 6.7.24 Heatdump 24 h funct. [U]
Select if the heat dump must dump at max supply if there
has been a need for heating in the last 24 hours. Default
values: No.between 1 and 10. The factory setting is 1.

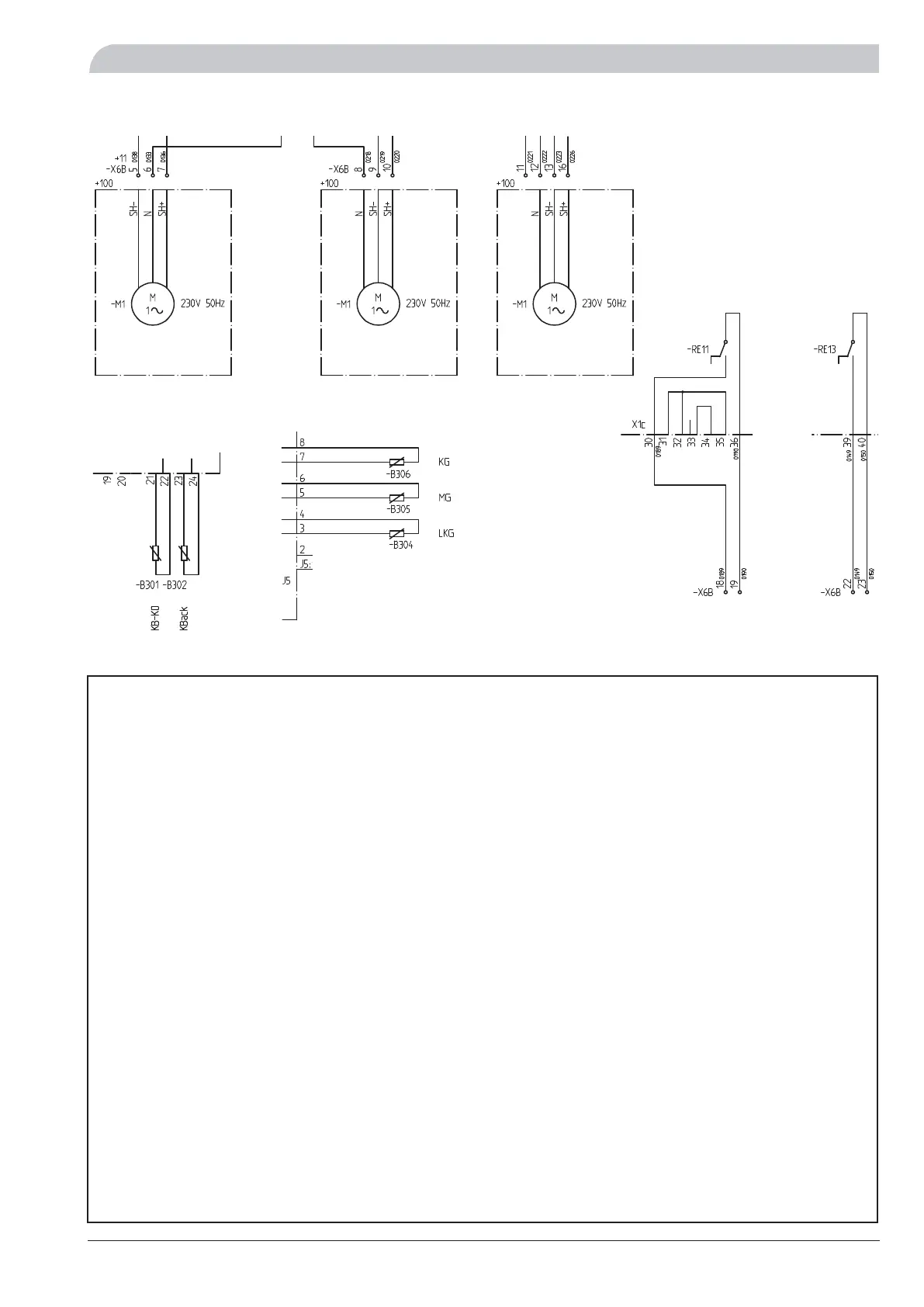

+Exp. card 12
+Measure card
SV-KDSV-KSV-VD
+Exp. card 12
+Measure card
J4
VD VXV-K / CP-K
