Nibe F2040 - The Heat Pump - The Heart of the House; Heat Pump Function

2
The heat pump – the heart of
the house

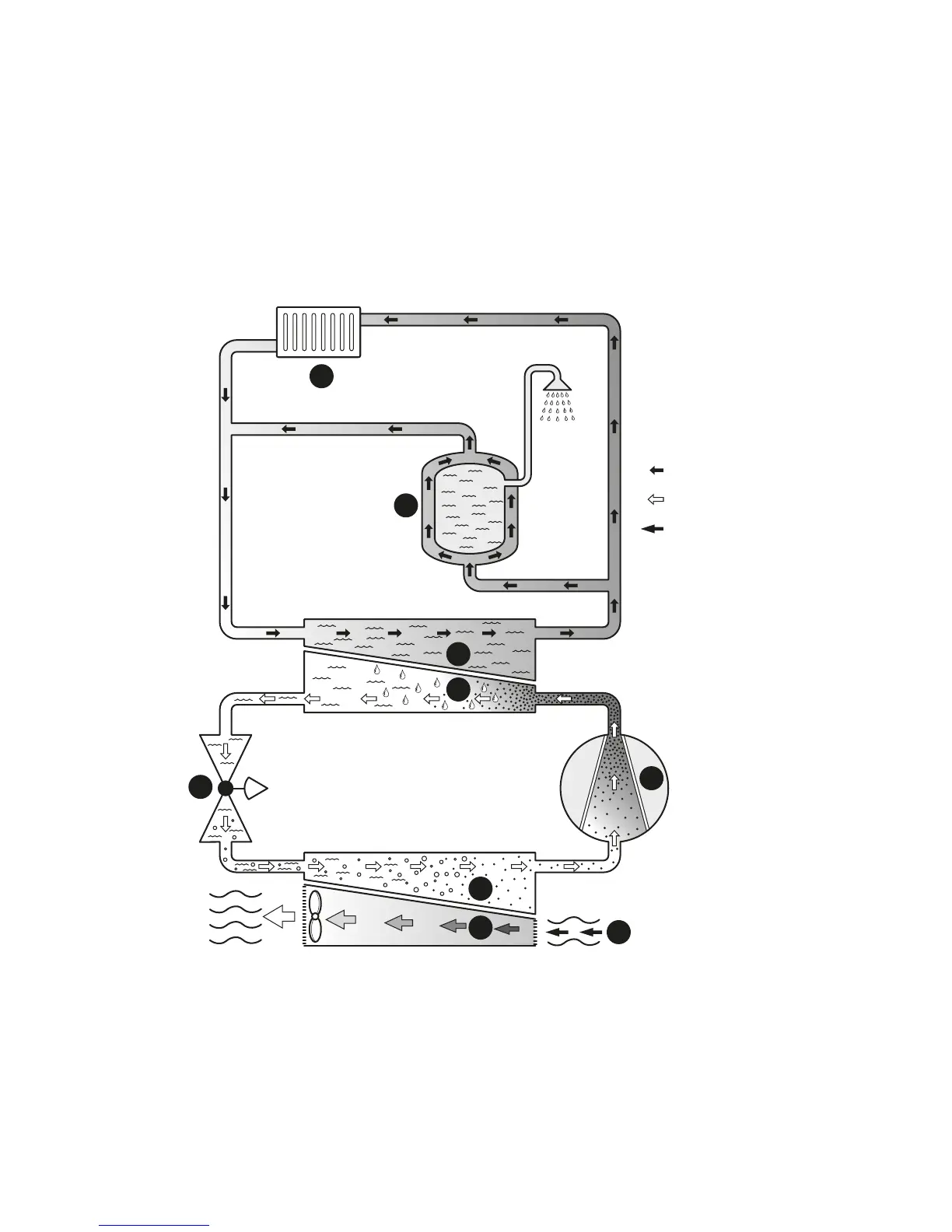

Heat pump function
Förångare
Kondensor
80 °C
2 °C-3 °C
5 °C 0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH



The temperatures are only examples and may vary between different installations and
time of year.
NIBE™ F2040Chapter 2 | The heat pump – the heart of the house10
