Nibe Fighter 1210 - Tap Water Connection; Ventilation Recovery; Free Cooling

Pipe connections
15
For the Installer
FIGHTER 1210
The installation can be supplemented with the exhaust
air module FLM 30 to provide ventilation recovery.
To avoid condensation, all pipes and other cold sur-
faces must be isolated with diffusion-proof material.
The heat pump should be supplemented with an elec-
tric water heater if a bubble pool or other significant
consumer of hot water is installed.

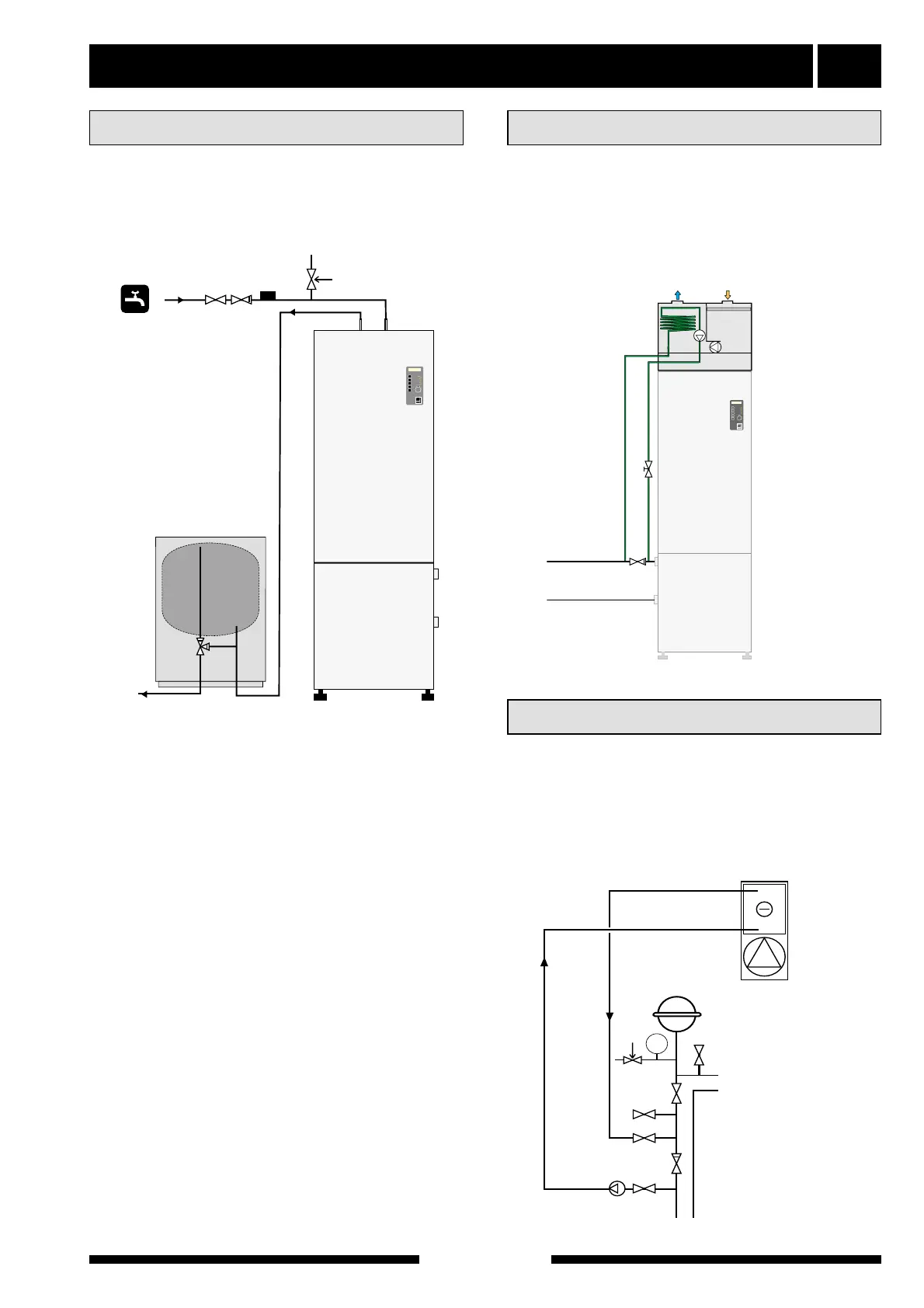

Tap water connection
The equipment can be supplemented with a fan coil
unit to make the connection of ambient cold possible.
To avoid condensation, all pipes and other cold sur-
faces must be isolated with diffusion-proof material.
Where the cooling demand is high, fan convectors
with drip trays and drain connection are needed.
Free cooling
Ventilation recovery
