Setting the heating controls 21
For the Installer
FIGHTER 1210
The heating control system of the FIGHTER 1210 is
controlled by the outside temperature. This means the
supply temperature is regulated in relation to the cur-
rent outdoor temperature.
The relationship between outside temperature and
flow temperature is set using the control computer;
see “Control” “Setting the heating”.
The diagram is based on the dimensioned outdoor
temperature in the area and the dimensioned supply
temperature of the heating system. When these two
values meet, the heating control’s curve slope can be
read.
The Increase/reduce heat knob (heating curve offset)
is then set. A suitable value for floor heating is -1 and
for radiator systems -2.

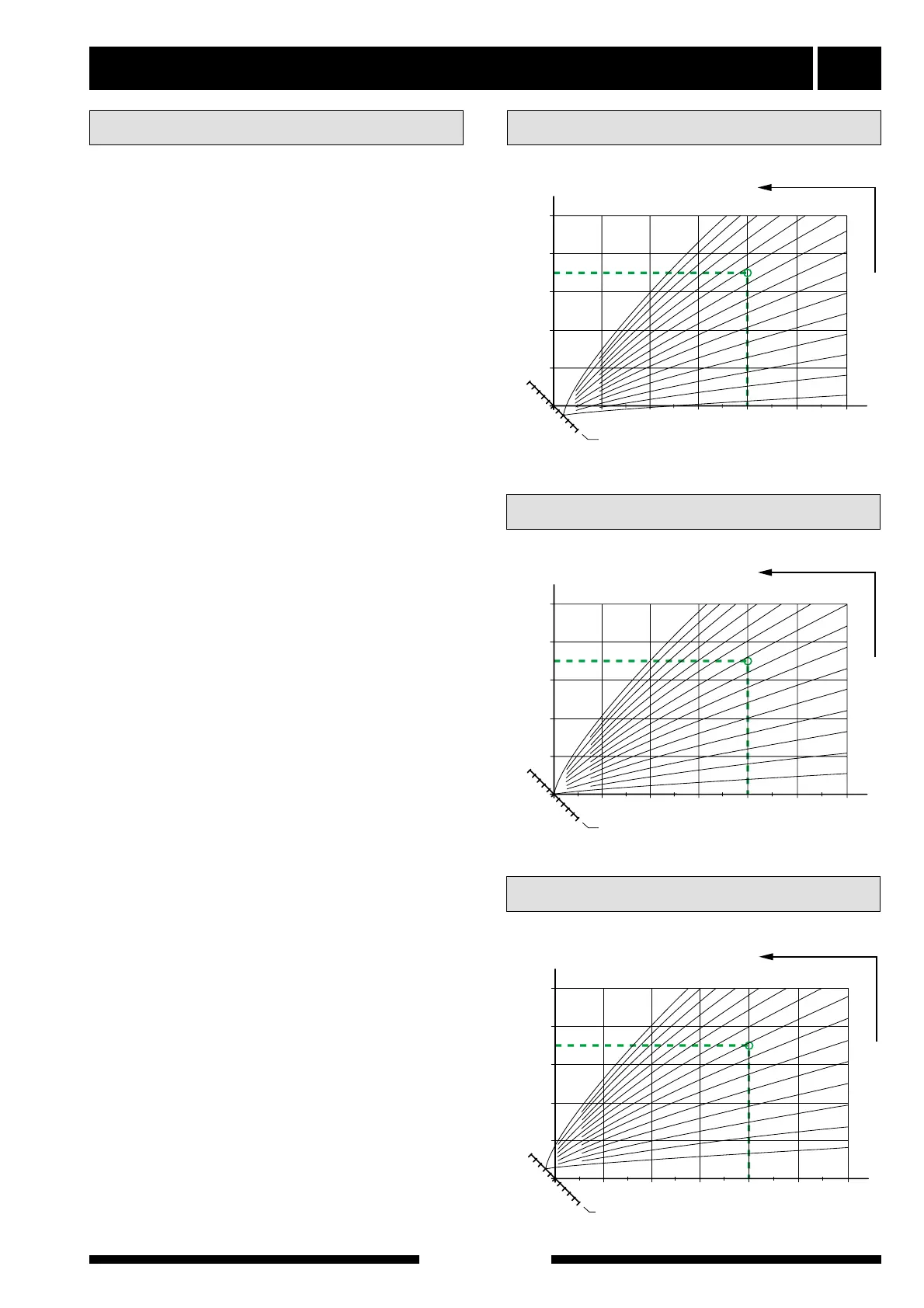

Offset heating curve -2Setting using diagrams
