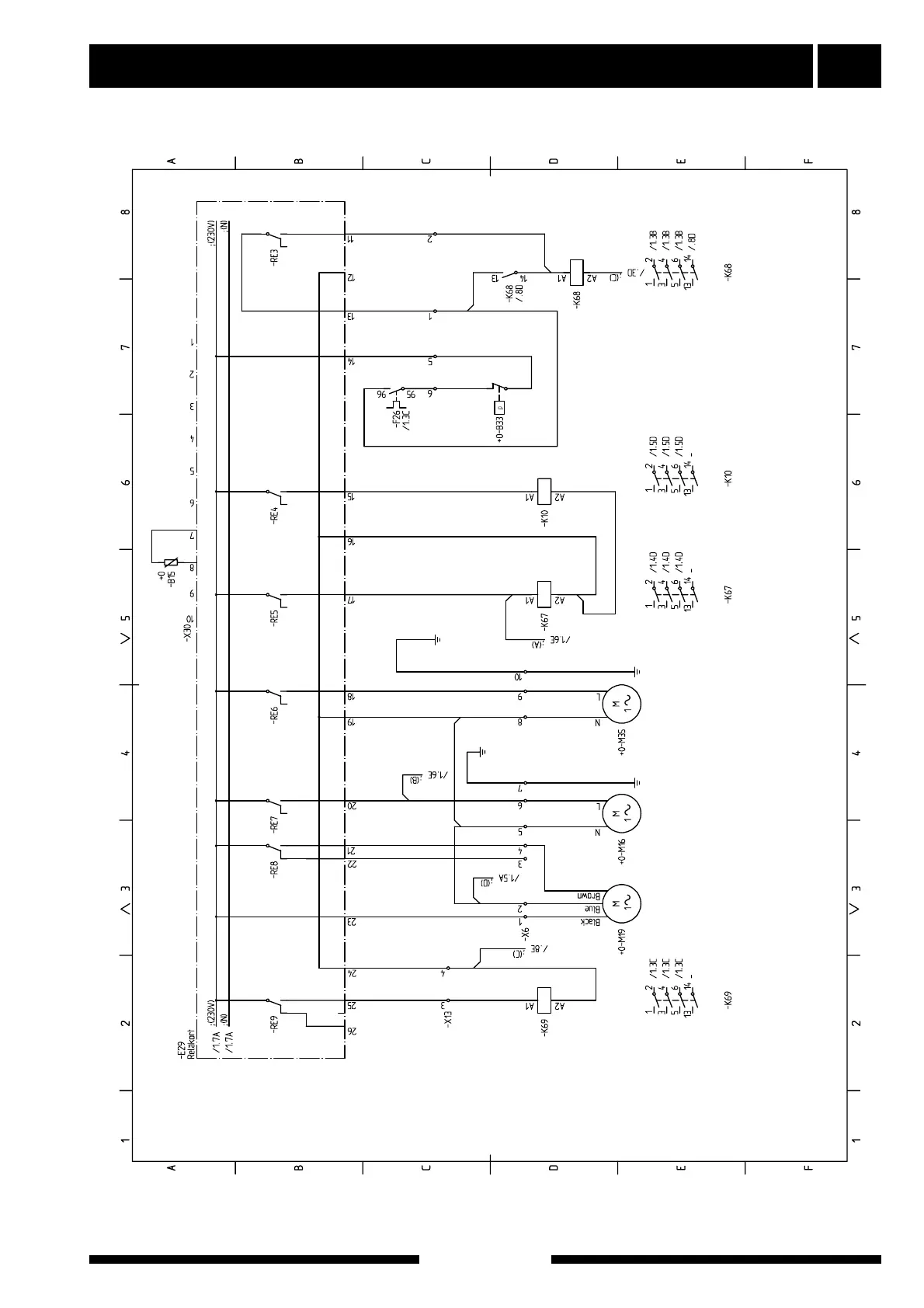

Electrical diagram 4 kW

27

For the Installer

FIGHTER 1210

Sheet 2 (2)

Relay card

Outside sensor

Compressor start

Immersion heater step 1

Immersion heater step 2

Brine pump

Heating medium pump

Reversing valve

Compressor operation
